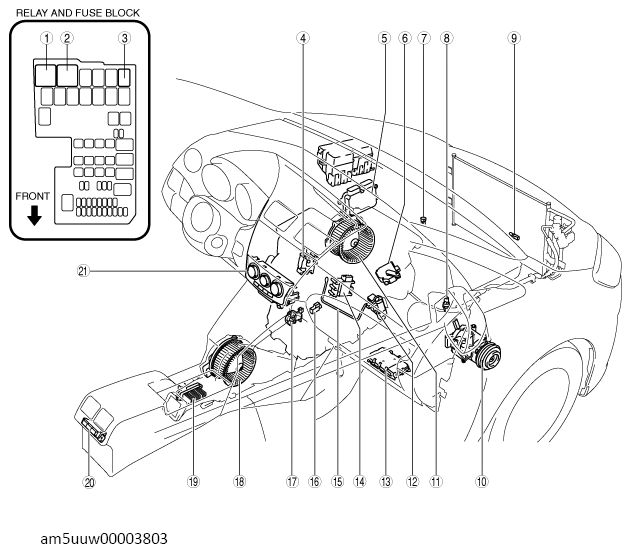

| 1 |
Blower relay No. 1
(See RELAY LOCATION
.)
(See RELAY INSPECTION
.) |
| 2 |
Blower relay No. 2
(See RELAY LOCATION
.)
(See RELAY INSPECTION
.) |
| 3 |
A/C relay
(See RELAY LOCATION
.) (See RELAY INSPECTION
.) |
| 4 |
Airflow mode actuator
(See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION (AUTO A/C) .) (See AIRFLOW MODE ACTUATOR INSPECTION (AUTO A/C) .) |
| 5 |
PCM
(See PCM REMOVAL/INSTALLATION
.)
(See PCM INSPECTION
.) (See PCM CONFIGURATION
.) |
| 6 |
Air intake actuator
(See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION (AUTO A/C) .) (See AIR INTAKE ACTUATOR INSPECTION (AUTO A/C) .) |
| 7 |
Solar radiation sensor
(See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION (AUTO A/C) .) (See SOLAR RADIATION SENSOR INSPECTION (AUTO A/C) .) |
| 8 |
Refrigerant pressure sensor
(See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION (AUTO A/C) .)
(See REFRIGERANT PRESSURE SENSOR INSPECTION (AUTO A/C) .) |
| 9 |
Ambient temperature sensor
(See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION (AUTO A/C) .)
(See AMBIENT TEMPERATURE SENSOR INSPECTION (AUTO A/C) .) |
| 10 |
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY (AUTO A/C) .) (See MAGNETIC CLUTCH ADJUSTMENT (AUTO A/C) .)
(See MAGNETIC CLUTCH INSPECTION (AUTO A/C) .) |
| 11 |
Front blower motor
(See FRONT BLOWER MOTOR REMOVAL (AUTO A/C) .) (See FRONT BLOWER MOTOR INSTALLATION (AUTO A/C) .)
(See FRONT BLOWER MOTOR INSPECTION (AUTO A/C) .) |
| 12 |
Front power MOS FET
(See FRONT POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION (AUTO A/C) .)
(See FRONT POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION (AUTO A/C) .) |
| 13 |
BCM
(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION
.) (See BODY CONTROL MODULE (BCM) INSPECTION
.) |
| 14 |
Air mix actuator
(See AIR MIX ACTUATOR REMOVAL/INSTALLATION (AUTO A/C) .) (See AIR MIX ACTUATOR INSPECTION (AUTO A/C) .) |
| 15 |
Evaporator temperature sensor
(See EVAPORATOR TEMPERATURE SENSOR REMOVAL/INSTALLATION (AUTO A/C) .)
(See EVAPORATOR TEMPERATURE SENSOR INSPECTION (AUTO A/C) .) |
| 16 |
Passenger compartment temperature sensor
(See PASSENGER COMPARTMENT TEMPERATURE SENSOR REMOVAL/INSTALLATION (AUTO A/C) .)
(See PASSENGER COMPARTMENT TEMPERATURE SENSOR INSPECTION (AUTO A/C) .) |
| 17 |
Rear vent actuator
(See REAR VENT ACTUATOR REMOVAL/INSTALLATION (AUTO A/C) .) (See REAR VENT ACTUATOR INSPECTION (AUTO A/C) .) |
| 18 |
Rear blower motor
(See REAR BLOWER MOTOR REMOVAL/INSTALLATION (AUTO A/C) .) (See REAR BLOWER MOTOR INSPECTION (AUTO A/C) .) |
| 19 |
Rear power MOS FET
(See REAR POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION (AUTO A/C) .)
(See REAR POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION (AUTO A/C) .) |
| 20 |
Rear fan switch
(See REAR FAN SWITCH REMOVAL/INSTALLATION (AUTO A/C) .)
(See REAR FAN SWITCH INSPECTION (AUTO A/C) .) |
| 21 |
Climate control unit
(See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION (AUTO A/C) .) (See CLIMATE CONTROL UNIT INSPECTION (AUTO A/C) .) |
