Ambient Temperature Sensor Removal/Installation (Auto A/C)

  1. Disconnect the negative battery cable.
  2. Remove the aerodynamic under cover. (See AERODYNAMIC UNDER COVER REMOVAL/INSTALLATION .)

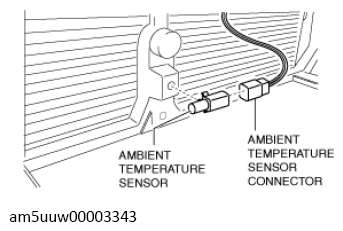

  3. Disconnect the ambient temperature sensor connector.
    G13728891Courtesy of MAZDA MOTORS CORP.
  4. Remove the ambient temperature sensor.
  5. Install in the reverse order of removal.
