Climate Control Unit Removal/Installation (Auto A/C)

CAUTION:

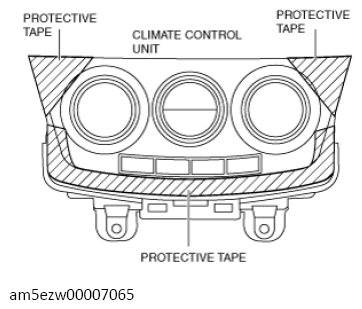

• Affix protective tape to the position shown in the figure to prevent damage.

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the negative battery cable.
2. Remove the following parts:
   1. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
   2. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
   3. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
   4. Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
   5. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
   6. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
   7. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
   8. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)

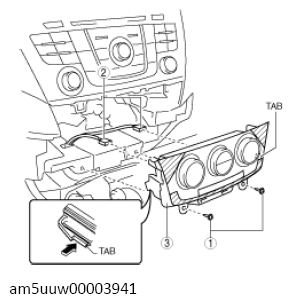

3. Release the left and right tabs and remove as shown in the figure.

   Courtesy of MAZDA MOTORS CORP.

   PART DESCRIPTION



   1	Screw
   2	Climate control unit connector
   3	Climate control unit

4. Install in the reverse order of removal.
