Solar Radiation Sensor Inspection (Auto A/C)

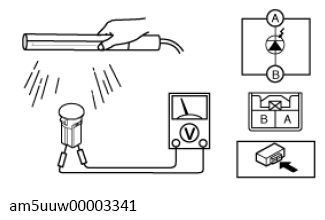

  1. Shine a fluorescent light or expose the solar radiation sensor to natural sunlight.
  2. Connect the positive (+) lead to terminal A and negative (-) lead to terminal B of the solar radiation, and verify that the voltage value is output.
    G13728948Courtesy of MAZDA MOTORS CORP.
    • If the voltage is 0 V, replace the solar radiation sensor.
