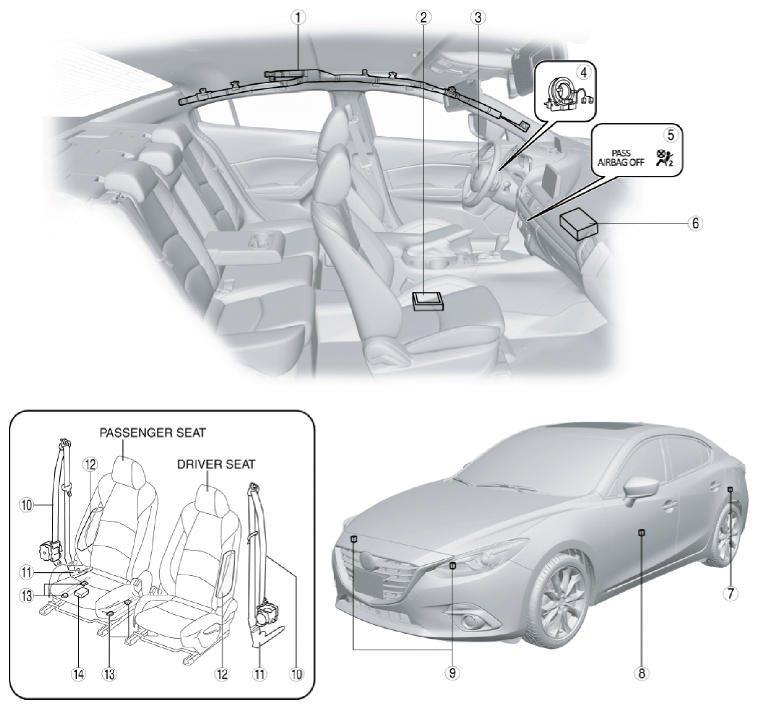

| 1 |
Curtain air bag module
(See CURTAIN AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
(See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) |
| 2 |
SAS control module
(See SAS CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
(See SAS CONTROL MODULE CONNECTOR COVER REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
(See SAS CONTROL MODULE CONFIGURATION (USING READ/WRITE FUNCTION) [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
(See SAS CONTROL MODULE CONFIGURATION (USING AS-BUILT DATA) [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) |
| 3 |
Driver-side air bag module
(See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
(See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
(See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) |
| 4 |
Clock spring
(See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
(See CLOCK SPRING ADJUSTMENT [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
(See CLOCK SPRING INSPECTION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) |
| 5 |
Passenger air bag deactivation (PAD) indicator light
(See PASSENGER AIR BAG DEACTIVATION (PAD) INDICATOR LIGHT REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) |
| 6 |
Passenger-side air bag module
(See PASSENGER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
(See PASSENGER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
(See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) |
| 7 |
Side air bag sensor
(See SIDE AIR BAG SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) |
| 8 |
Pressure sensor
(See PRESSURE SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) |
| 9 |
Crash zone sensor
(See CRASH ZONE SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) |
| 10 |
Pre-tensioner seat belt
(See FRONT SEAT BELT REMOVAL/INSTALLATION
.)
(See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) |
| 11 |
Lap pre-tensioner seat belt
(See FRONT SEAT BELT REMOVAL/INSTALLATION
.)
(See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) |
| 12 |
Side air bag module
(See SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
(See AIR BAG MODULE AND PRE-TENSIONER SEAT BELT DEPLOYMENT PROCEDURES [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) |
| 13 |
Seat weight sensor
(See SEAT WEIGHT SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
(See SEAT WEIGHT SENSOR CALIBRATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
(See SEAT WEIGHT SENSOR INSPECTION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) |
| 14 |
Seat weight sensor control module
(See SEAT WEIGHT SENSOR CONTROL MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) |
