Driver-Side Air Bag Module Removal [Two-Step Deployment Control System]

WARNING:

• Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (Refer to AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (Refer to AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
• Due to the adoption of 2-step deployment control in the driver-side air bag module, depending on the impact force, it is possible that inflator No. 2 might not deploy. In such cases, before disposing of the air bag module, make sure to follow the inflator deployment procedures and verify complete deployment of inflators No. 1 and 2.

NOTE:

• The driver-side air bag module is installed to the steering wheel by the following connections.
  • Driver-side air bag module tab A and steering wheel hook A
  • Driver-side air bag module tab B and steering wheel hook B
  • Driver-side air bag module tab C and steering wheel hook C
  • Spring and steering wheel hook D
  • Spring and steering wheel hook E

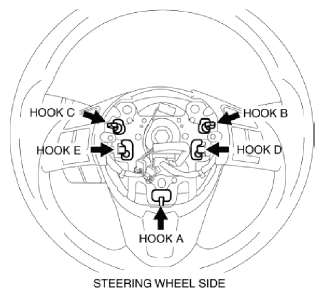

Fig 1: Locating Spring And Steering Wheel Hook (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Locating Spring And Steering Wheel Hook (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

1. Switch the ignition off.
2. Disconnect the negative battery cable and wait for 1 min or more  . (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
3. Lower the steering wheel to the bottommost position.
4. Pull the steering wheel to furthest position rearward.
5. Verify the service hole on the back side of the steering wheel.
   Fig 3: Identifying Service Hole On Back Side Of Steering Wheel

   Courtesy of MAZDA MOTORS CORP.
6. Insert the tool from the service hole.
   Fig 4: Inserting Tool From Service Hole

   Courtesy of MAZDA MOTORS CORP.

   Recommended tool

   • TORX driver (T30 (diam. 6))
7. Insert the tool in the direction of the arrow shown in the figure and disengage driver-side air bag module tab A from steering wheel hook A.

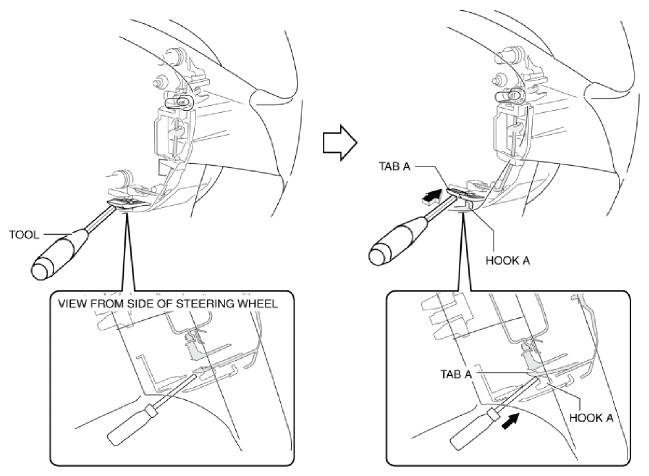

   Fig 5: Disengaging Driver-Side Air Bag Module Tab A From Steering Wheel Hook A

   Courtesy of MAZDA MOTORS CORP.
8. Rotate the steering wheel until the service hole can be Refer ton from behind the steering wheel.
   Fig 6: Rotating Steering Wheel Until Service Hole From Steering Wheel

   Courtesy of MAZDA MOTORS CORP.
9. Insert the tool from the service hole.
   Fig 7: Inserting Tool From Service Hole

   Courtesy of MAZDA MOTORS CORP.
10. Insert the tool in the direction of the arrow shown in the figure and disengage driver-side air bag module tab B from steering wheel hook B.
    NOTE:

    • By moving the tool, the spring is pressed at the same time allowing the spring to be removed from steering wheel hook D.

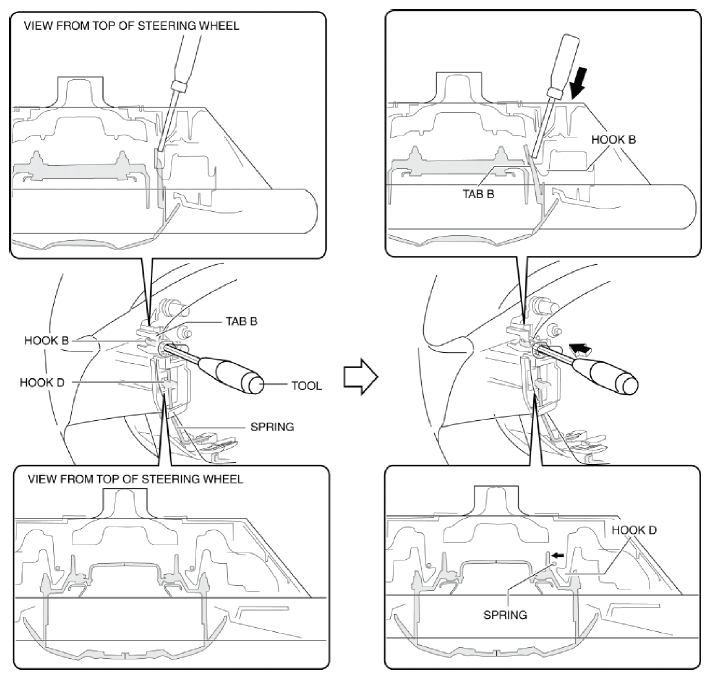

    Fig 8: Disengaging Driver-Side Air Bag Module Tab B From Steering Wheel Hook B

    Courtesy of MAZDA MOTORS CORP.
11. Rotate the steering wheel until the service hole can be Refer ton from behind the steering wheel.
    Fig 9: Rotating Steering Wheel Until Service Hole From Steering Wheel

    Courtesy of MAZDA MOTORS CORP.
12. Insert the tool from the service hole.
    Fig 10: Inserting Tool From Service Hole

    Courtesy of MAZDA MOTORS CORP.
    CAUTION:

    • The driver-side air bag module could be damaged if it is dropped while it is completely disengaged from the steering wheel. Hold the driver-side air bag module securely with a hand while it is completely disengaged.
13. Insert the tool in the direction of the arrow shown in the figure and disengage driver-side air bag module tab C from steering wheel hook C.
    NOTE:

    • By moving the tool, the spring is pressed at the same time allowing the spring to be removed from steering wheel hook E.

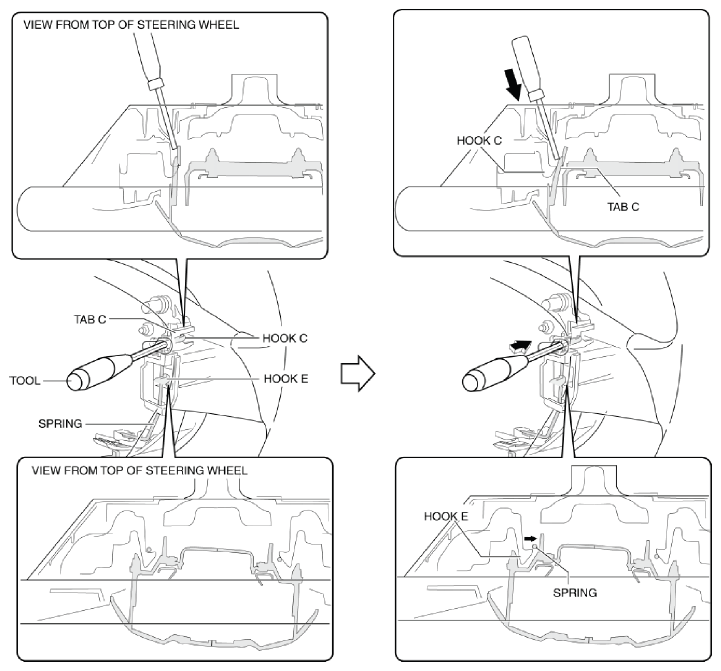

    Fig 11: Disengaging Driver-Side Air Bag Module Tab C From Steering Wheel Hook C

    Courtesy of MAZDA MOTORS CORP.
14. Remove the air bag module from the steering wheel.
15. Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

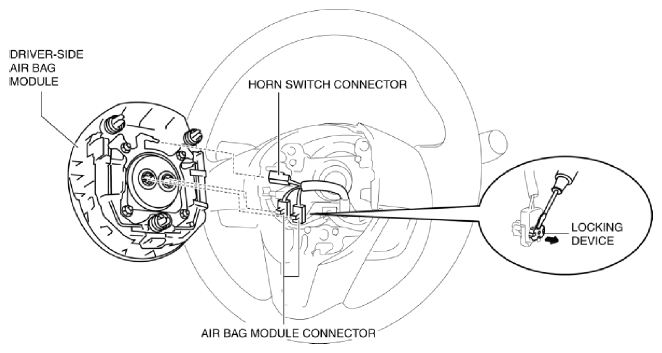

    Fig 12: Lifting Locking Device

    Courtesy of MAZDA MOTORS CORP.
16. Disconnect the air bag module connector.
17. Disconnect the horn switch connector.
18. Remove the driver-side air bag module.
