Clock Spring Adjustment [Two-Step Deployment Control System]

Set the front wheels straight ahead.
CAUTION:
- The clock spring will break if over-wound. Do not forcibly turn the clock spring.
Turn the clock spring clockwise until it stops.

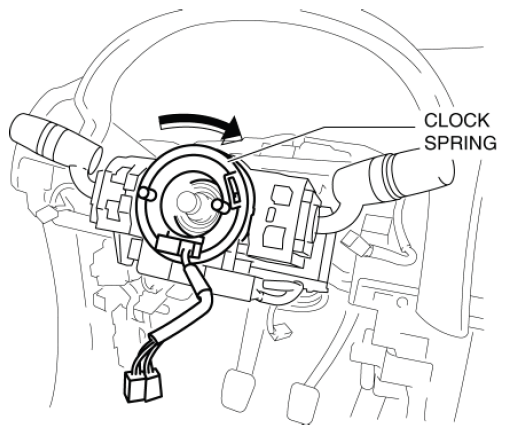

Fig 1: Turning Clock Spring Clockwise
Courtesy of MAZDA MOTORS CORP.
Turn the clock spring counterclockwise approx. 2 turns .

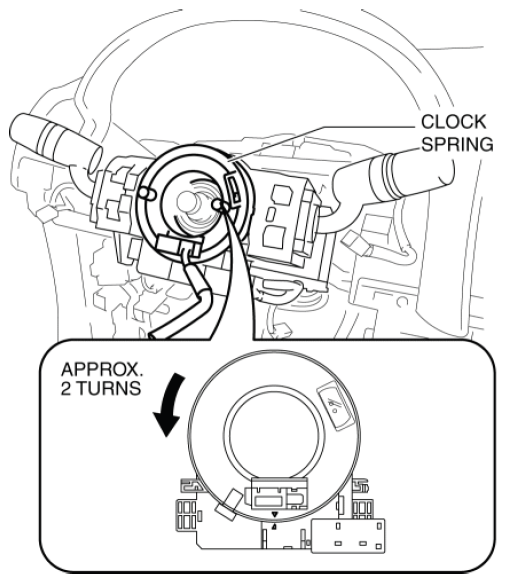

Fig 2: Turning Clock Spring Counterclockwise
Courtesy of MAZDA MOTORS CORP.
Align the mark on the clock spring with the mark on the outer housing.

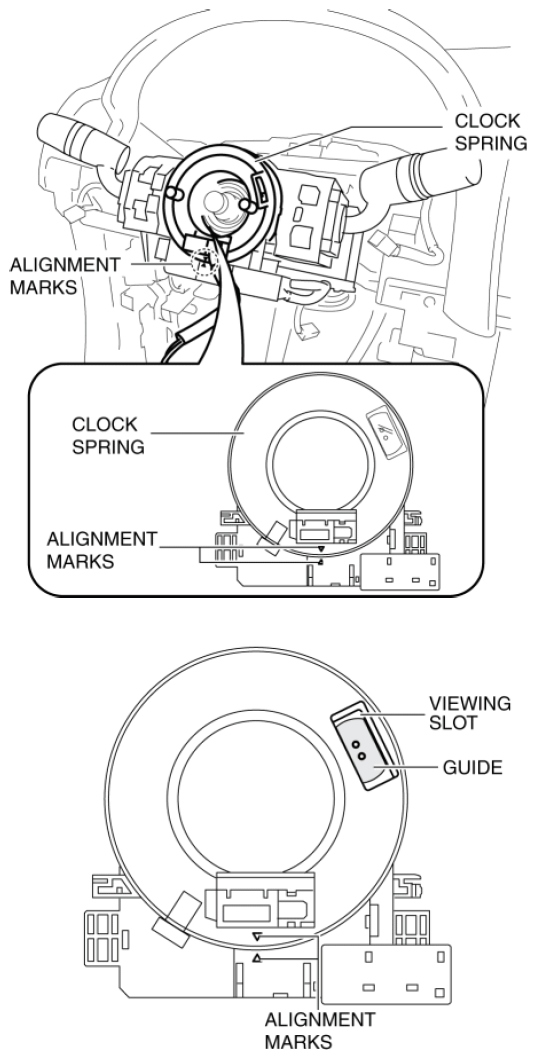

Fig 3: Aligning Mark On Clock Spring With Mark On Outer Housing
Courtesy of MAZDA MOTORS CORP.
NOTE:
- After adjusting the alignment marks, the guides can be verified in the viewing slots shown in the figure.
