Liftgate Outside Handle Replacement (Acadia, Traverse)

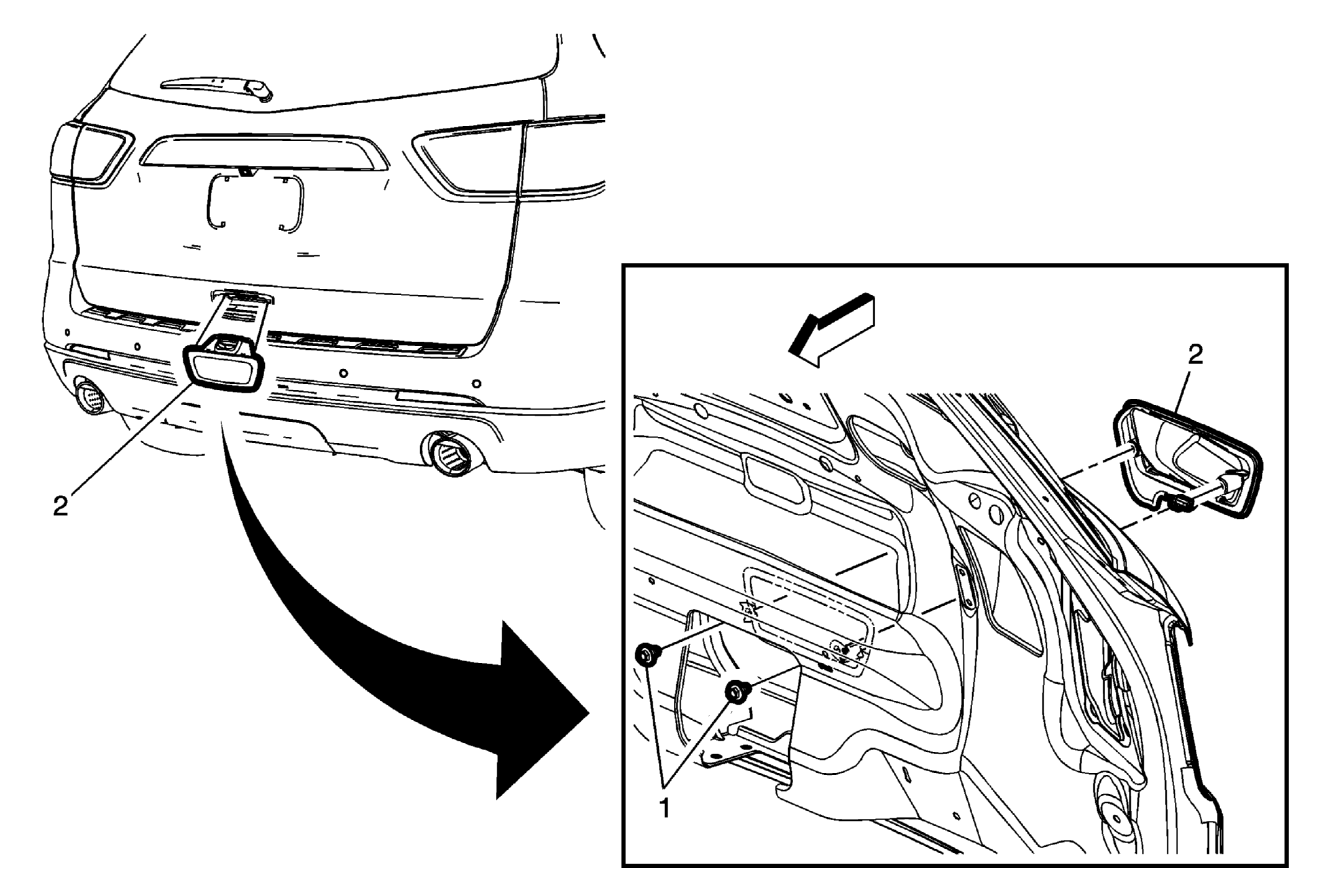

Fig 1: Liftgate Outside Handle (Acadia, Traverse)

GM2889337

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the liftgate trim panel. Refer to Liftgate Trim Panel Replacement (Traverse)Liftgate Trim Panel Replacement (Acadia) .

1

Liftgate Outside Handle Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Liftgate Outside Handle

Procedure

Disconnect the electrical connector.
Transfer the liftgate release switch if needed. Refer to Liftgate Release Switch Replacement Liftgate Release Switch Replacement (Acadia, Enclave) .
