Liftgate Release Switch Replacement (Acadia, Enclave)

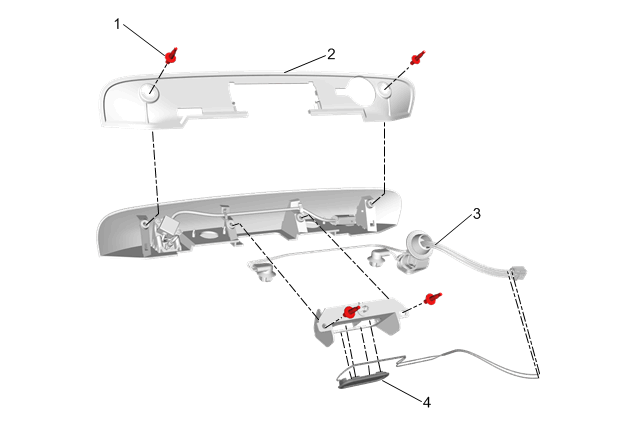

Fig 1: Liftgate Release Switch (Acadia, Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Liftgate Applique Replacement (Acadia) .
1	Double Ended Stud with Collar (Qty: 4) NOTE: Remove stud in order to remove the isolator and liftgate switch from the applique.
2	Liftgate Applique Isolator NOTE: Carefully release the isolator tab from the liftgate applique.
3	Rear License Plate Lamp
4	Liftgate Release Switch Procedure Release the liftgate release switch tabs. Splice the new switch into the rear licence plate lamp. Wire to Wire Repair Ensure the electrical harness is properly positioned prior to installation of the liftgate applique isolator.
