Liftgate Trim Panel Replacement (Traverse)

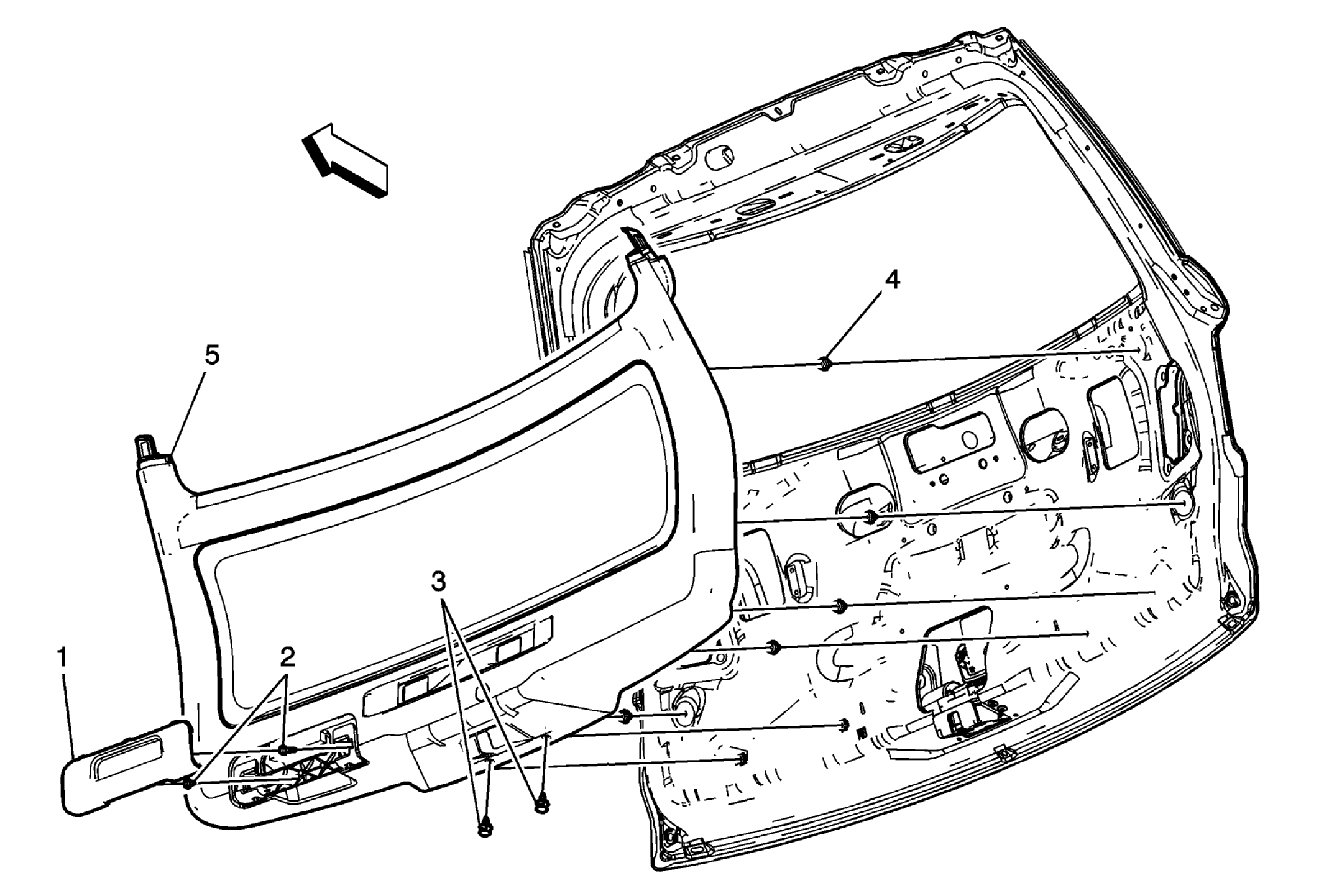

Fig 1: Liftgate Trim Panel (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the liftgate window garnish molding. Refer to Liftgate Garnish Molding Replacement (TB5) Liftgate Garnish Molding Replacement (TB4) .
1	Liftgate Inside Pull Handle Cover
2	Liftgate Trim Finish Panel Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
3	Liftgate Trim Finish Panel Push Pin Retainer (Qty: 2)
4	Liftgate Trim Finish Panel Retainer (Qty: 6)
5	Liftgate Trim Finish Panel Assembly Procedure Use a trim panel removal tool to aid in the removal of the trim panel from the liftgate assembly. Disconnect the electrical connector, if equipped.
