Installation Procedure

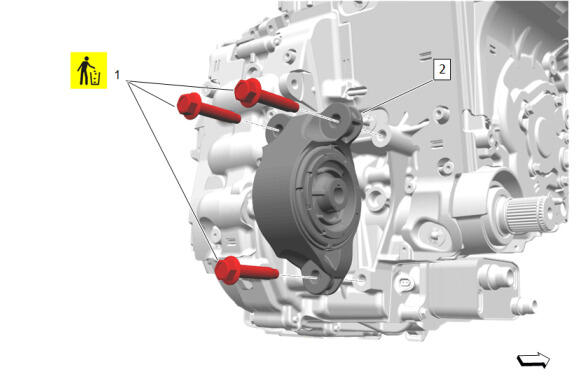

  1. GM6481943Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Rear Mount (2) - Install

    2. CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

    CAUTION:

    Refer to Fastener Caution

  2. Drive Motor Rear Mount Bolt-M12 x 60.9 (1) - Install NEW and tighten [3x] - Fastener Specifications

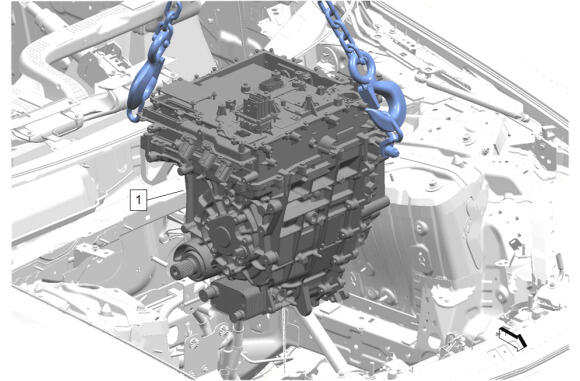

  3. GM6013380Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    The transmission may weigh in excess of 215 kg (475 lbs), either by itself or in combination with additional components, use extreme care when installing, removing, or moving the transmission. Assistance from a hoist and/or an assistant may be required.

    • Ensure that lifting equipment can properly support the transmission and any additional components.
    • Ensure rigging applies vertical force to the lifting points and never horizontal.
    • The use of a load leveler is recommended.

    Failure to follow these guidelines can result in personal injury and/or component damage.

    CAUTION:

    Prior to installing an electric drive transmission, make sure the shipping lifting brackets are removed from the transmission. Failure to remove the shipping lifting brackets can cause damage to the vehicle.

    Install the front electric drive transmission module (1).

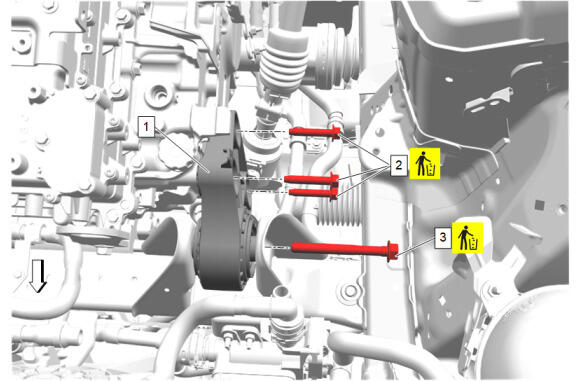

  4. GM6013356Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Mount (1) - Install

    5. CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

  5. Drive Motor Mount Bolt (2) - Install NEW and tighten [3x] - Fastener Specifications
    6. CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

  6. Drive Motor Mount Bolt (3) - Install NEW and tighten - Fastener Specifications
  7. Connect the wiring harness retainers as necessary.

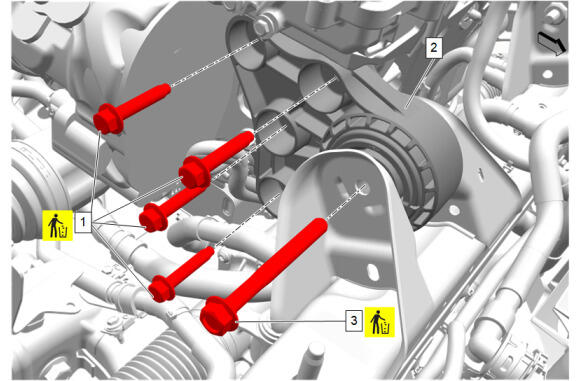

  8. GM6013458Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Drive Motor Mount (2) - Install

    9. CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

  9. Drive Motor Mount Bolt (1) - Install NEW and tighten - Fastener Specifications  [4x]
  10. Drive Motor Mount Bolt (3) - Install NEW and tighten - Fastener Specifications
  11. Connect the wiring harness retainers as necessary.

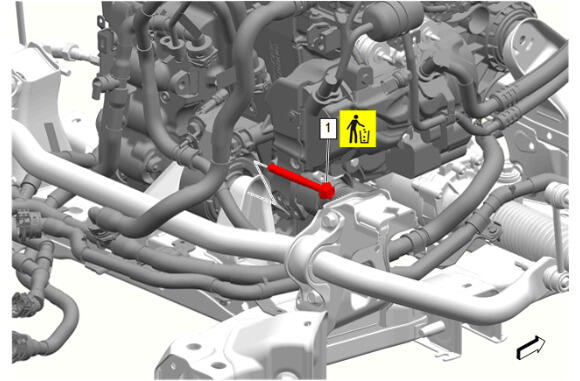

  12. GM5983296Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    CAUTION:

    Refer to Torque-to-Yield Fastener Caution .

    Drive Motor Rear Mount Bolt (2) - Install NEW and tighten - Fastener Specifications

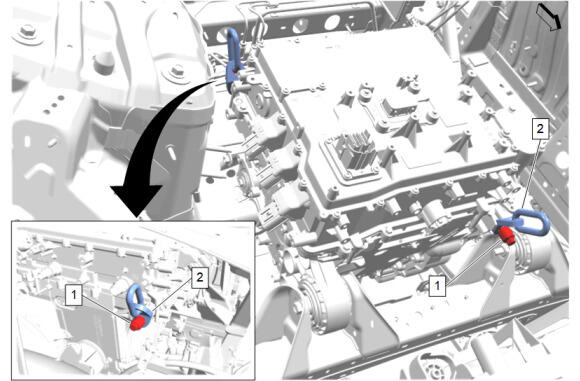

  13. GM6327954Courtesy of GENERAL MOTORS COMPANY

    Remove the 2 EN-36857  Engine Lift Bracket (2) then remove the 2 EN-52059  Engine Support Fixture Adapter Bolts - M10 (1).

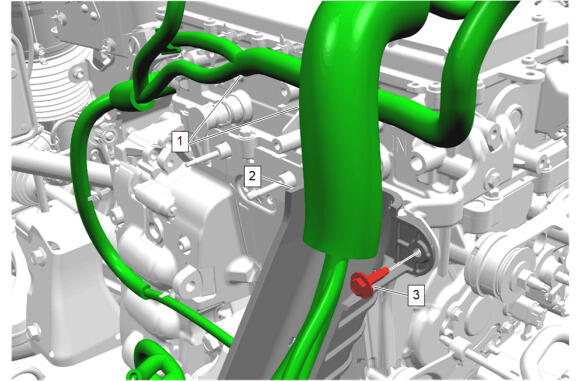

  14. GM6326623Courtesy of GENERAL MOTORS COMPANY

    Install the engine wiring harness (1) and engine wiring harness conduit (2) as necessary.

  15. Engine Wiring Harness Conduit Bolt (3) - Install and tighten - Fastener Specifications
  16. Connect the wiring harness retainers as necessary.
  17. GM6271572Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Ground Nut (1) - Install and tighten [2x] - Fastener Specifications

  18. Engine Wiring Harness Battery Lead Nut (2) - Install and tighten - Fastener Specifications
  19. Install the wiring harness.

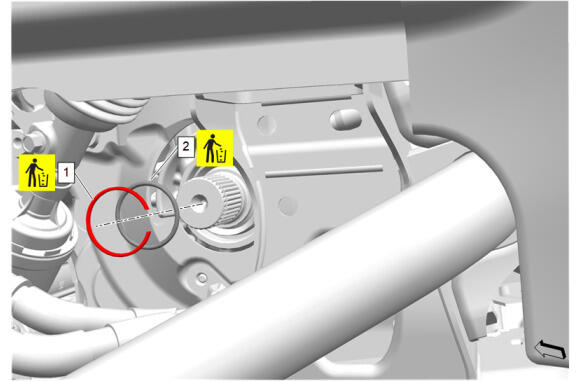

  20. GM5947997Courtesy of GENERAL MOTORS COMPANY

    Output Shaft Seal - Left Side (2) - Install NEW

  21. Output Shaft Retaining Ring - Left Side (1) - Install NEW

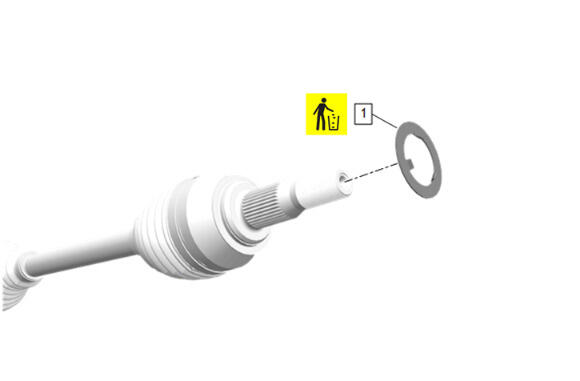

  22. GM5972102Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Drive Shaft Washer - Left Side (1) - Install NEW

  23. Apply a thin coating of grease to the splines of the left front wheel drive half shaft. Adhesives, Fluids, Lubricants, and Sealers

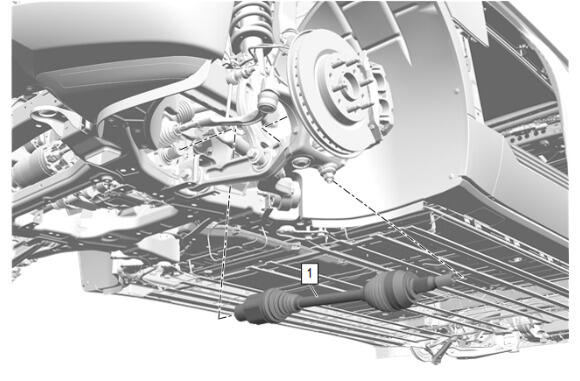

  24. GM5972044Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Wheel drive shaft boots, seals and clamps should be protected from sharp objects any time service is performed on or near the wheel drive shaft(s). Damage to the boot(s), the seal(s) or the clamp(s) may cause lubricant to leak from the joint and lead to increased noise and possible failure of the wheel drive shaft.

    Front Wheel Drive Half Shaft - Left Side (1) - Install

  25. With the aid of an assistant, reposition the steering knuckle and install the left front wheel drive half shaft into the steering knuckle.

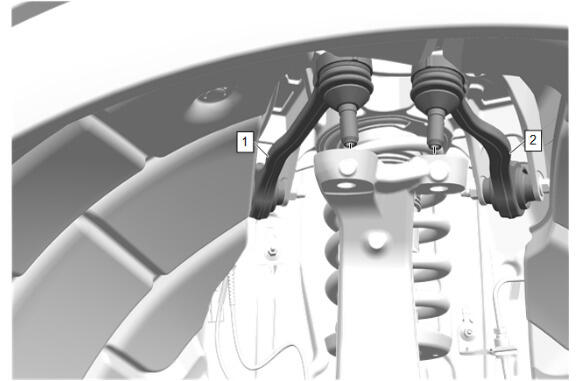

  26. GM5965376Courtesy of GENERAL MOTORS COMPANY

    Install the left front control front link (1) and left front control rear link (2) into the steering knuckle.

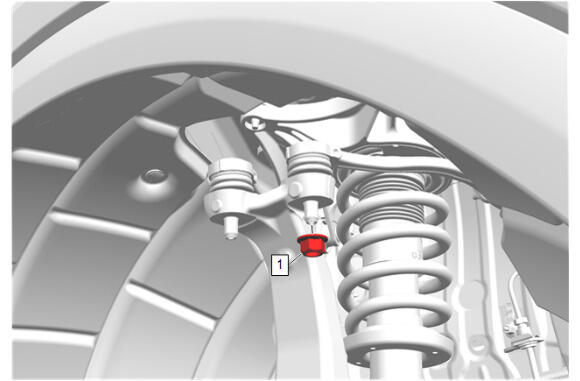

  27. GM5965335Courtesy of GENERAL MOTORS COMPANY

    Front Upper Control Arm Ball Stud Nut - Left Side (1) - Install and tighten - Fastener Specifications

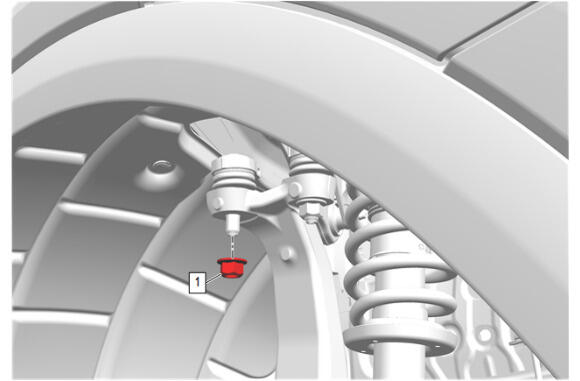

  28. GM5965243Courtesy of GENERAL MOTORS COMPANY

    Front Upper Control Arm Ball Stud Nut - Left Side (1) - Install and tighten - Fastener Specifications

  29. GM5968957Courtesy of GENERAL MOTORS COMPANY

    Steering Linkage Outer Tie Rod Nut - Left Side (1) Install and tighten - Fastener Specifications

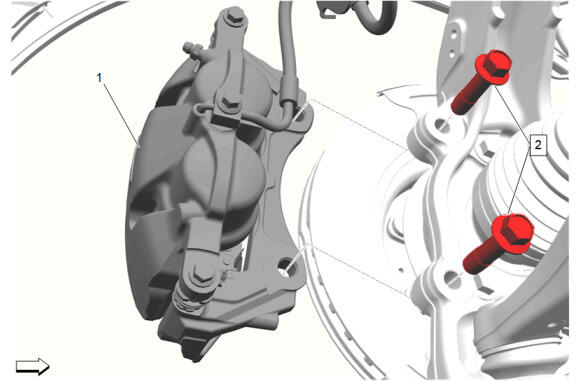

  30. GM5949197Courtesy of GENERAL MOTORS COMPANY

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
  31. Install the brake caliper and bracket assembly - Left Side (1)
  32. Front Brake Caliper Bracket Bolt - Left Side (2) - Install and tighten [2x] - Fastener Specifications

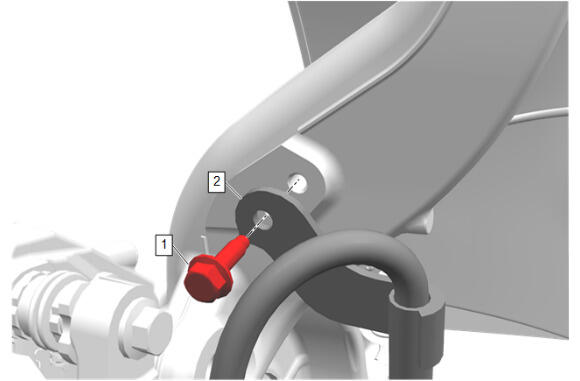

  33. GM5966454Courtesy of GENERAL MOTORS COMPANY

    Front Brake Hose - Left Side (2) @ Steering Knuckle - Reposition

  34. Front Brake Hose Bracket Bolt - Left Side (1) - Install and tighten - Fastener Specifications
  35. GM5951078Courtesy of GENERAL MOTORS COMPANY

    Apply a light coat of wheel speed anti-corrosion grease to the left front wheel speed sensor (1) and mounting pad on the steering knuckle. Adhesives, Fluids, Lubricants, and Sealers

  36. Front Wheel Speed Sensor - Left Side (2) @ Steering Knuckle - Install
  37. Front Wheel Speed Sensor Bolt - Left Side (1) - Install and tighten [2x] - Fastener Specifications
  38. GM5947997Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Output Shaft Seal - Right Side (2) - Install NEW

  39. Output Shaft Retaining Ring - Right Side (1) - Install NEW
  40. GM5972102Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Wheel Drive Shaft Washer - Right Side (1) - Install NEW

  41. Apply a thin coating of grease to the splines of the right front wheel drive half shaft. Adhesives, Fluids, Lubricants, and Sealers
  42. GM5972044Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    CAUTION:

    Wheel drive shaft boots, seals and clamps should be protected from sharp objects any time service is performed on or near the wheel drive shaft(s). Damage to the boot(s), the seal(s) or the clamp(s) may cause lubricant to leak from the joint and lead to increased noise and possible failure of the wheel drive shaft.

    Front Wheel Drive Half Shaft - Right Side (1) - Install

  43. With the aid of an assistant, reposition the steering knuckle and install the right front wheel drive half shaft into the steering knuckle.
  44. GM5965376Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Install the right front control front link (1) and right front control rear link (2) into the steering knuckle.

  45. GM5965335Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Upper Control Arm Ball Stud Nut - Right Side (1) - Install and tighten - Fastener Specifications

  46. GM5965243Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Upper Control Arm Ball Stud Nut - Right Side (1) - Install and tighten - Fastener Specifications

  47. GM5968957Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Steering Linkage Outer Tie Rod Nut - Right Side (1) Install and tighten - Fastener Specifications

  48. GM5949197Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Remove loose debris from internal and external threads using compressed air.
    4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers
  49. Install the brake caliper and bracket assembly. (1)
  50. Front Brake Caliper Bracket Bolt - Right Side (2) - Install and tighten [2x] - Fastener Specifications
  51. GM5966454Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Front Brake Hose - Right Side (2) @ Steering Knuckle - Reposition

  52. Front Brake Hose Bracket Bolt - Right Side (1) - Install and tighten - Fastener Specifications
  53. GM5951078Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Left side shown, right side similar.

    Apply a light coat of wheel speed anti-corrosion grease to the left front wheel speed sensor (1) and mounting pad on the steering knuckle. Adhesives, Fluids, Lubricants, and Sealers

  54. Front Wheel Speed Sensor - Right Side (2) @ Steering Knuckle - Install
  55. Front Wheel Speed Sensor Bolt - Right Side (1) - Install and tighten [2x] - Fastener Specifications
  56. Have an assistant apply the brakes.

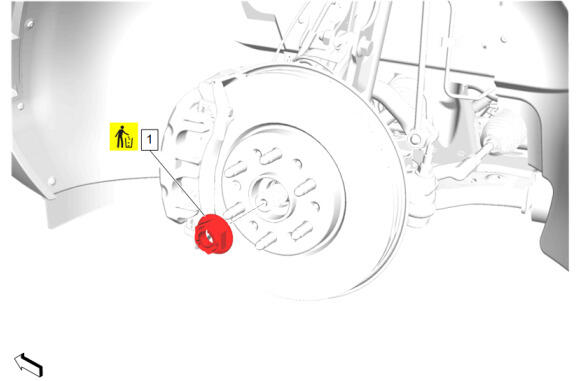

  57. GM5947881Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    DO NOT use air tools to remove the wheel drive shaft nut. Damage to the wheel drive shaft threads could occur. Use hand tools only.

    Front Wheel Drive Shaft Nut - Left Side and Right Side (1) - Install and tighten [2x] - Fastener Specifications

  58. Have an assistant release the brakes.
  59. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation

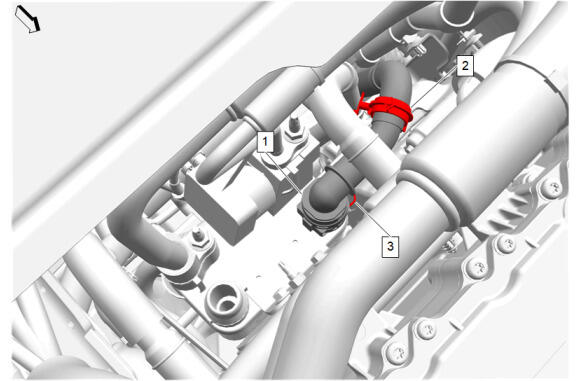

  60. GM5997428Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Power Distribution Control Module Hose Clip (2) - Install

  61. Drive Motor Battery Coolant Flow Control Valve Hose (1) @ Drive Motor Battery Coolant Cooler - Install
  62. Retainer (3) - Engage

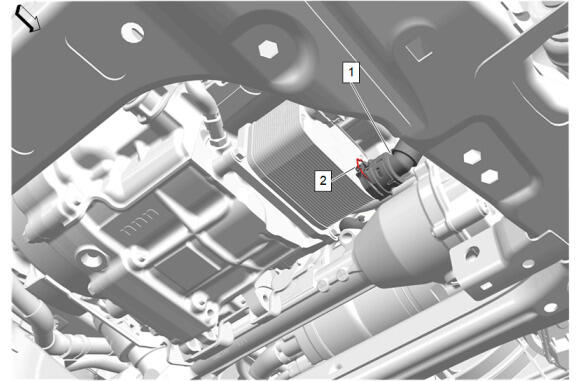

  63. GM6166323Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Control Module Radiator Outlet Hose (1) @ Automatic Transmission Fluid Cooling Exchanger - Install

  64. Retainer (2) - Engage
  65. Connect the electrical connectors and install the wiring harness retainers as necessary.

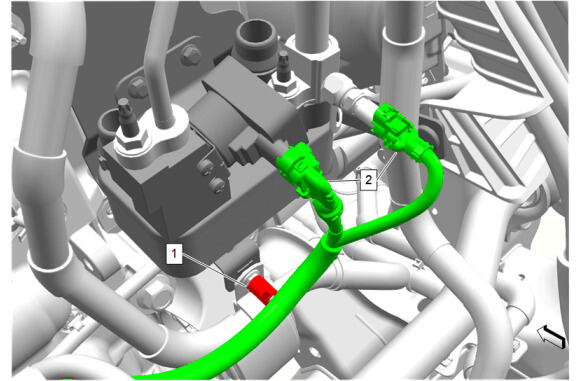

  66. GM5997425Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Install

  67. Electrical Connector (2) @ Drive Motor Battery Coolant Cooler - Connect

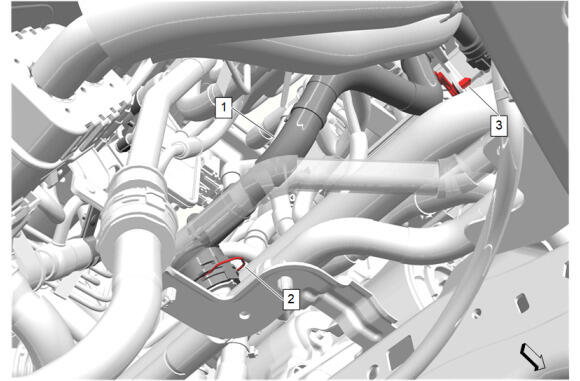

  68. GM6003604Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Power Distribution Control Module Hose Strap (3) - Install

  69. GM6173813Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Control Module Cooling Inlet Hose (2) @ Front Electric Drive Transmission Module - Install

  70. Retainer (1) - Engage

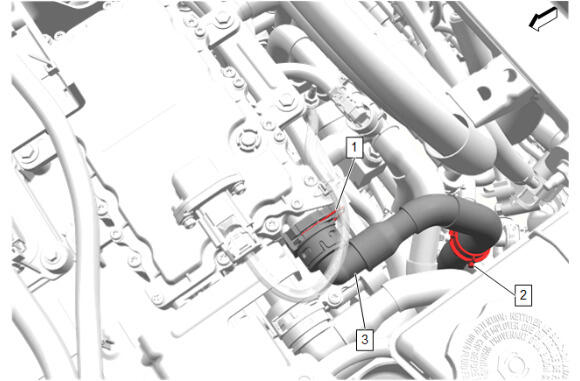

  71. GM6171431Courtesy of GENERAL MOTORS COMPANY

    High Voltage Battery Heater Module Coolant Hose (3) @ High Voltage Battery Heater Module - Install

  72. Retainer (1) - Engage
  73. Install the high voltage battery heater module coolant hose retainers as necessary.

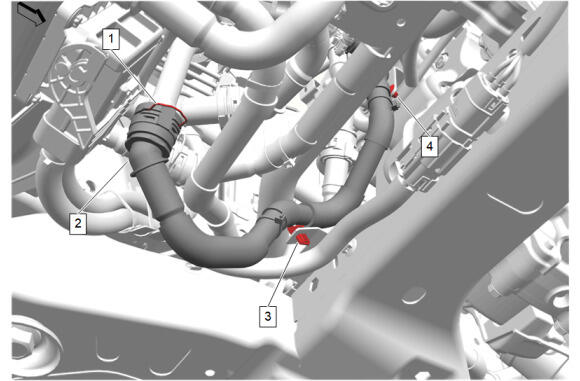

  74. GM5997472Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Heater Inlet and Outlet Hose Clip (4) - Install

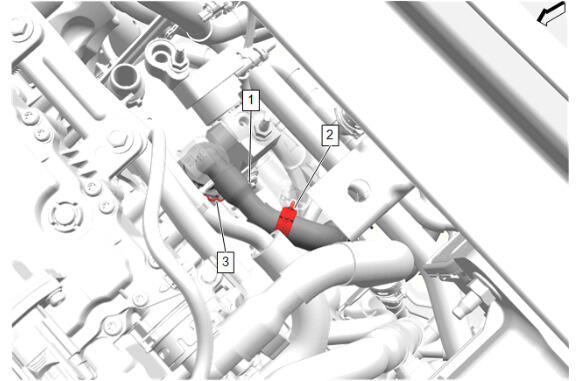

  75. GM6173948Courtesy of GENERAL MOTORS COMPANY

    High Voltage Battery Coolant Inlet Secondary Hose Clip (2) - Install

  76. High Voltage Battery Coolant Inlet Hose (1) @ Drive Motor Battery Coolant Cooler - Install
  77. Retainer (3) - Engage

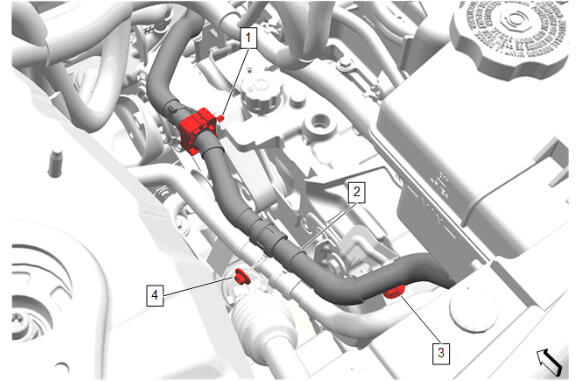

  78. GM6168529Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Battery Control Module Bracket Nut (4) - Install and tighten - Fastener Specifications

  79. Drive Motor Power Distribution Control Module Hose Clip (1) - Install
  80. High Voltage Battery Heater Module Coolant Hose Retainer (3) - Install

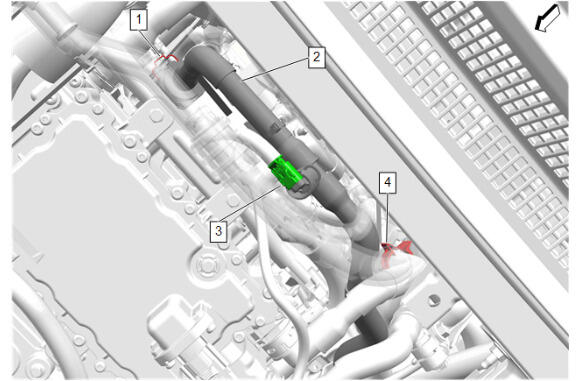

  81. GM6168527Courtesy of GENERAL MOTORS COMPANY

    High Voltage Battery Coolant Inlet Secondary Hose Clip (4) - Install

  82. High Voltage Battery Coolant Cooler Inlet Hose (2) @ Drive Motor Battery Coolant Cooler - Install
  83. Retainer (1) - Engage
  84. Electrical Connector (3) - Connect

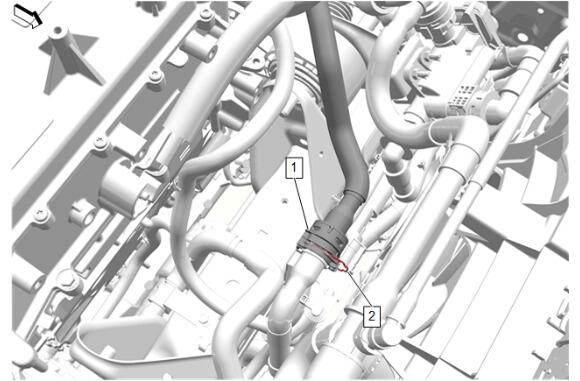

  85. GM6168528Courtesy of GENERAL MOTORS COMPANY

    High Voltage Battery Coolant Cooler Inlet Hose (1) @ High Voltage Battery Radiator Outlet Hose - Install

  86. Retainer (2) - Engage

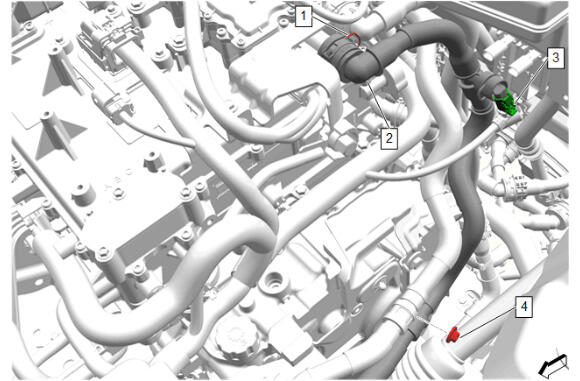

  87. GM6171355Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Drive Motor Control Module Cooling Inlet Hose (2) - Install

  88. Drive Motor Battery Control Module Bracket Nut (4) - Install and tighten - Fastener Specifications
  89. Retainer (1) - Engage
  90. Electrical Connector (3) - Connect
  91. Install the drive motor control module coolant pump hose strap.

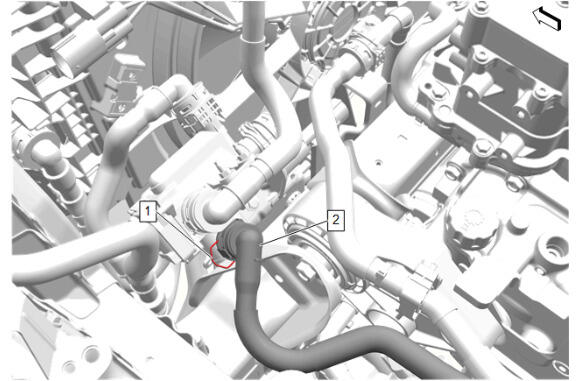

  92. GM6171354Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Drive Motor Control Module Cooling Inlet Hose (2) @ Hybrid/Electric Vehicle Propulsion System Coolant Control Valve 1 - Install

  93. Retainer (1) - Engage

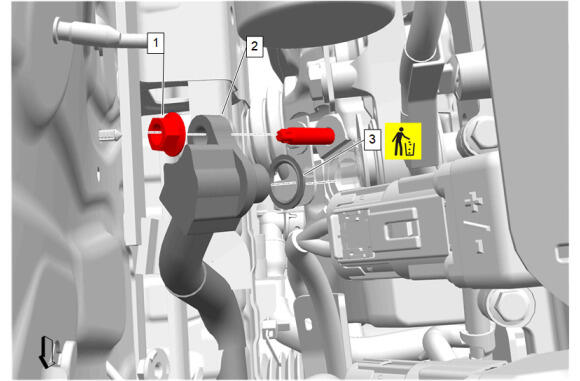

  94. GM6017712Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Air Conditioning Sealing Washers Oil or Lubricant Exposure Caution .

    Air Conditioning Evaporator Seal (3) - Install NEW

  95. Air Conditioning Evaporator Hose (2) @ Air Conditioning with Motor Compressor - Install
  96. Air Conditioning Evaporator Thermal Expansion Valve Hose Nut (1) @ Air Conditioning with Motor Compressor - Install and tighten - Fastener Specifications

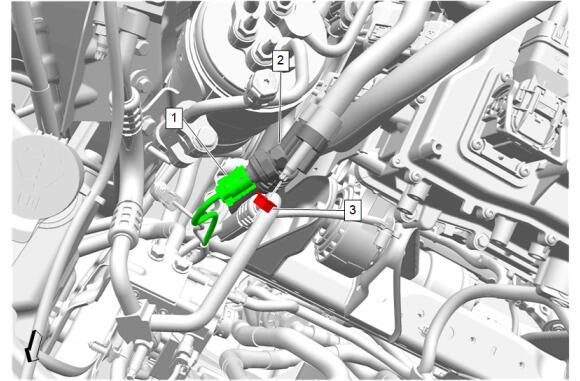

  97. GM6017710Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Air Conditioning Refrigerant Pressure and Temperature Sensor - Connect

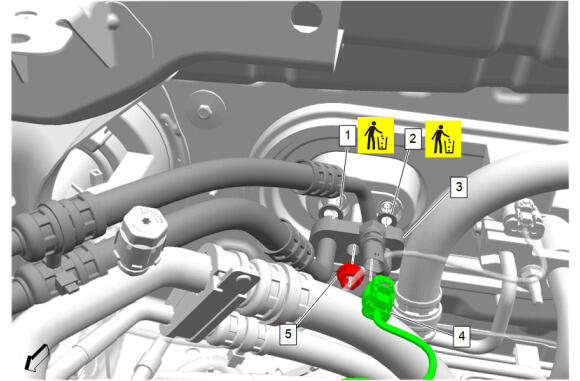

  98. GM5980052Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Compressor and Condenser Hose Seal - Small (2) - Install NEW

  99. Air Conditioning Compressor and Condenser Hose Seal - Large (1) - Install NEW
  100. Heater and Air Conditioning Evaporator and Blower Module Refrigerant Pipe (3) @ Heater and Air Conditioning Evaporator and Blower Module - Install
  101. Heater and Air Conditioning Evaporator and Blower Module Refrigerant Pipe Nut (5) @ Heater and Air Conditioning Evaporator and Blower Module - Install and tighten - Fastener Specifications
  102. Electrical Connector (4) @ Air Conditioning Refrigerant Temperature Sensor - Connect

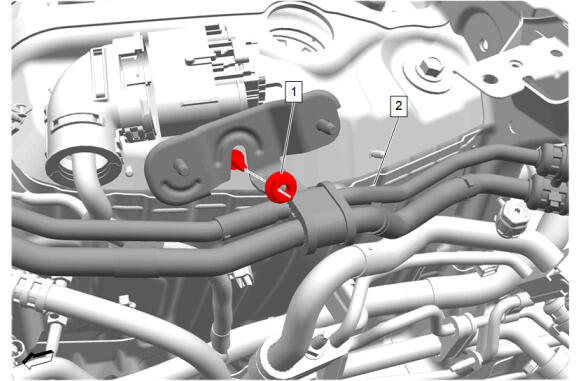

  103. GM5980048Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Evaporator and Blower Module Refrigerant Pipe (2) @ Front Wheelhouse Panel - Right Side - Install

  104. Air Conditioning Evaporator Tube Bracket Nut (1) - Install and tighten - Fastener Specifications

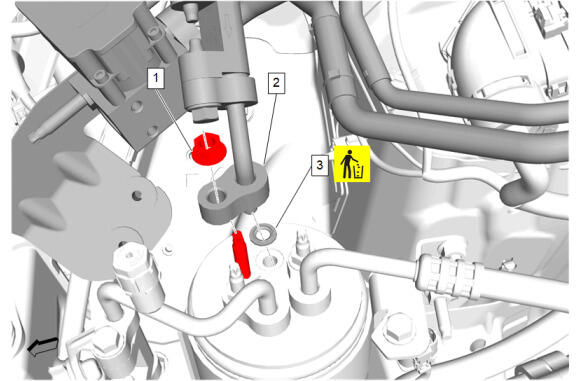

  105. GM5979409Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Evaporator Seal (3) - Install NEW

  106. Heater and Air Conditioning Evaporator and Blower Module Refrigerant Pipe (2) @ Air Conditioning Receiver and Dehydrator - Install
  107. Heater and Air Conditioning Evaporator and Blower Module Refrigerant Pipe Nut (1) @ Air Conditioning Receiver and Dehydrator - Install and tighten - Fastener Specifications

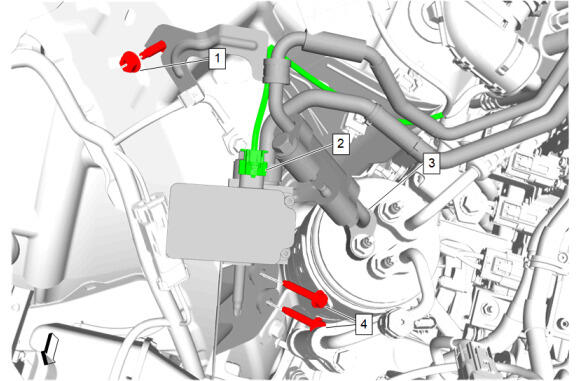

  108. GM5979387Courtesy of GENERAL MOTORS COMPANY

    Install the windshield washer nozzle extension hose retainers as necessary.

  109. Air Conditioning Condenser Refrigerant Flow Valve Bracket Bolt (4) - Install and tighten [2x] - Fastener Specifications
  110. Electrical Connector (2) @ Air Conditioning Condenser Refrigerant Flow Valve - Connect
  111. Air Conditioning Evaporator Tube Bracket Nut (1) @ Air Conditioning Receiver and Dehydrator - Install and tighten - Fastener Specifications

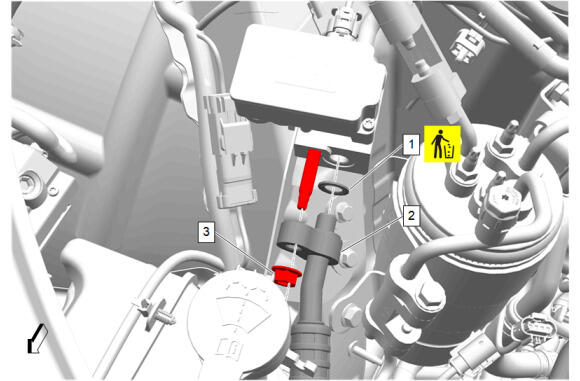

  112. GM5946925Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Compressor and Condenser Hose Seal (1) - Install NEW

  113. Air Conditioning Compressor Hose (2) @ Air Conditioning Condenser Refrigerant Flow Valve - Install
  114. Air Conditioning Compressor Hose Nut (3) @ Air Conditioning Condenser Refrigerant Flow Valve - Install and tighten - Fastener Specifications

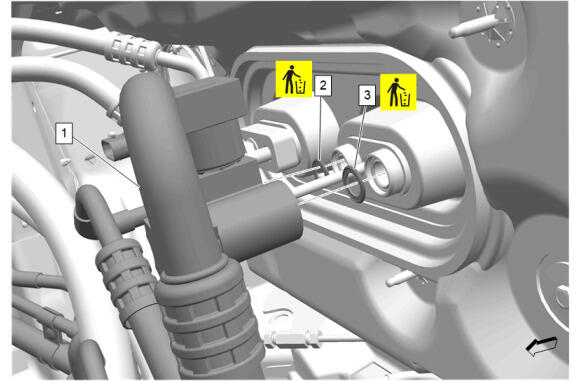

  115. GM5955341Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Evaporator Seal - Small (2) - Install NEW

  116. Air Conditioning Evaporator Seal - Large (3) - Install NEW
  117. Heater and Air Conditioning Evaporator and Blower Module Refrigerant Auxiliary Pipe - Install

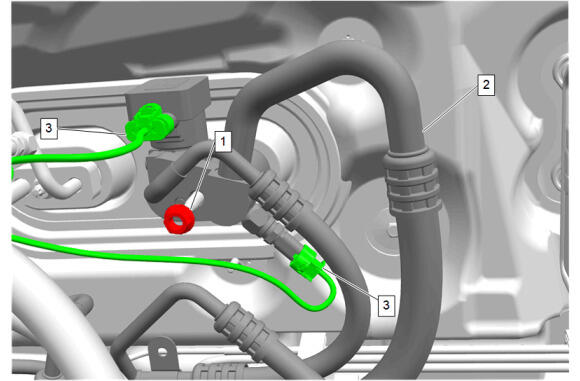

  118. GM5951955Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning Evaporator and Blower Module Refrigerant Pipe Nut (1) @ Heater and Air Conditioning Evaporator and Blower Module (2) - Install and tighten - Fastener Specifications

  119. Connect the electrical connectors and install the wiring harness retainers as necessary.

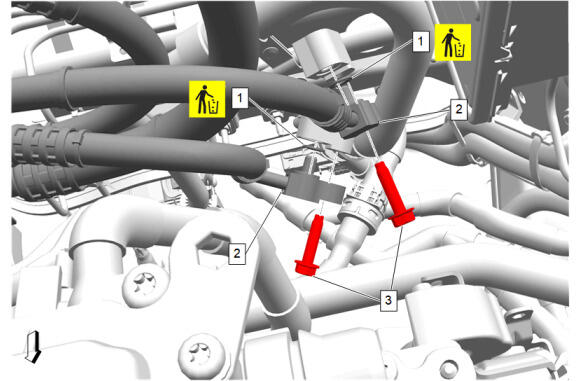

  120. GM6014864Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Evaporator Seal - Small (1) - Install NEW [2x]

  121. Heater and Air Conditioning Evaporator and Blower Module Refrigerant Auxiliary Pipe (2) - Install [2x]
  122. Air Conditioning Condenser Hose Bolt (3) @ Air Conditioning Refrigerant Heat Exchanger - Install and tighten [2x] - Fastener Specifications

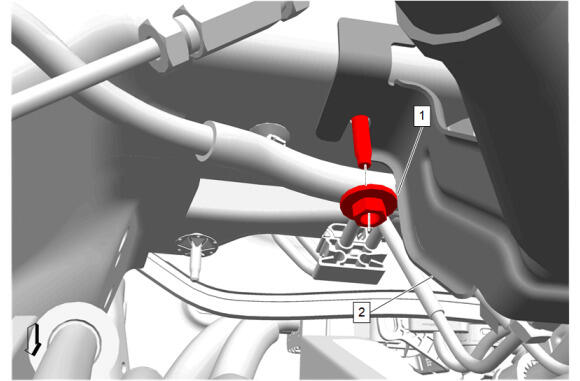

  123. GM6012724Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Evaporator Tube Bracket Nut (1) @ Floor Panel Number 1 Cross Bar - Install and tighten - Fastener Specifications

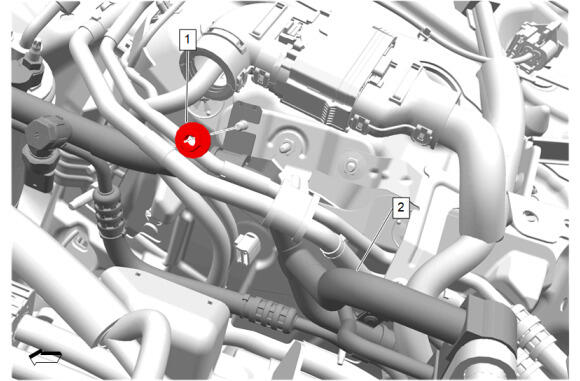

  124. GM6003621Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Evaporator Tube Nut (1) @ Front Wheelhouse Front Panel - Install and tighten - Fastener Specifications

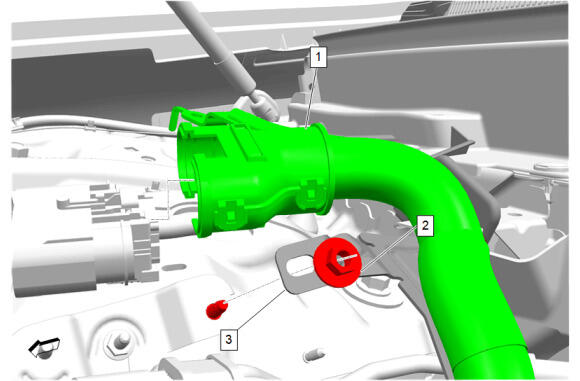

  125. GM5980045Courtesy of GENERAL MOTORS COMPANY

    Install the engine wiring harness with the wiring harness bracket (3).

  126. Wiring Harness Bracket (3) @ Front Wheelhouse Panel - Right Side - Install
  127. Wiring Harness Bracket Nut (2) @ Wiring Harness Bracket (3) - Install and tighten - Fastener Specifications
  128. Engine Wiring Harness Connector (1) @ Body Wiring Harness - Connect

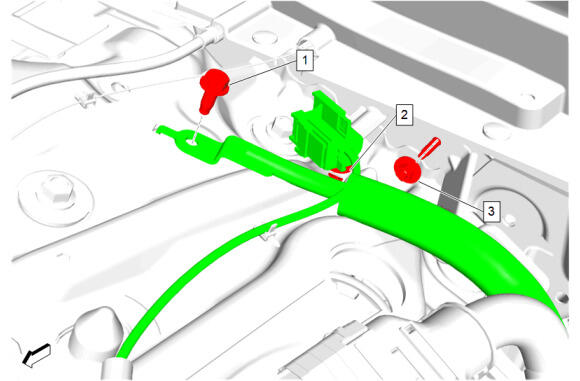

  129. GM5980046Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Bracket Nut (3) - Install and tighten - Fastener Specifications

  130. Retainer (2) @ Wiring Harness Bracket - Install
  131. Engine Wiring Harness Ground Bolt (1) - Install and tighten - Fastener Specifications

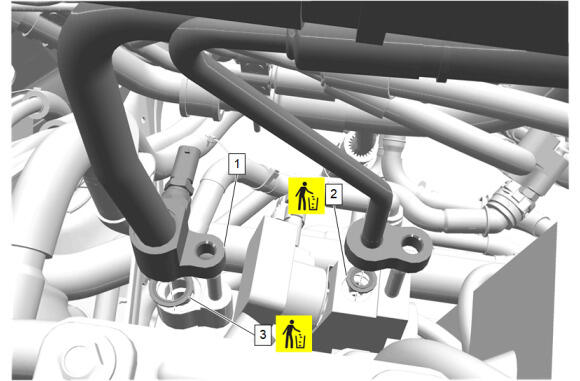

  132. GM5999895Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Evaporator Seal - Large (3) Install NEW

  133. Air Conditioning Evaporator Seal - Small (2) - Install NEW
  134. Air Conditioning Cooler Valve Hose (1) @ Drive Motor Battery Coolant Cooler - Install

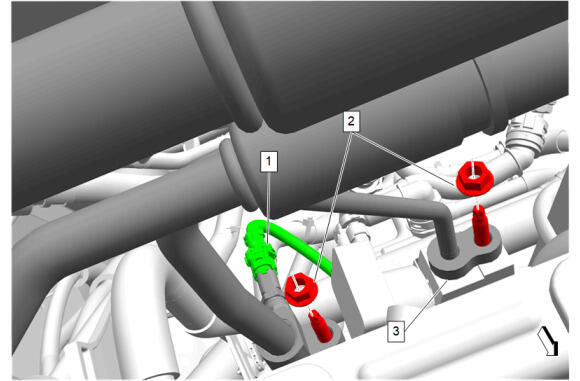

  135. GM5999894Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Cooler Valve Hose (3) @ Drive Motor Battery Coolant Cooler - Install

  136. Air Conditioning Cooler Valve Hose Nut (2) - Install and tighten [2x] - Fastener Specifications
  137. Electrical Connector (1) @ Air Conditioning Refrigerant Temperature Sensor - Connect

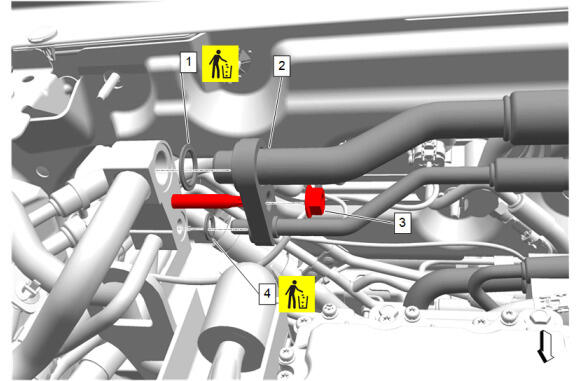

  138. GM5999893Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Evaporator Seal - Large (1) - Install NEW

  139. Air Conditioning Evaporator Seal - Small (4) - Install NEW
  140. Air Conditioning Cooler Valve Hose (2) @ Heater and Air Conditioning Evaporator and Blower Module Refrigerant Auxiliary Pipe - Install
  141. Heater and Air Conditioning Evaporator and Blower Module Refrigerant Pipe Nut (3) @ Air Conditioning Cooler Valve Hose (2) - Install and tighten - Fastener Specifications

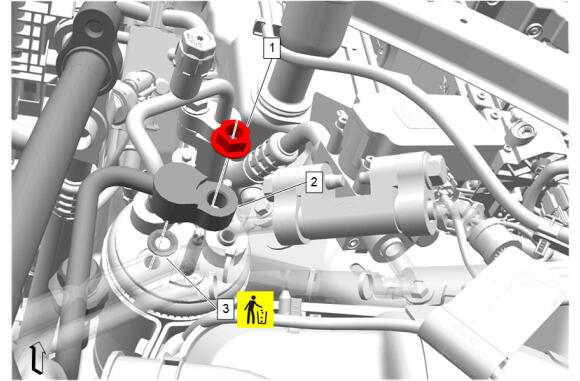

  142. GM6003620Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Evaporator Seal - Small (3) - Install NEW

  143. Heater and Air Conditioning Evaporator and Blower Module Refrigerant Auxiliary Pipe (2) @ Receiver and Dehydrator - Install
  144. Heater and Air Conditioning Evaporator and Blower Module Refrigerant Pipe Nut (1) @ Receiver and Dehydrator - Install and tighten - Fastener Specifications

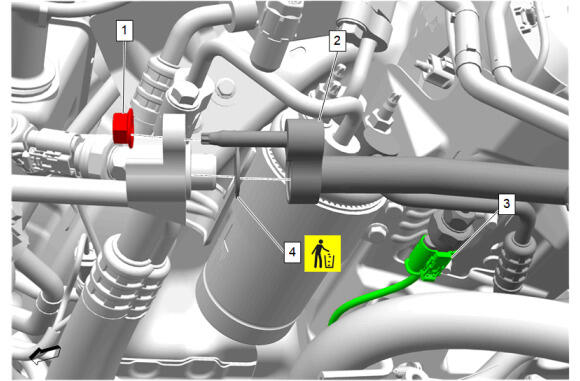

  145. GM6003622Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Evaporator Seal - Large (4) - Install NEW

  146. Heater and Air Conditioning Evaporator and Blower Module Refrigerant Auxiliary Pipe (2) @ Air Conditioning Evaporator Hose - Install
  147. Heater and Air Conditioning Evaporator and Blower Module Refrigerant Pipe Nut (1) @ Air Conditioning Evaporator Hose - Install and tighten - Fastener Specifications
  148. Electrical Connector (3) @ Air Conditioning Refrigerant Pressure and Temperature Sensor - Connect

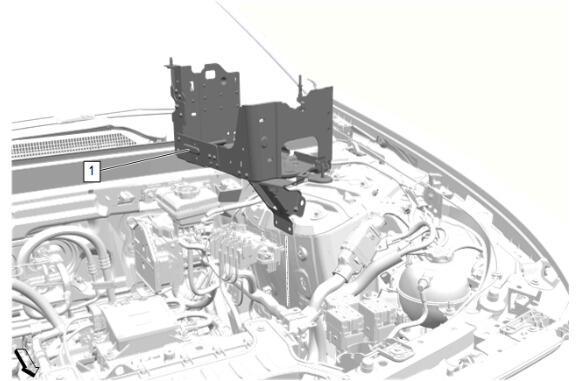

  149. GM5946322Courtesy of GENERAL MOTORS COMPANY

    Battery Tray (1) - Install

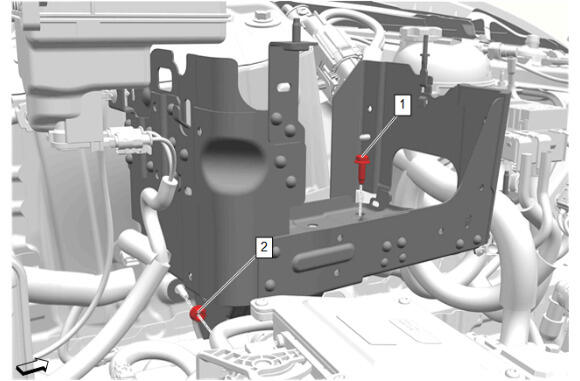

  150. GM5939643Courtesy of GENERAL MOTORS COMPANY

    Battery Tray Brace Nut (2) - Install and tighten - Fastener Specifications

  151. Battery Tray Support Bolt (1) - Install and tighten - Fastener Specifications

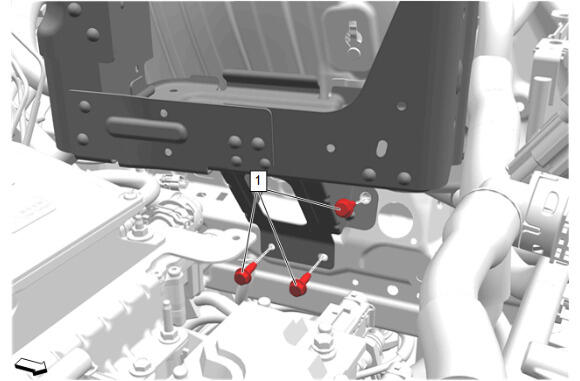

  152. GM5939631Courtesy of GENERAL MOTORS COMPANY

    Battery Tray Support Bolt (1) - Install and tighten [3x] - Fastener Specifications

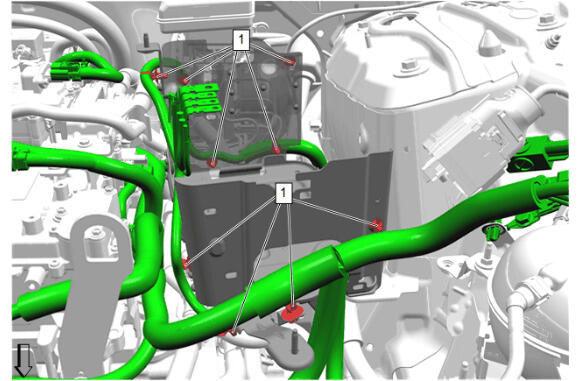

  153. GM5939655Courtesy of GENERAL MOTORS COMPANY

    Install the body wiring harness retainers (1).

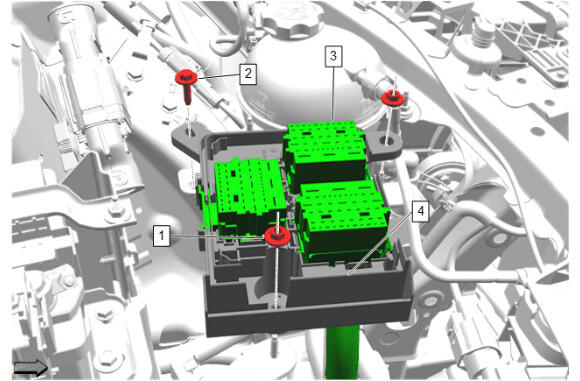

  154. GM5939658Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Fuse Block Bracket (4) - Install

  155. Install the three electrical connectors (3).
  156. Engine Wiring Harness Junction Block Shield Bolt (2) - Install and tighten - Fastener Specifications
  157. Engine Wiring Harness Junction Block Shield Nut (1) - Install and tighten [2x] - Fastener Specifications

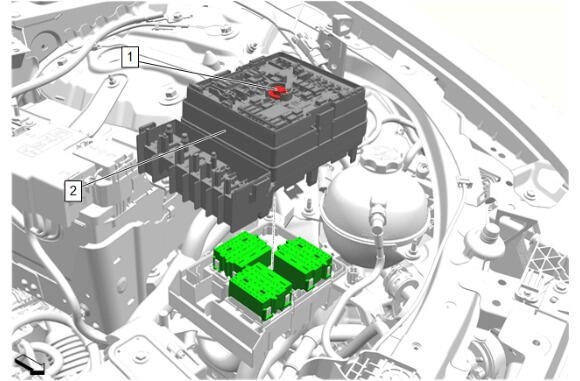

  158. GM5931142Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Junction Block (2) - Install

  159. Engine Wiring Harness Junction Block (1) - Tighten - Fastener Specifications

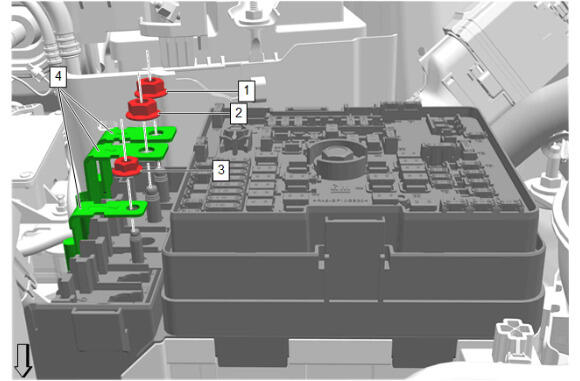

  160. GM5931141Courtesy of GENERAL MOTORS COMPANY

    Install wiring harness terminals (4).

  161. Engine Wiring Harness Fuse Block Nut-Small (3) - Install and tighten - Fastener Specifications
  162. Engine Wiring Harness Battery Lead Nut (2) - Install and tighten - Fastener Specifications
  163. Engine Wiring Harness Fuse Block Nut-Large (1) - Install and tighten - Fastener Specifications

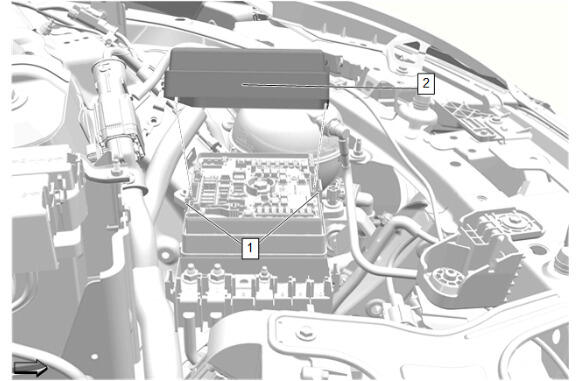

  164. GM5931140Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Fuse Block Cover (2) - Install

  165. Retaining Tab (1) - Engage [2x]

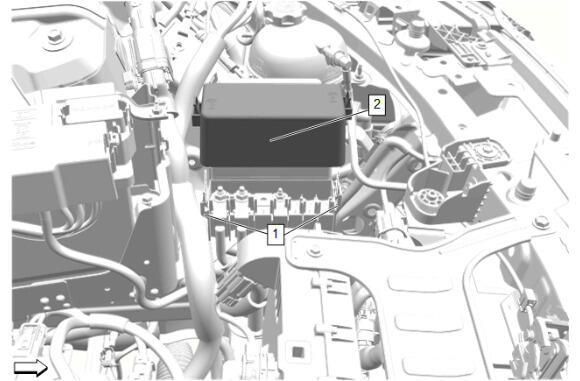

  166. GM5931310Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Fuse Block Cover (2) - Install

  167. Retaining Tab (1) - Engage [2x]

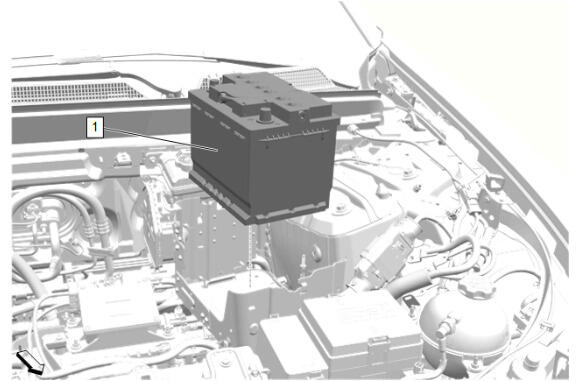

  168. GM5929577Courtesy of GENERAL MOTORS COMPANY

    Battery (1) - Install

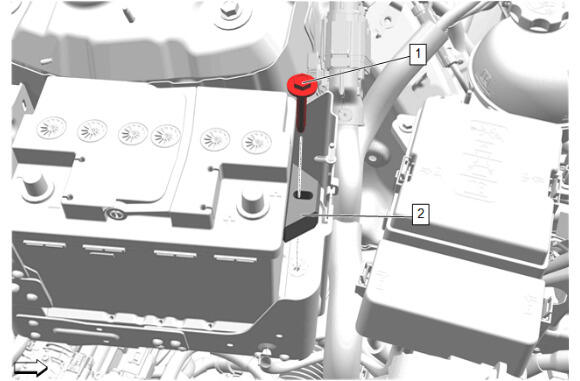

  169. GM5929575Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Retainer (2) - Install

  170. Battery Hold Down Retainer Bolt (1) - Install and tighten [2x] - Fastener Specifications

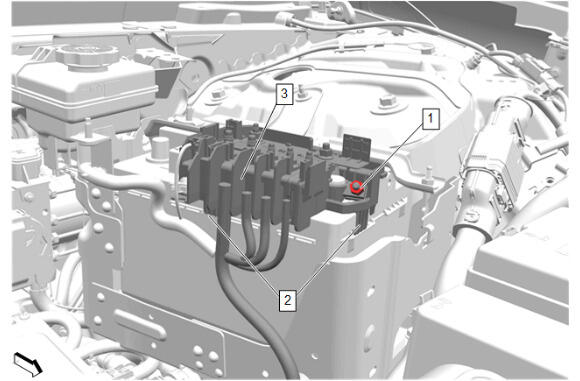

  171. GM5929573Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Engine Compartment Fuse Block (3) - Install

  172. Retaining Tab (2) - Engage [2x]
  173. Battery Distribution Engine Compartment Fuse Block (1) - Tighten - Fastener Specifications

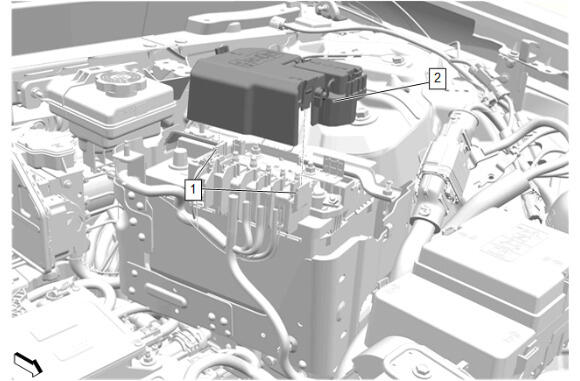

  174. GM5929572Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Engine Compartment Fuse Block Cover (2) - Install

  175. Retaining Tab (1) - Engage [2x]

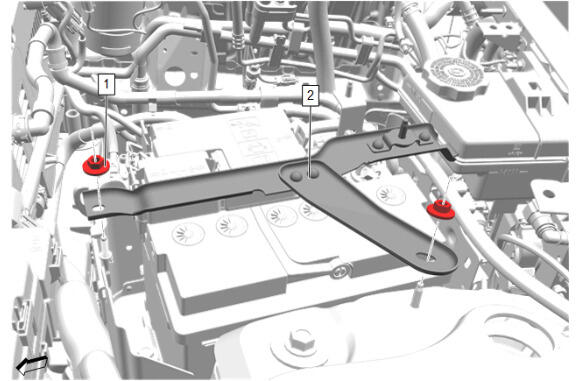

  176. GM5922095Courtesy of GENERAL MOTORS COMPANY

    Battery Hold Down Retainer (2) - Install

  177. Battery Retainer Nut (1) - Install and tighten [2x] - Fastener Specifications
  178. GM5925550Courtesy of GENERAL MOTORS COMPANY

    Front Trim Finish Compartment Support (2) - Install

  179. Front Trim Finish Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications
  180. Connect the electrical connectors and install the wiring harness retainers as necessary.
  181. GM5923708Courtesy of GENERAL MOTORS COMPANY

    Front Compartment Front Sight Shield (2) Install

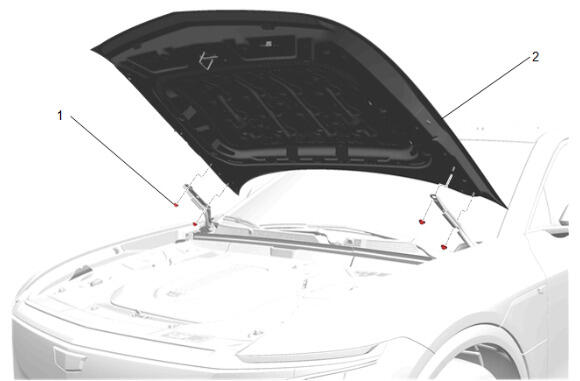

  182. GM5939830Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, install the hood. (2)

  183. Hood Hinge Nut (1) - Install and tighten [4x] - Fastener Specifications

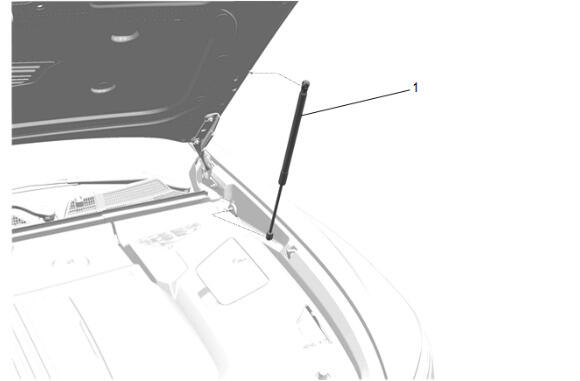

  184. GM5939829Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the clip is fully seated when the rod is reinstalled. If the clip cannot be fully seated, a new rod should be installed.

    Hood Strut - Left Side and Right Side (1) - Install [2x]

  185. Install the 4 metal clips to each ends of the left and right side hood struts (1).
  186. Recharge the refrigerant. Refrigerant Recovery and Recharging
  187. Fill the cooling system. Drive Motor Battery Cooling System Draining and Filling
  188. Fill the electric drive transmission. Transmission Fluid Drain and Fill
  189. Enable the high voltage system. High Voltage Enabling
  190. Perform the necessary programming and setup procedure: Control Module References
scientia non olet · About Mike's Workshop Manuals
