Fastener Specifications

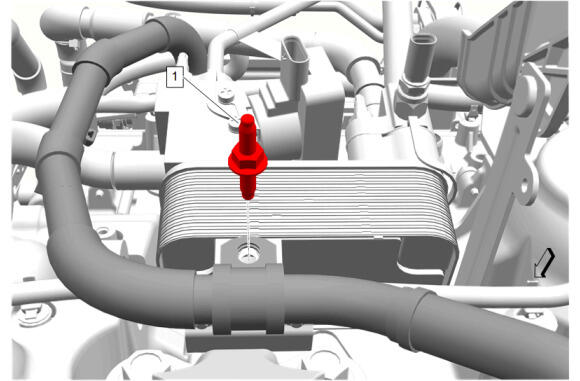

GM6000887Courtesy of GENERAL MOTORS COMPANY
Auxiliary Heater Inlet and Outlet Pipe Bracket Stud (XFD)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Auxiliary Heater Inlet and Outlet Pipe Bracket Stud - - 9 N.m (80 lb in) Drive Motor Power Inverter Module Cooling Outlet Hose Replacement (XFD)

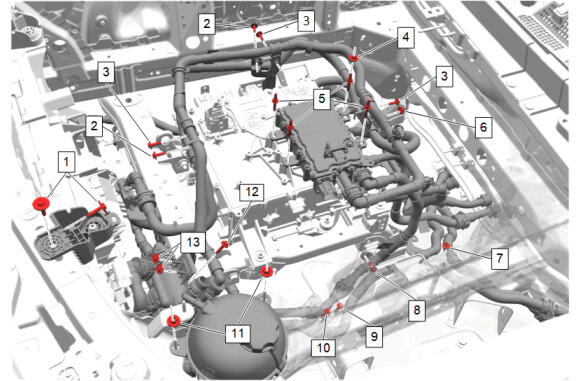

Fig 1: Identifying Coolant Hoses And Component Fasteners - Left (RWL)
GM6295076Courtesy of GENERAL MOTORS COMPANY
Coolant Hoses - Left (RWL)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Upper Bracket Bolt [2x] - - 9 N.m (80 lb in) Radiator Upper Bracket Replacement
2 Drive Motor Battery Charger Inlet Hose Bracket Bolt [2x] - - 9 N.m (80 lb in) High Voltage Battery Coolant Cooler Inlet Hose Replacement (RWL)
3 Drive Motor Control Module Cooling Inlet Hose Bolt [3x] - - 9 N.m (80 lb in) Auxiliary Drive Motor Control Module Cooling Inlet Hose Replacement (RWL)
4 Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose Clip Nut - - 9 N.m (80 lb in) High Voltage Battery Heater Module Replacement (RWL)
5 High Voltage Battery Disconnect Control Module Bracket Stud [4x] - - 9 N.m (80 lb in) High Voltage Battery Heater Module Replacement (RWL)
6 Drive Motor Battery Charger Inlet Hose Clip Nut - - 9 N.m (80 lb in) High Voltage Battery Coolant Cooler Inlet Hose Replacement (RWL)
7 Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose Clip Nut - - 9 N.m (80 lb in) Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose Replacement
8 Heater Pipe Clip Bolt - - 9 N.m (80 lb in) High Voltage Battery Heater Module Coolant Hose Replacement (RWL)
9 Heater Inlet Pipe Bracket Bolt - - 9 N.m (80 lb in) Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose Replacement
10 Heater Inlet Pipe Bracket Bolt - - 9 N.m (80 lb in) High Voltage Battery Heater Module Coolant Secondary Hose Replacement (RWL)
11 Radiator Surge Tank Nut [2x] - - 9 N.m (80 lb in) Radiator Surge Tank Replacement
12 Drive Motor Generator Battery Cooling Blower Bolt - - 9 N.m (80 lb in) Hybrid/Electric Vehicle Propulsion System Coolant Control Valve 1 Replacement
13 Drive Motor Battery Cooling Nut [2x] - - 9 N.m (80 lb in) Hybrid/Electric Vehicle Propulsion System Coolant Control Valve 1 Replacement

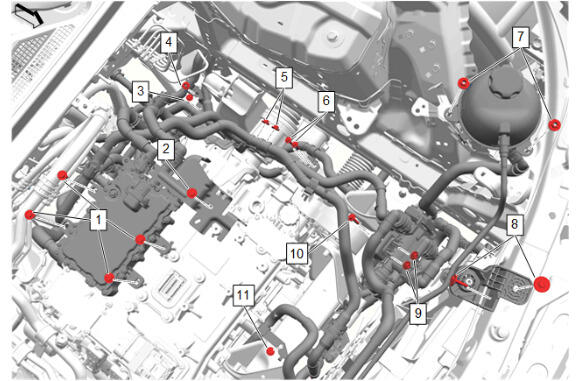

Fig 2: Identifying Coolant Hoses And Component Fasteners - Left (XFD)
GM6178118Courtesy of GENERAL MOTORS COMPANY
Coolant Hoses - Left (XFD)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 High Voltage Battery Heater Bracket Bolt [4x] - - 9 N.m (80 lb in) High Voltage Battery Heater Module Replacement (XFD)
2 High Voltage Battery Heater Module Protector Bolt - - 9 N.m (80 lb in) High Voltage Battery Heater Module Replacement (XFD)
3 Heater Inlet Pipe Bracket Bolt - - 9 N.m (80 lb in) High Voltage Battery Heater Module Coolant Secondary Hose Replacement (XFD)
4 Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose Clip Nut - - 9 N.m (80 lb in) Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose Replacement
5 Drive Motor Battery Control Module Bracket Nut [2x] - - 9 N.m (80 lb in) High Voltage Battery Coolant Cooler Inlet Hose Replacement (XFD)
Auxiliary Drive Motor Control Module Cooling Inlet Hose Replacement (XFD)
6 Heater Inlet Pipe Bracket Bolt [2x] - - 9 N.m (80 lb in) Drive Motor Battery Charger Receptacle Coolant Inlet Secondary Hose Replacement
High Voltage Battery Heater Module Coolant Secondary Hose Replacement (XFD)
7 Radiator Surge Tank Nut [2x] - - 9 N.m (80 lb in) Radiator Surge Tank Replacement
8 Radiator Upper Bracket Bolt [2x] - - 9 N.m (80 lb in) Radiator Upper Bracket Replacement
9 Drive Motor Battery Cooling Nut [2x] - - 9 N.m (80 lb in) Hybrid/Electric Vehicle Propulsion System Coolant Control Valve 1 Replacement
10 Drive Motor Generator Battery Cooling Blower Bolt - - 9 N.m (80 lb in) Hybrid/Electric Vehicle Propulsion System Coolant Control Valve 1 Replacement
11 Radiator Outlet Hose Bracket Bolt - - 9 N.m (80 lb in) Drive Motor Control Module Radiator Outlet Hose Replacement (XFD and LHD) , or Drive Motor Control Module Radiator Outlet Hose Replacement (XFD and RHD)

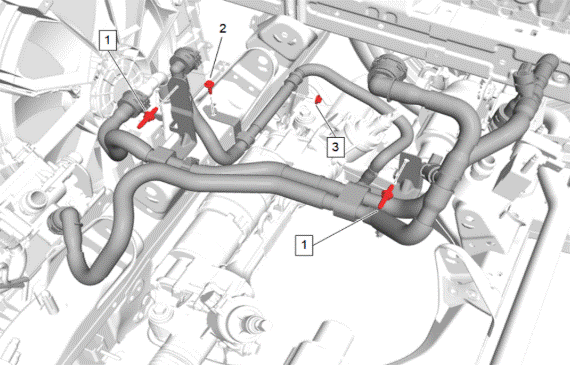

GM6468870Courtesy of GENERAL MOTORS COMPANY
Coolant Hoses - Left (RHD)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Auxiliary Heater Inlet and Outlet Pipe Bracket Stud - - 9 N.m (80 lb in) Auxiliary Drive Motor Control Module Cooling Inlet Hose Replacement (RHD)
2 Drive Motor Control Module Cooling Inlet Hose Bolt - - 9 N.m (80 lb in) Drive Motor Control Module Radiator Outlet Hose Replacement (XFD and RHD)
3 Drive Motor Battery Control Module Bracket Nut - - 9 N.m (80 lb in) Drive Motor Control Module Radiator Outlet Hose Replacement (XFD and RHD)

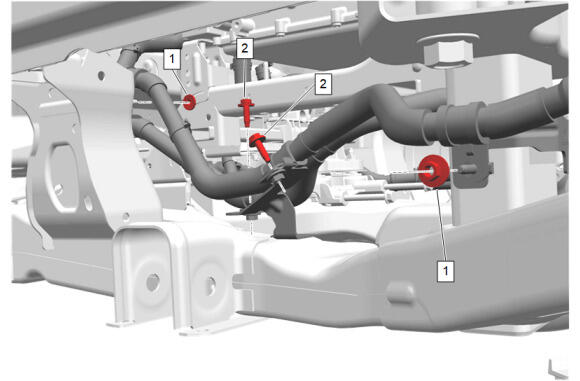

GM6294610Courtesy of GENERAL MOTORS COMPANY
Coolant Hoses - Right (RWL)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Battery Charger Inlet Hose Clip Nut [2x] - - 9 N.m (80 lb in) Drive Motor Battery Charger Inlet Hose Replacement (RWL and K20) , or Drive Motor Battery Charger Inlet Hose Replacement (RWL and K28)
2 Drive Motor Battery Charger Inlet Hose Clip Bolt [2x] - - 9 N.m (80 lb in) Drive Motor Battery Charger Inlet Hose Replacement (RWL and K20) , or Drive Motor Battery Charger Inlet Hose Replacement (RWL and K28)

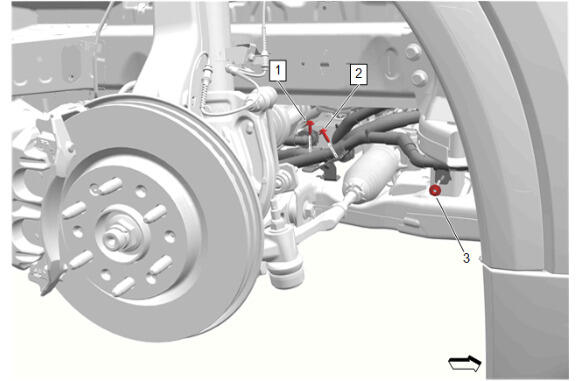

GM6178119Courtesy of GENERAL MOTORS COMPANY
Coolant Hoses - Right (XFD)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Control Module Cooling Inlet Hose Bolt - - 9 N.m (80 lb in) Drive Motor Power Distribution Control Module Hose Replacement (XFD)
2 Drive Motor Battery Charger Inlet Hose Clip Bolt - - 9 N.m (80 lb in) Drive Motor Battery Charger Inlet Hose Replacement (XFD)
3 Drive Motor Battery Charger Inlet Hose Clip Nut - - 9 N.m (80 lb in) Drive Motor Battery Charger Inlet Hose Replacement (XFD)

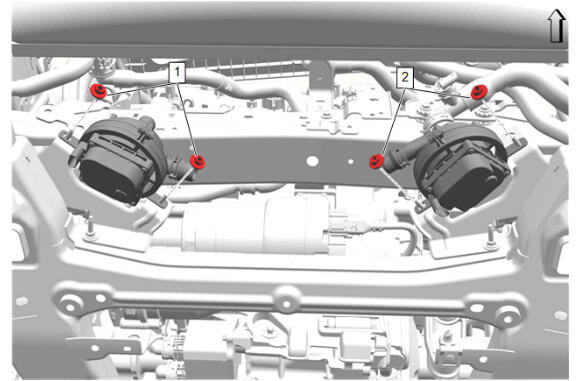

GM6178117Courtesy of GENERAL MOTORS COMPANY
Coolant Pumps - Front (XFD)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Battery Control Module Bracket Nut [2x] - - 9 N.m (80 lb in) Heater Coolant Pump Replacement
2 Heater Water Auxiliary Pump Bracket Nut [2x] - - 9 N.m (80 lb in) Generator Coolant Pump Replacement

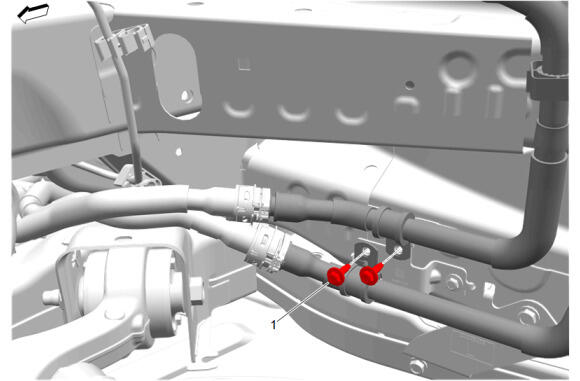

GM5971915Courtesy of GENERAL MOTORS COMPANY
Drive Motor Battery Charger Receptacle Coolant Inlet Hose Bracket Bolt

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Battery Charger Receptacle Coolant Inlet Hose Bracket Bolt [2x] - - 9 N.m (80 lb in) Drive Motor Battery Charger Receptacle Coolant Inlet Hose Replacement

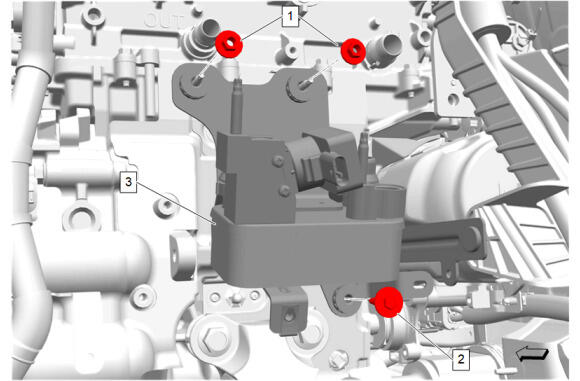

GM5997424Courtesy of GENERAL MOTORS COMPANY
Drive Motor Battery Coolant Cooler (XFD)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Drive Motor Battery Coolant Cooler Bracket Nut [2x] - - 9 N.m (80 lb in) Drive Motor Battery Coolant Cooler Replacement (XFD)
2 Drive Motor Battery Coolant Cooler Bracket Bolt - - 9 N.m (80 lb in)

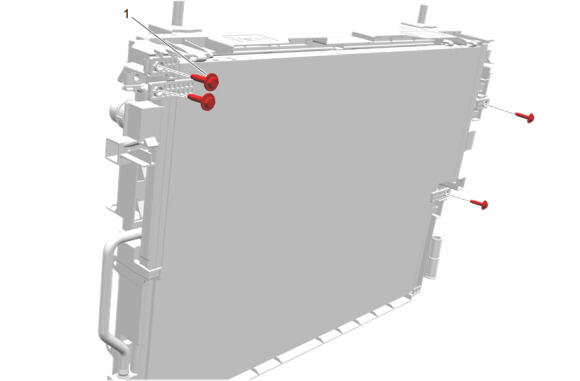

GM6125807Courtesy of GENERAL MOTORS COMPANY
Electric Drive Transmission Radiator Fan Shroud Attachment

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Bolt [4x] - - 9 N.m (80 lb in) Electric Drive Transmission Radiator Fan Shroud Attachment Repair

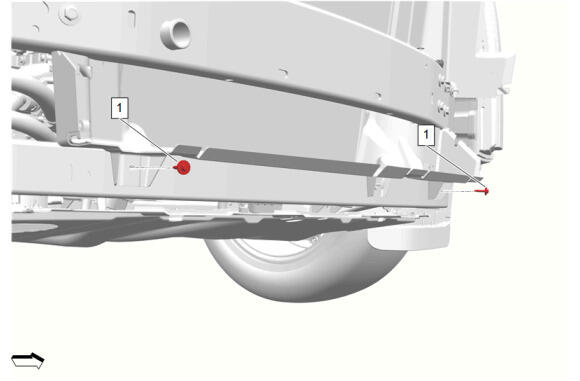

GM5969140Courtesy of GENERAL MOTORS COMPANY
Radiator Air Front Lower Baffle Bolt

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Radiator Air Front Lower Baffle Bolt [2x] - - 2.5 N.m (22 lb in) Radiator Air Front Lower Baffle Replacement

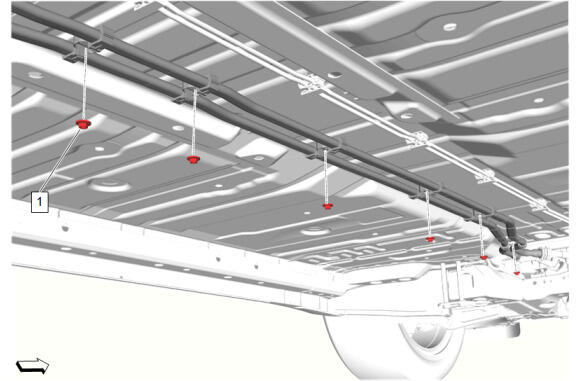

GM5967265Courtesy of GENERAL MOTORS COMPANY
Rear Electric Drive Transmission Module Coolant Extension Hose Clip Nut

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Electric Drive Transmission Module Coolant Extension Hose Clip Nut [6x] - - 4.5 N.m (40 lb in) Rear Electric Drive Transmission Module Coolant Extension Hose Replacement

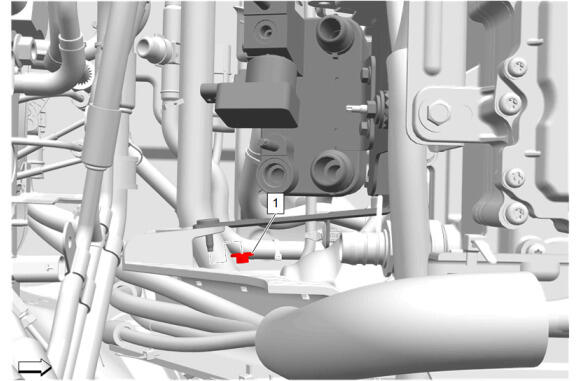

GM5997421Courtesy of GENERAL MOTORS COMPANY
Wiring Harness Bracket Nut (XFD)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Wiring Harness Bracket Nut - - 9 N.m (80 lb in) Drive Motor Battery Coolant Cooler Replacement (XFD)
