Installing Components On the Sub-Frame

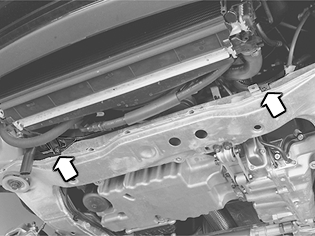

Fig 1: Cable Conduit And Ground Lead Bracket Screws On Sub-Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the screw for the cable conduit
• the holder for the ground lead.

Applies only to cars with parking heaters

Install the heater on the sub-frame.

Install the fuel line for the heater in the holders on the sub-frame.
