Fog Lamp Unit Alignment
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

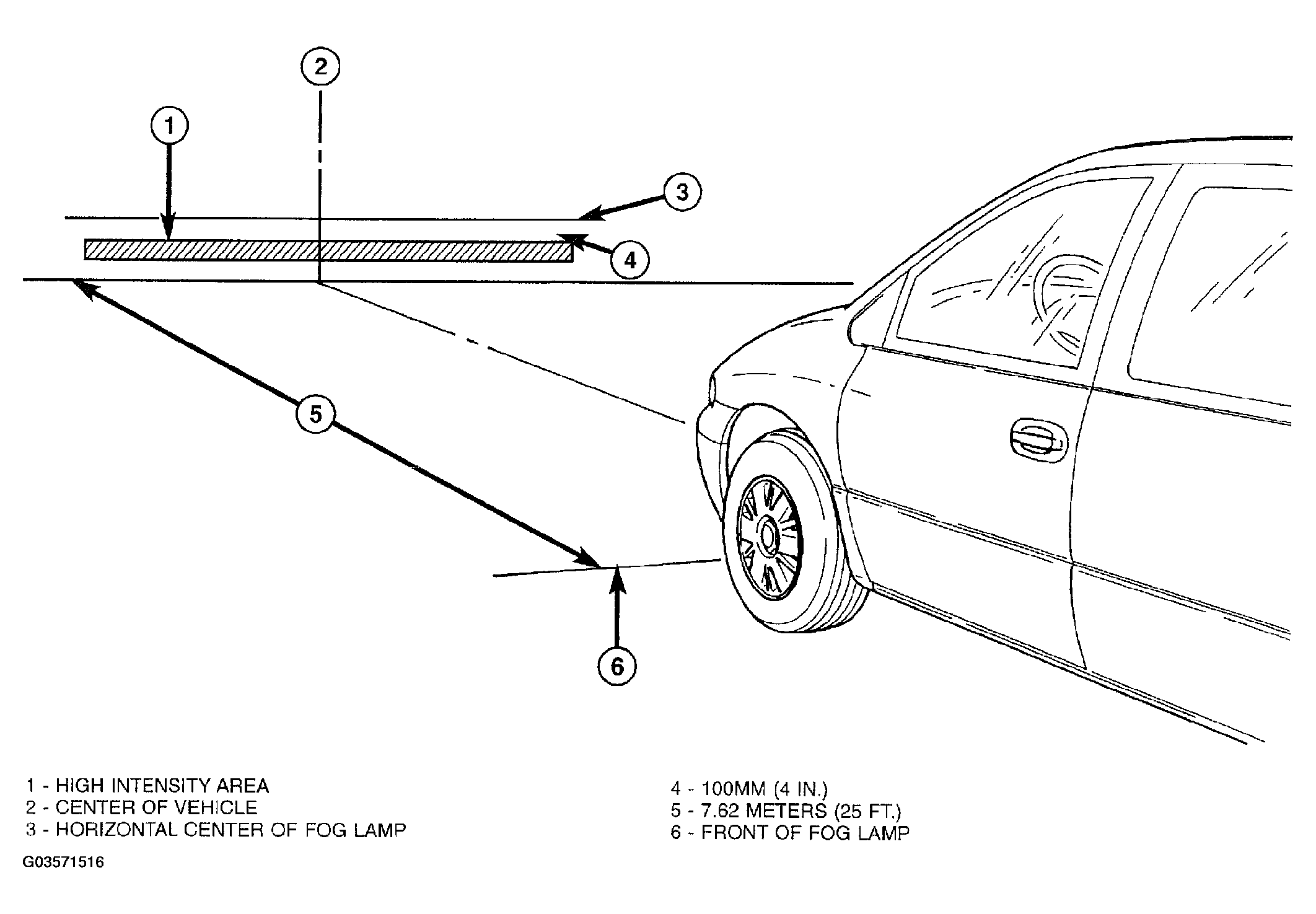

Prepare an alignment screen (Refer to STANDARD PROCEDURE - HEADLAMP UNIT ALIGNMENT ). A properly aligned fog lamp will project a pattern on the alignment screen 100 mm (4 in.) below the fog lamp center line and straight ahead (Fig 1). To improve visual interpretation of the fog lamp pattern on the alignment screen, the headlamps should be in the "OFF" position.
The fog lamps are adjusted vertically by a adjustment screw located just above the fog lamp unit in the front.
