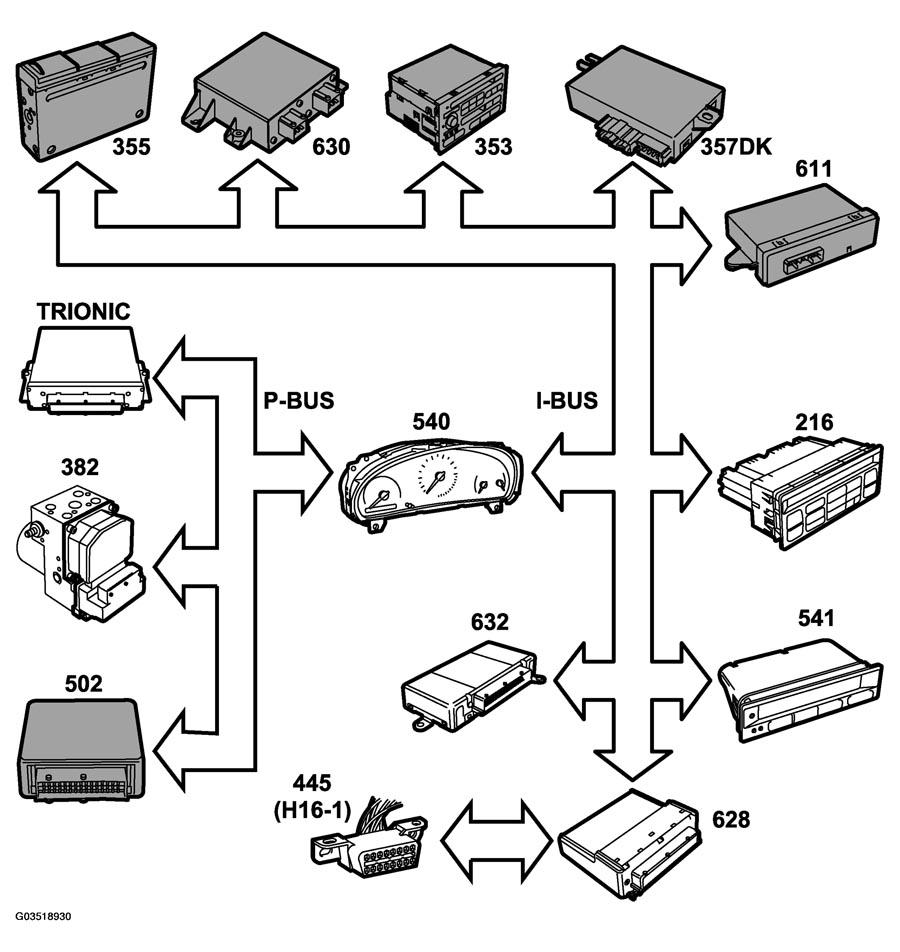

Control Module Inputs, Bus
- Rear lights LH (on/off) from TWICE (632)
- Rear lights RH (on/off) from TWICE (632)
- Driver's door (open/closed) from TWICE (632)
- Passenger door (open/closed) from TWICE (632)
- Rear door LH (open/closed) from TWICE (632)
- Rear door RH (open/closed) from TWICE (632)
- Boot lid (open/closed) from TWICE (632)
- Hazard flashers (on/off) from TWICE (632)
- A/C (on/off) from ACC (216)
- Electrically heated rear window (on/off) from ACC (216)
- Vehicle speed (km/h, mph) from MIU (540)
- Rheostat value (%) from SID (541)
- Rheostat Night Panel (%) from SID (541)
- Night Panel (yes/no) from SID (541)
- Display illumination (%) from SID (541)
- Outdoor temperature (°C) from SID (541)
- Engine has started (yes/no) from TRIONIC
- Coolant temperature (°C) from TRIONIC
- Wheel speed RL (km/h) from TC/ABS (382)
- Right-hand drive (yes/no)
- Washer fluid level (on/off)
- Diagnostics communication
For a further description of the control module's input information from the bus, CONTROL MODULE OUTPUTS
For a further description of diagnostics, see BUS AND DIAGNOSTICS COMMUNICATION
