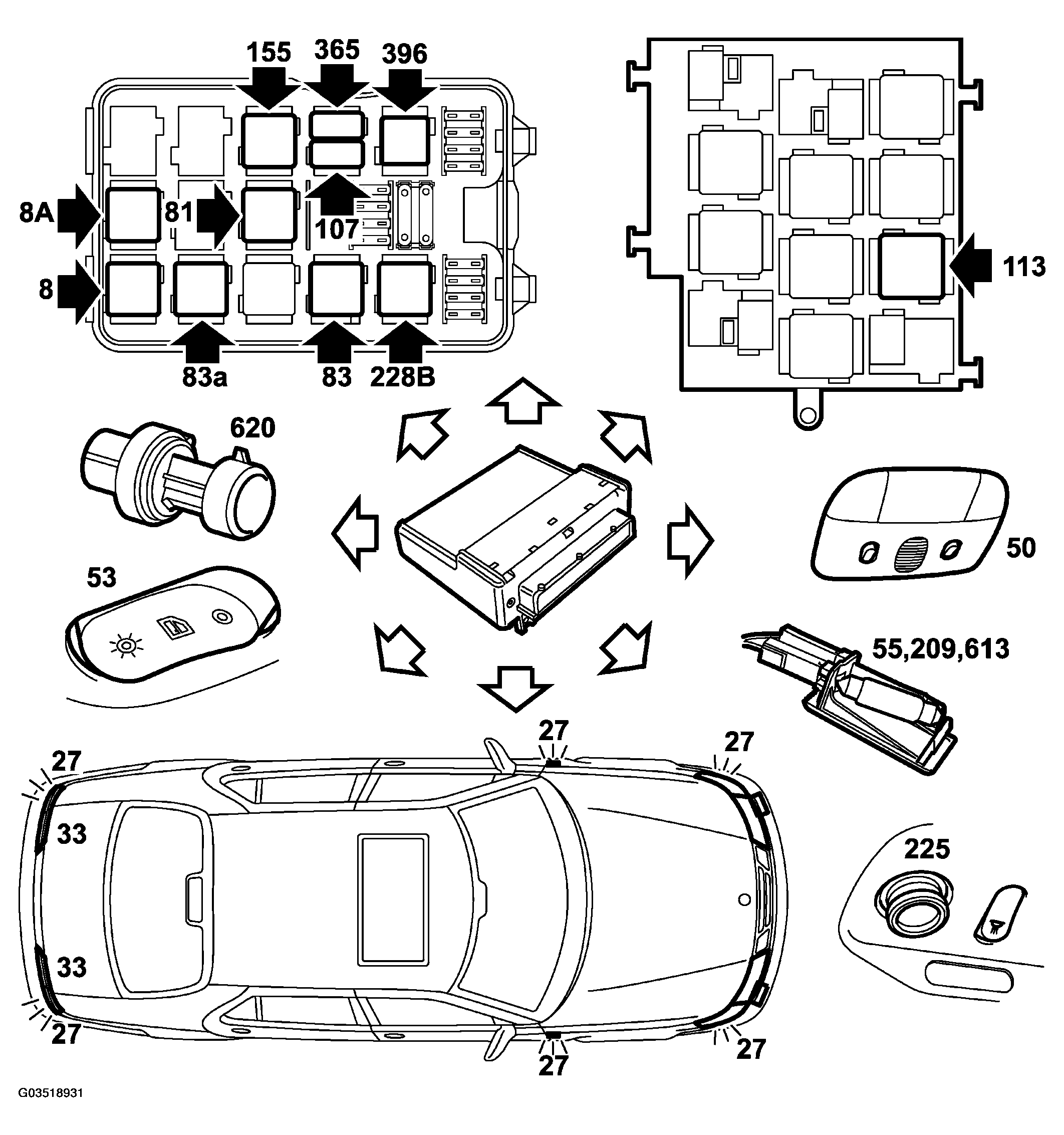

Control Module Outputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Dipped beam relay (8)
- Main beam relay (8a)
- Front fog lights, relay (107)
- Rear fog light, lamp (33)
- Direction indicators LH lamp (27)
- Direction indicators RH lamp (27)
- Interior lighting, light switch (53)
- Courtesy/floor lighting, lamps (209/613)
- Reading lamp (225)
- Luggage compartment lamp (55)
- Instrument and control lighting, lamps
- Intermittent wiper relay, windscreen (83)
- Rear window intermittent wiper, relay (83a)
- Headlamp wiper, relay (365)
- Electrically heated rear window and door mirrors, relay (113)
- Radiator fan, low-speed relay (396)
- Radiator fan, high-speed relay 1 (155)
- Radiator fan, high-speed relay 2 (81)
- A/C pressure sensor, power supply (620)
