Installation Procedure

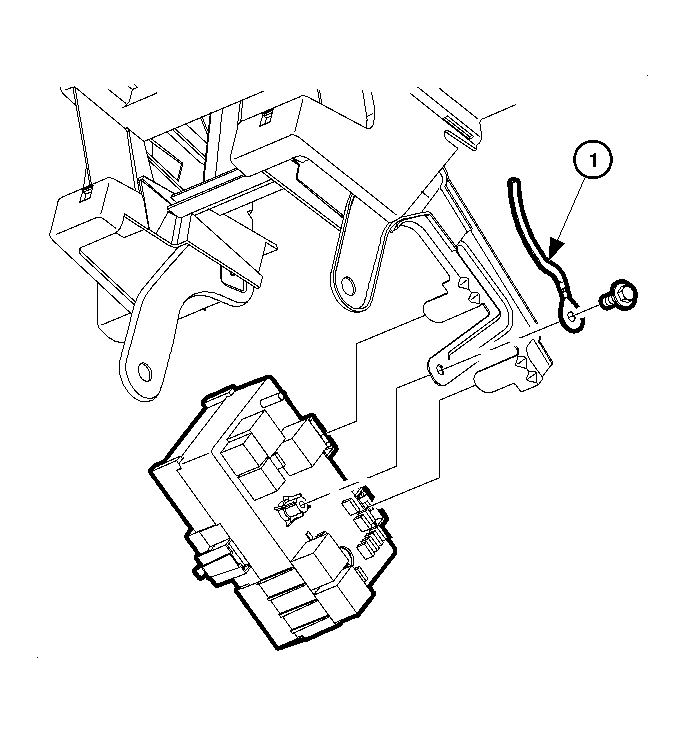

    Fig 1: Removing/Installing Fuse Block & Attaching Ground Wire & Bolt
    GM934747Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the fuse block and attach the ground wire (1) and attach the bolt. Tighten the bolt to 10 N.m (89 lb in).

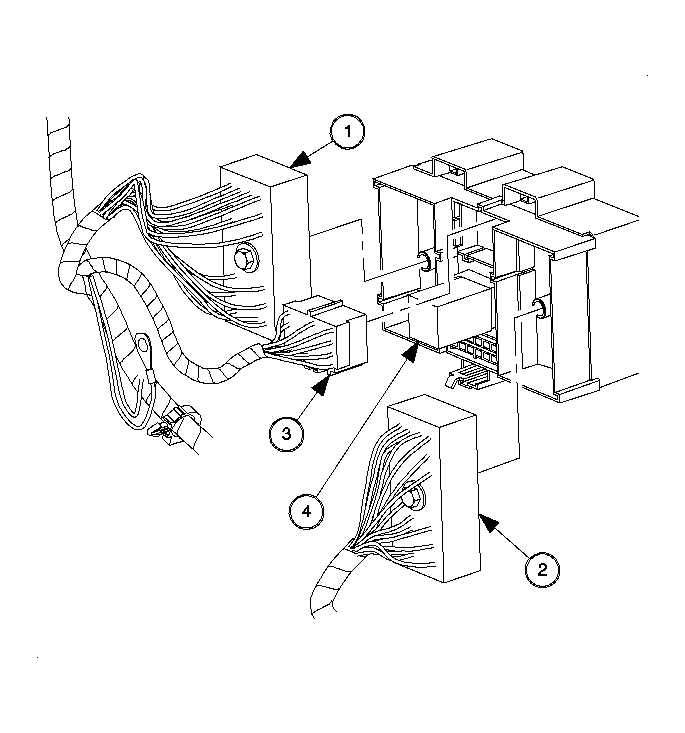

    2. Fig 2: Identifying Harness Connectors
    GM1232488Courtesy of GENERAL MOTORS CORP.
  2. Connect the harness connectors to the back of the I/P fuse block (4). Tighten the connectors to 4 N.m (35 lb in).
  3. Install the console. Refer to Console Replacement .
  4. Connect the positive battery cable. Tighten the bolt to 17 N.m (13 lb ft).
  5. Connect the negative battery cable. Tighten the bolt to 17 N.m (13 lb ft).
  6. Install the battery cooling box cover and install the screws. Tighten the screws to 2 N.m (18 lb in).
  7. Set the radio stations to the preset selections.
