Console Replacement

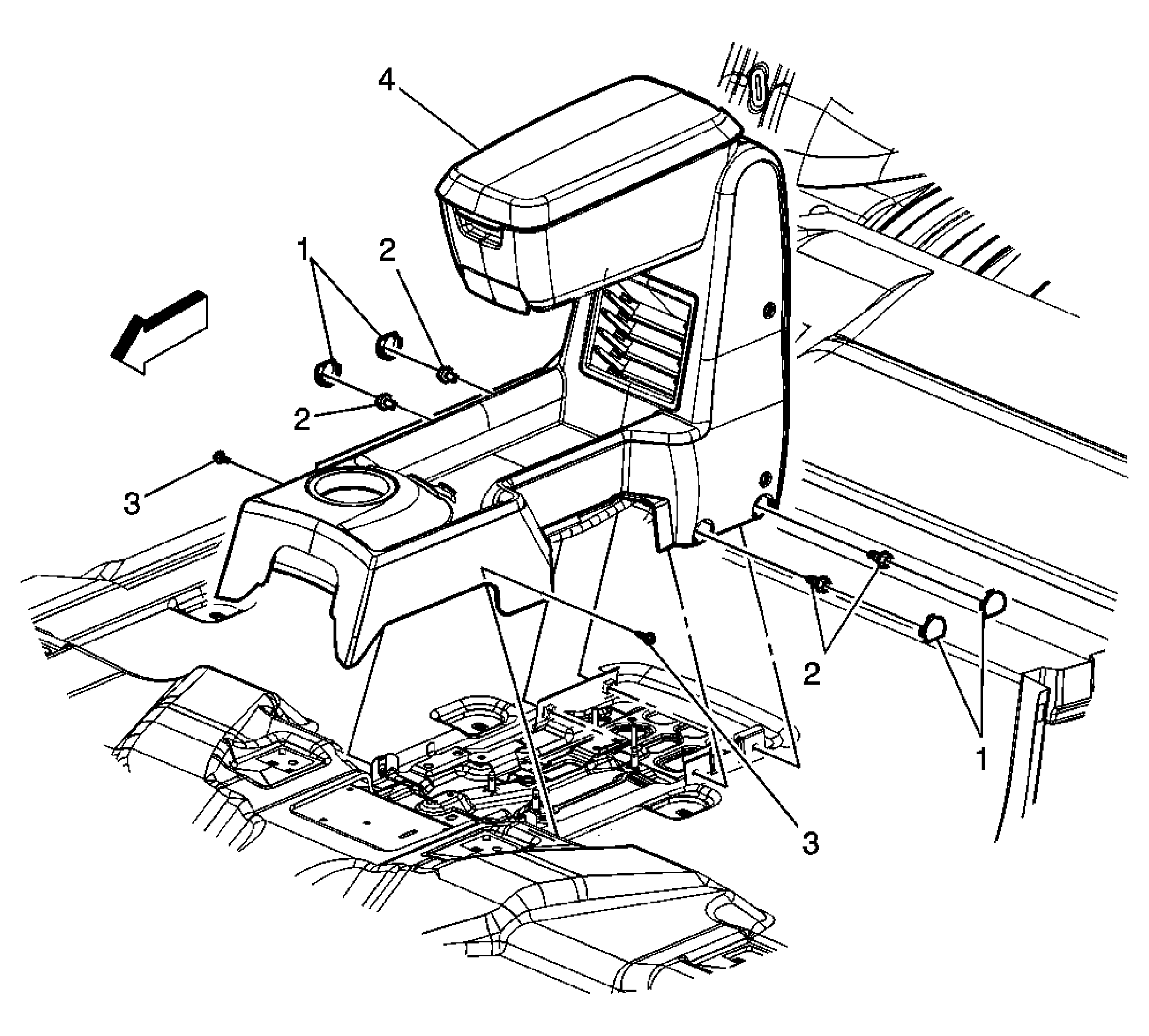

Fig 1: View Of Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Floor Rear Console Trim Cap (Qty: 4)
2	Front Floor Rear Console Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 25 N.m (18 lb ft)
3	Front Floor Rear Console Bolt (Qty: 2) Tighten: 2 N.m (18 lb in)
4	Front Floor Rear Console Assembly Procedure: Disconnect the electrical connector.
