Special Tool

WARNING: This page is about a different variant/trim than selected.
Tool Tool number and name Supersession Application

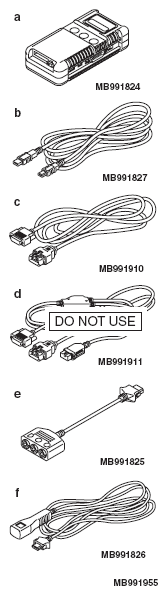

G09650567
 MB991955
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991825
  6. MB991826

M.U.T.-III Sub Assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB Cable
  3. M.U.T.-III Main Harness A (Vehicles with CAN communication system)
  4. M.U.T.-III Main Harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for Chrysler models only)
  6. M.U.T.-III Adapter Harness
  7. M.U.T.-III Trigger Harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly.
Checking the AYC (Diagnosis display, service data display and calibration by using the scan tool)
G09650568
 MD998330
Oil pressure gauge		 - Hydraulic pressure measurement
G09650569
 MB991705
Hose adapter		 -
G09650570
 MB991551
Bearing outer race installer		 - Press-fitting of the oil seal (AYC differential mechanism part: use together with MB990938)
G09650571
 MB991245
Lower arm bush ring		 - Press-fitting of the oil seal (AYC differential torque transfer mechanism part)
G09650572
 MB990767
Front hub and flange yoke holder		 MB990767-01 Hub fixing
G09650573
 MB991618
Hub bolt remover		 General service tool Removal of the hub bolt
G09650574
 MB990241
  1. MB990242
  2. MB990244

Axle shaft puller
  1. Puller shaft
  2. Puller bar
 MB990241-01 or General service tool
  • Removal of the drive shaft
  • Removal of the rear hub assembly
G09650575
 MB991354
Puller body		 General service tool
G09650576
 MB990211
Slide hammer		 General service tool Rear hub assembly removal
G09650577
  1. MB991017
  2. MB990998
  3. MB991000

A, B: Front hub remover and installer
C: Spacer		 MB990998-01
  • Provisional holding of the wheel bearing
  • Hub rotation starting torque measurement
  • Measurement of wheel bearing end play
    NOTE: MB991000, which belongs to MB990998, should be used as a spacer.
G09650578
 MB991897 or MB992011
Ball joint remover		 MB991113-01, MB990635-01 or General service tool Self locking nut removal
NOTE: Steering linkage puller (MB990635 or MB991113) is also used to disconnect knuckle and tie rod end ball joint.
G09650579
 MB990850
End yoke holder		 - Companion flange fixing
G09650580
 MB990925
  1. MB990926 - MB990937
  2. MB990938
  3. MB990939

Bearing and oil seal installer set
  1. Installer adapter
  2. Bar
  3. Brass bar
 MB990925-01 or General service tool Press-fitting of differential carrier oil seal (Use together with MB991115)
G09650581
 MB991159
Bushing remover and installer
  1. MB991162 Bolt
  2. MB991218 Bearing
 - Removal of the rear suspension crossmember bushing
NOTE: When press-fitting the bushing, use the bearing included in MB992107.
G09650582
 MB990847
Base		 -
G09650583
 MB992234
Bearing		 -
G09650584
 MB992235
Adapter		 -
G09650585
 MB992253
Remover and installer		 -
G09650586
 MB992254
Base		 -
G09650587
 MB990326
Preload socket		 General service tool Measurement of the wheel bearing rotation starting torque
G09650588
 MB990685
Torque wrench		 General service tool
BEARING AND OIL SEAL INSTALLER DIMENSION SPECIFICATION

Tool Type Tool number O D mm (in)
G09650589
 A MB990926 39.0 (1.54)
MB990927 45.0 (1.77)
MB990928 49.5 (1.95)
MB990929 51.0 (2.00)
MB990930 54.0 (2.13)
MB990931 57.0 (2.24)
MB990932 61.0 (2.40)
MB990933 63.5 (2.50)
MB990934 67.5 (2.66)
MB990935 71.5 (2.81)
MB990936 75.5 (2.97)
MB990937 79.0 (3.11)
B MB990938 -
C MB990939 -
