Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • The parts indicated by *1 should be temporarily tightened, and then fully tightened with the vehicle standing on the ground and the curb weight condition.
  • The parts indicated by *1 are the nuts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

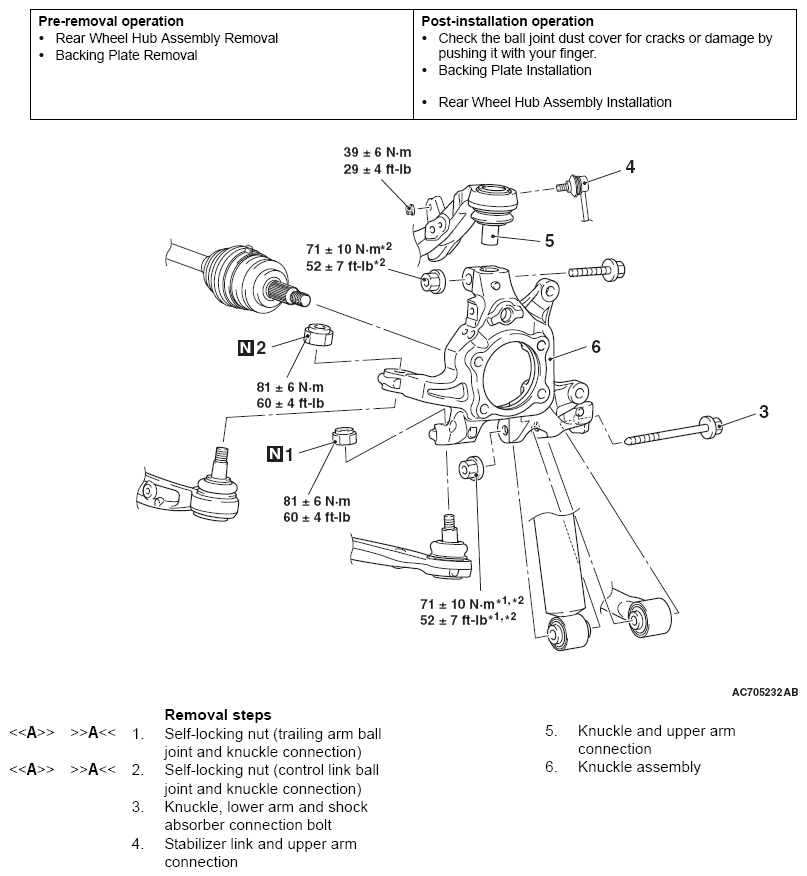

Fig 1: Removing/Installing Knuckle With Torque Specification
G09650618Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
