Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • The part indicated by * is the bolt with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.

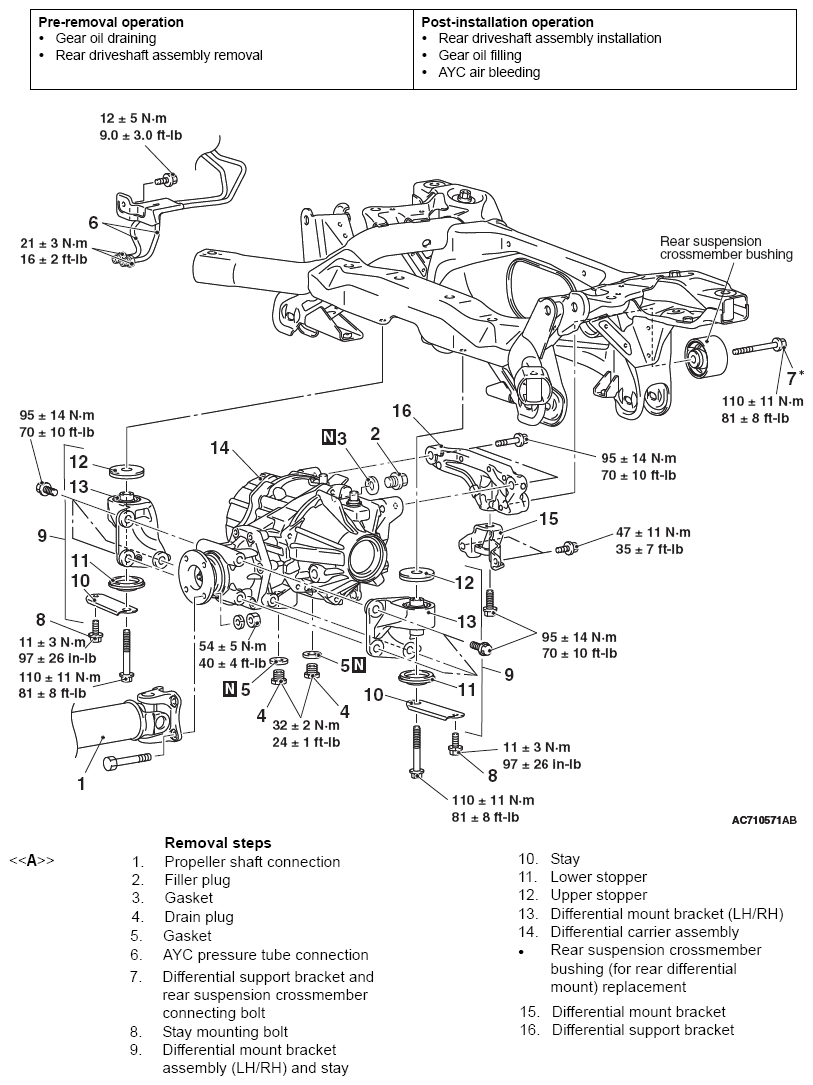

Fig 1: Removing/Installing Differential Carrier Assembly With Torque Specification
G09650638Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
