Disassembly And Reassembly: Notes

WARNING: This page is about a different variant/trim than selected.

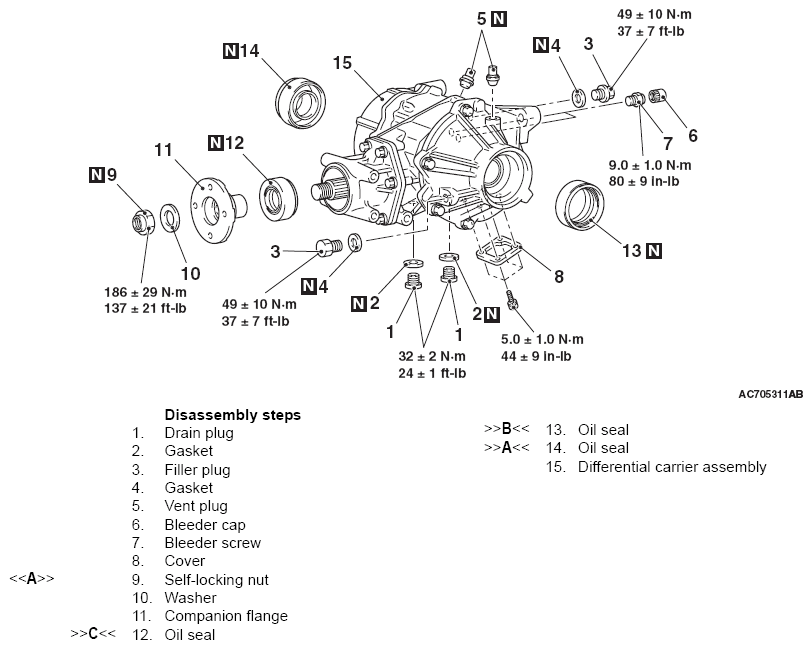

Fig 1: Disassembled View Of Rear Differential
G09650642Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
