Removal And Installation: Notes

CAUTION: When the hydraulic unit (integrated with ASC-ECU) is replaced, after turning the electric motor switch ON or OFF (vehicle information from ETACS-ECU is registered), always carry out the calibration of steering wheel sensor at one time (Refer to STEERING WHEEL SENSOR CALIBRATION ) .
NOTE: ASC-ECU is located in the hydraulic unit.

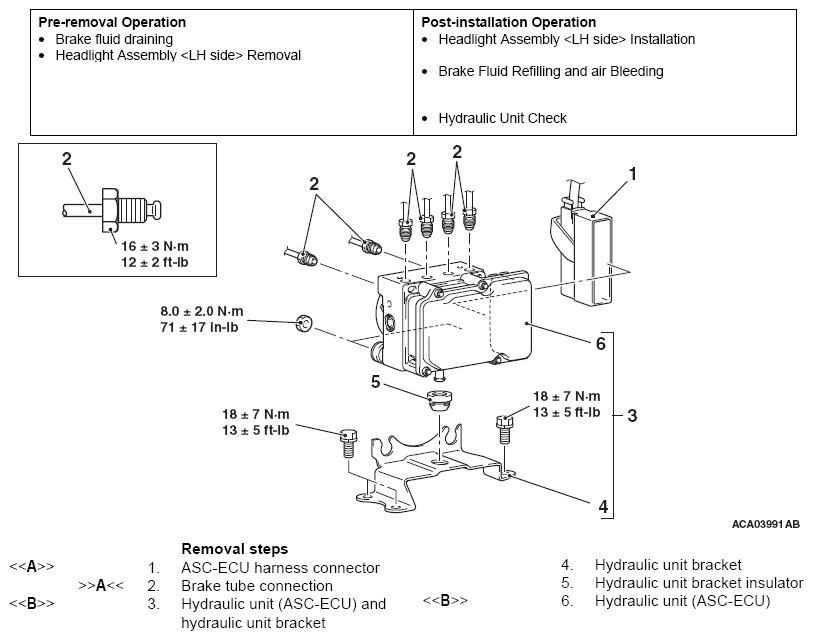

Fig 1: Removing Order Of Hydraulic Unit With Torque Specifications
G08297816Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
