Twin Clutch-SPORTRONIC Shift Transmission (TC-SST) On-Vehicle Service- Lancer Evolution
>>
Transfer Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

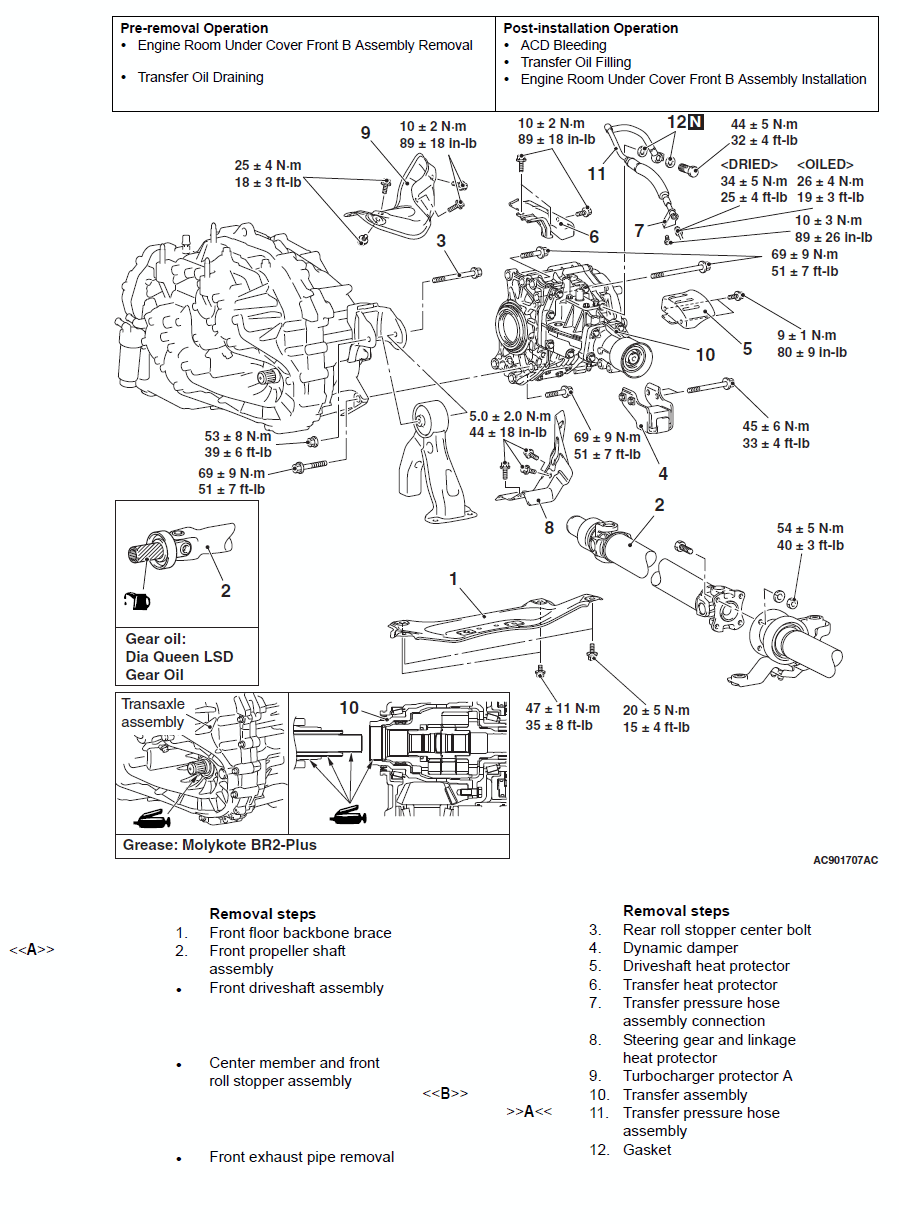

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
