Key Interlock Mechanism Check
- Perform the following checks.KEY INTERLOCK MECHANISM CHECK REFERENCE CHART
Inspection procedure Check conditions Items to be checked (Normal status) 1 Brake pedal: Depressed Ignition switch position: LOCK (OFF) or ACC The shift lever cannot be moved out of the P position. 2 Ignition switch position: ON The shift lever can be moved from the P position to other positions smoothly. 3 Shift lever position: Other than P The ignition switch cannot be turned to the LOCK (OFF) position. 4 Shift lever position: P The ignition switch can be turned to the LOCK (OFF) position smoothly. - If there is a problem with above operations, install the key interlock cable according to the procedure below. (Automatic adjustment)
- Disconnect the key interlock cable connection (shift lever side). (Refer to KEY INTERLOCK AND SHIFT LOCK MECHANISMS
.)CAUTION: Leave the ignition switch in the LOCK (OFF) position until the key interlock cable installation is completed.
- Move the shift lever to the P position, and turn the ignition switch to the LOCK (OFF) position.
- Install the tip of key interlock cable to the lock cam of shift lever assembly, using a caution not to twist the inner cable.
- Install the adjuster case with its lock guide pulled up (unlocked).

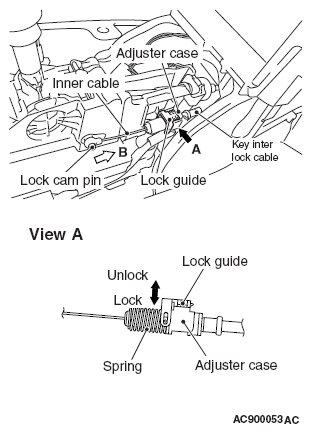

- With the lock cam pin pushed in the direction B as shown in the illustration to remove the slack from the key interlock cable, securely lower the lock guide and lock it.NOTE: The lock position of the key interlock cable is automatically adjusted by a spring.
- Disconnect the key interlock cable connection (shift lever side). (Refer to KEY INTERLOCK AND SHIFT LOCK MECHANISMS
.)
