Removal And Installation: Notes

CAUTION:
  • If a fluid leakage is present in the area around the oil pan, clean around the oil pan. After cleaning, warm up the engine. Only if a fluid leakage is present in the area around the oil pan again, replace the oil pan assembly.

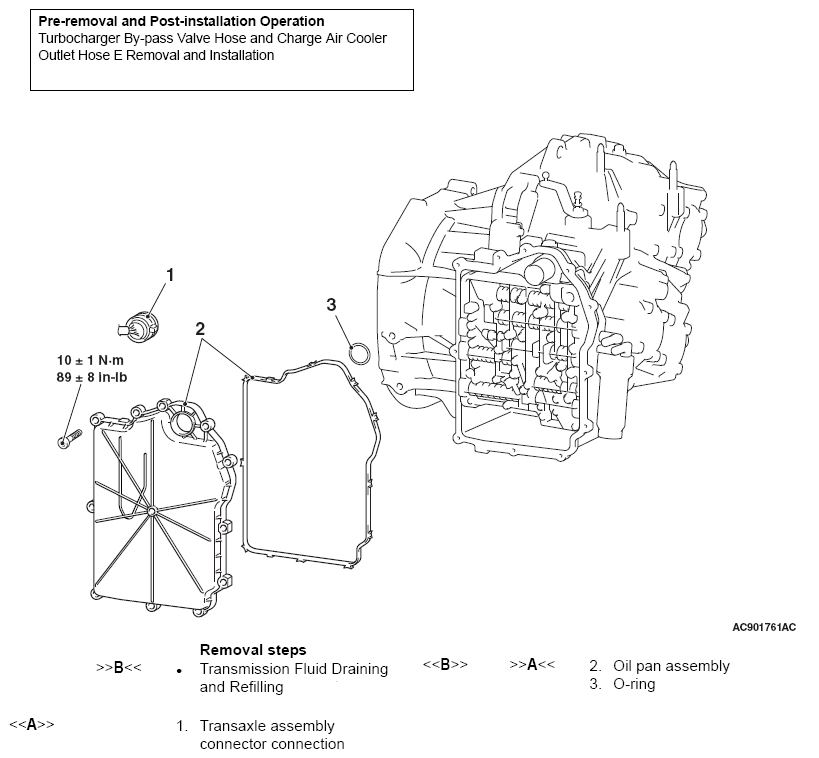

    Fig 1: Oil Pan Components With Torque Specifications
    G06677275Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
