Home >> Mitsubishi >> 2011 >> Lancer Evolution MR >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Twin Clutch-SPORTRONIC Shift Transmission (TC-SST) On-Vehicle Service- Lancer Evolution >> Key Interlock And Shift Lock Mechanisms >> Removal And Installation >> Notes

Removal And Installation: Notes

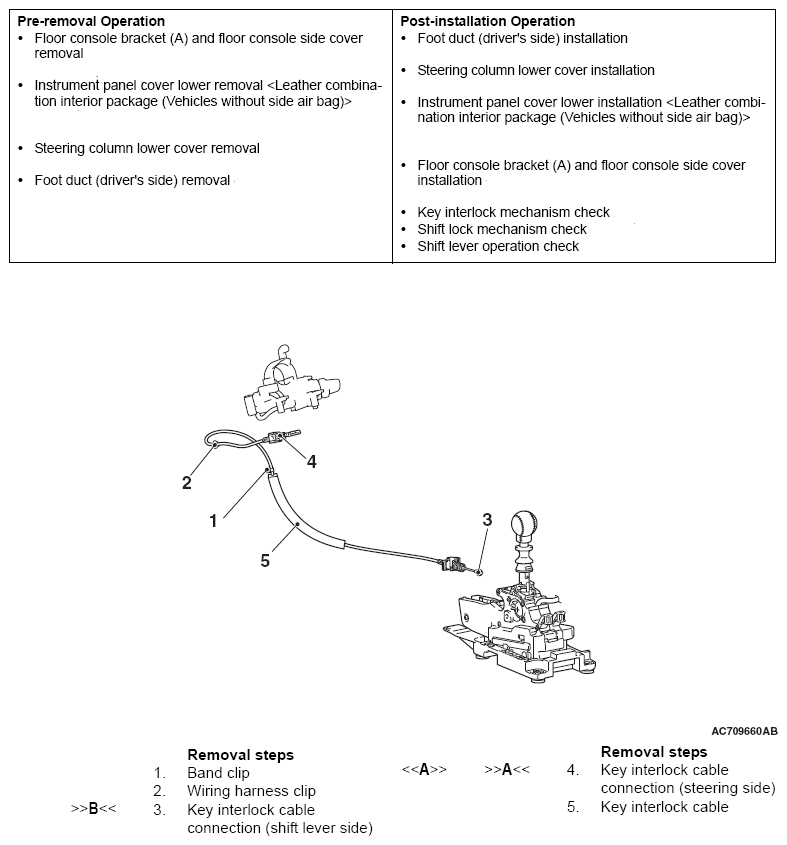

Fig 1: Key Interlock And Shift Lock Mechanisms Components

G06677259

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
