Removal And Installation: Notes

WARNING:
  • Before removing the air bag module, refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING .
  • When removing and installing the steering wheel, do not let it bump against the air bag module.

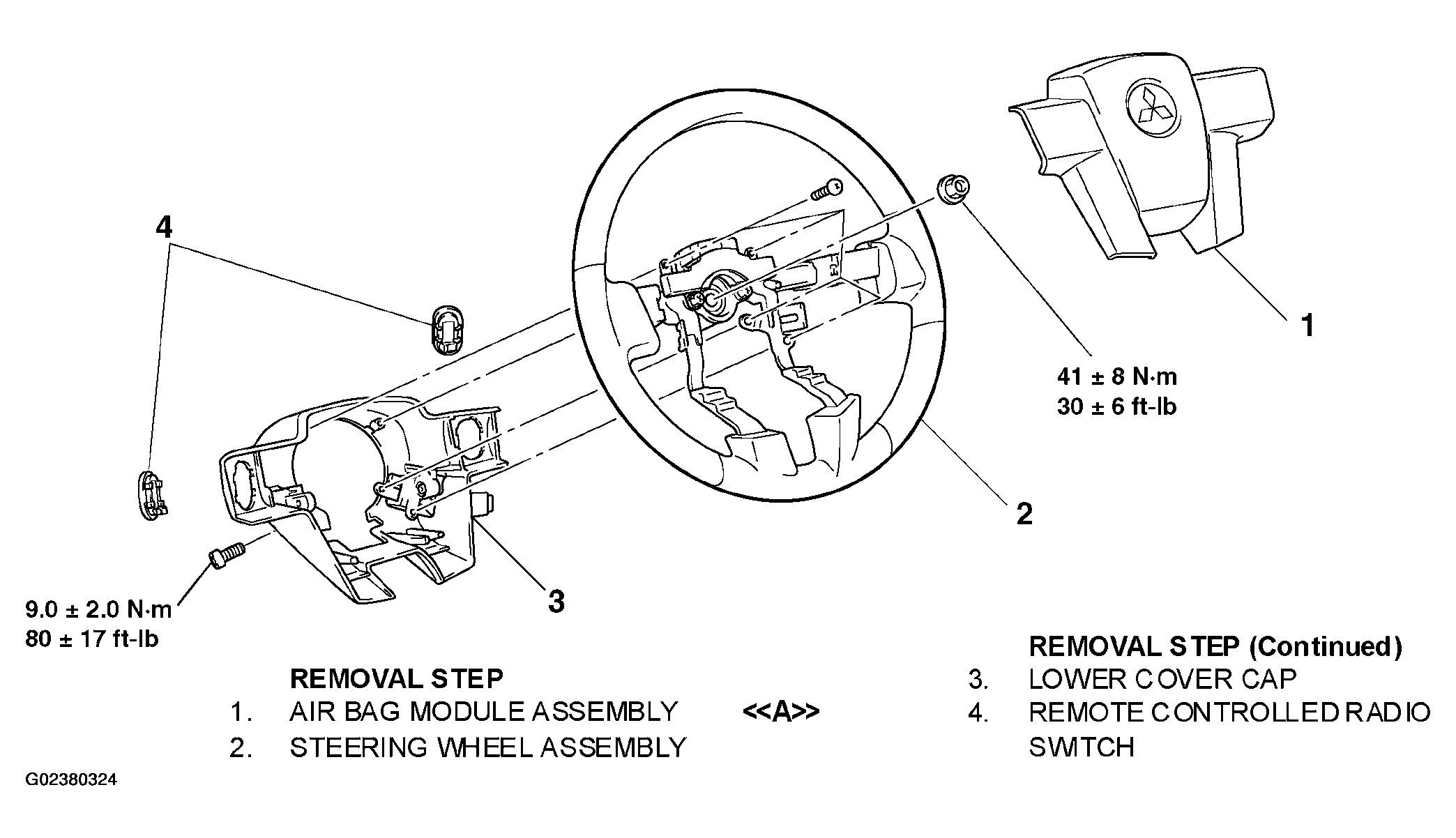

    Fig 1: Removing Remote Controlled Radio Switch (1 Of 2)
    G02380324Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
