Remove/Install Front Module - Ar88.30-D-1064SD
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
Model 906 with engine 651
Shown on model 906 with engine 646
Shown on model 906 with engine 646

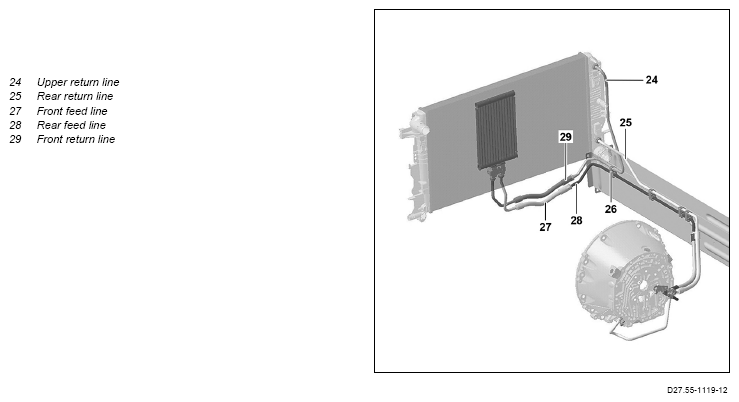

Shown on model 906 with engine 642 and transmission 722.9 with automatic transmission oil cooler integrated into the cooler

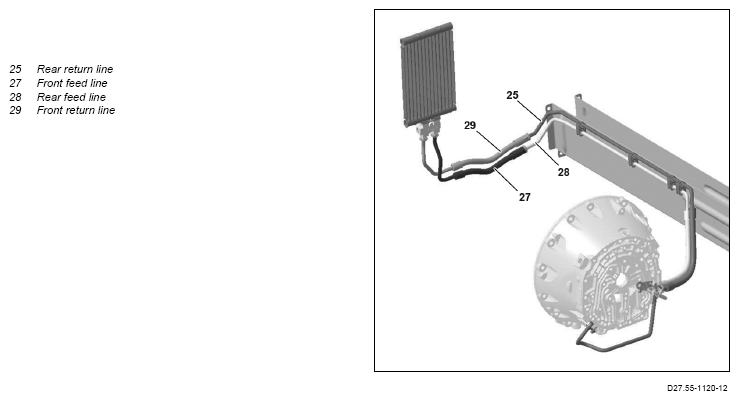

Shown on model 906 with engine 651 and transmission 722.9
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| Risk of burns and scalding when handling hot fluids and components they come into contact with. Risk of injury to skin and eyes when handling hot fluids. | Wear protective gloves, protective clothing and safety glasses, if necessary. Pour hot fluids in suitable containers only. | AS00.00-Z-0033-01A | |
| Notes on automatic transmission | Model 906 with engine 651 with transmission 722.6 Model 906 with engine 651 with transmission 722.9 |
AH27.19-P-0001-01NKB | |
| Remove/install | |||
| 1 | Discharge air conditioning system. | Model 906 with engine 651 with code HK4 (Rear air conditioning, reinforced) | AR83.30-D-1760WE |
| Model 906 with engine 651 with code H08 (Roof-mounted air conditioning system, reinforced) with code HH9 (Air conditioner, automatic heater control) except code HH7 (Roof-mounted air conditioning system, basic) except code HK4 (Rear air conditioning, reinforced) Model 906 with engine 651 with code HH7 (Roof-mounted air conditioning system, basic) with code HH9 (Air conditioner, automatic heater control) except code H08 (Roof-mounted air conditioning system, reinforced) except code HK4 (Rear air conditioning, reinforced) Model 906 with engine 651 with code HH9 (Air conditioner, automatic heater control) except code H08 (Roof-mounted air conditioning system, reinforced) except code HH7 (Roof-mounted air conditioning system, basic) except code HK4 (Rear air conditioning, reinforced) except code HX1 (Refrigerant R-1234yf) |
AR83.30-D-1760D | ||
| 2 | Remove transmitter key. | ||
| 3 | Remove front bumper. | Model 906 with code XM0 (Facelift) | AR88.20-D-2000M |
| Model 906 except code XM0 (Facelift) except code ZX8 (Dodge brand scope) except code ZX9 (Freightliner (FTL) brand scope) | AR88.20-D-2000SD | ||
| MODEL 906 with CODE ZX8 (Dodge brand scope) or with CODE ZX9 (Freightliner (FTL) brand scope) | AR88.20-D-2000SE | ||

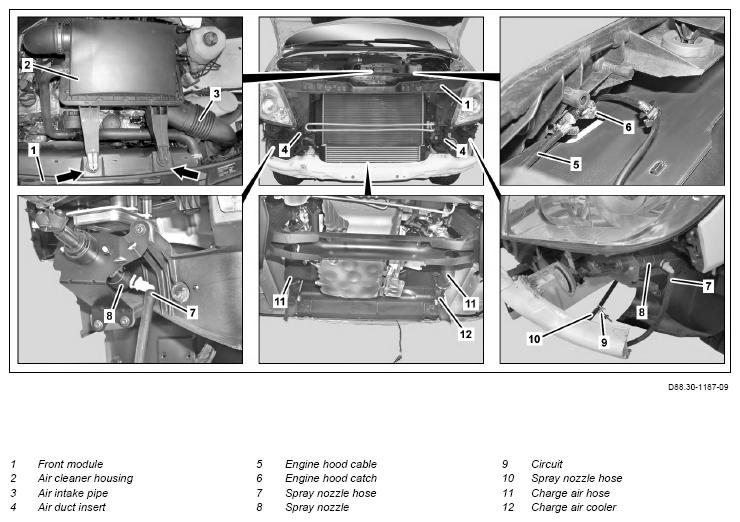

| 4 | Remove air duct inserts (4). | ||
| 5 | Remove air intake pipe (3). | ||
| 6 | Pull air filter housing (2) out of supports on front module (1) (arrows). | Model 906 | |
| 7 | Drain off coolant. | AR20.00-D-1140SD | |
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Risk of explosion/risk of fire caused by highly flammable materials in the vicinity of damaged xenon bulbs. Risk of injury caused by UV light, hot components on xenon headlamps and glass splinters produced by bursting xenon bulbs. Risk of poisoning caused by inhalation of mercury vapors and by swallowing of/skin contact with toxic salts and mercury compounds. | Do not touch parts conducting high voltage. Persons with active electronic implants (e.g. cardiac pacemakers) must never work on xenon headlamps. Switch off the entire lighting system. Wear insulated safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the danger zone. Ensure sufficient ventilation in the working area. | AS82.10-Z-0001-01A | |
| 8 | Disconnect electrical lines to remove front module (1). | AR88.30-D-1064-02SD | |
| 9 | Unhook engine hood release cable (5) from engine hood catch (6) and lay down to side. | ||
| 10 | Disconnect coolant hoses from cooler. | AR20.20-D-3865-09SD | |
| *BA00.10-N-1002-04A | |||
| 11 | Disconnect charge air hose (11) from charge air cooler (12). | Model 906 with engine 651 | AR09.41-D-1311-01WE |
| 12 | Immediately plug connections with clean protective covers. | Fig 9 | |
| 13 | Disconnect refrigerant lines from condenser. | Model 906 with code HH9 (Semiautomatic controlled air conditioning, TEMPMATIC) | |
| Compressor oils (specification 362.0) | BB00.40-P-0362-00A | ||
| *BA83.30-N-1005-01F | |||
| 14 | Immediately plug connections with clean stop plug. | Model 906 with code HH9 (Semiautomatic controlled air conditioning, TEMPMATIC) |
*129589009100 |
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| 15 | Disconnect hydraulic lines from radiator of power steering. | Model 906 up to 02.12.11 | AR46.25-D-3020-01SD |
| Model 906 as of 02.12.11 | AR46.25-D-3020-01SE | ||
| *129589009100 | |||
| Fig 2 | |||
| 16.1 | Disconnect upper return line (24) from cooler. | Model 906 with engine 651 with transmission 722.686 | AR27.55-D-0100-01US |
| *129589009100 | |||
| 16.2 | Disconnect front feed line (27) from rear feed line (28). | Model 906 with engine 651 with transmission 722.908 | AR27.10-D-0501-03WE |
| *129589009100 | |||
| 17.1 | Disconnect rear return line (25) from cooler. | Model 906 with engine 651 with transmission 722.686 | AR27.55-D-0100-01US |
| *129589009100 | |||
| 17.2 | Disconnect front return line (29) from rear return line (25). | Model 906 with engine 651 with transmission 722.908 | AR27.10-D-0501-03WE |
| *129589009100 | |||
| 18 | Clamp off spray nozzle hose (10) with clamp (9). | Model 906 with code F46 (headlamp cleaning system) except code XM0 (facelift) except code XM5 (Latin America facelift) |
Fig 5 |
| 19.1 | Disconnect spray nozzle hose (7) from spray nozzles (8). | Model 906 with code F46 (headlamp cleaning system) except code XM0 (facelift) |
|
| 19.2 | Unclip spray nozzles (8) from headlamps. | Model 906 with code F46 (headlamp cleaning system) | |
| 20 | Immediately plug connections with clean stop plug. | Model 906 with code F46 (headlamp cleaning system) except code XM0 (facelift) |
*129589009100 |

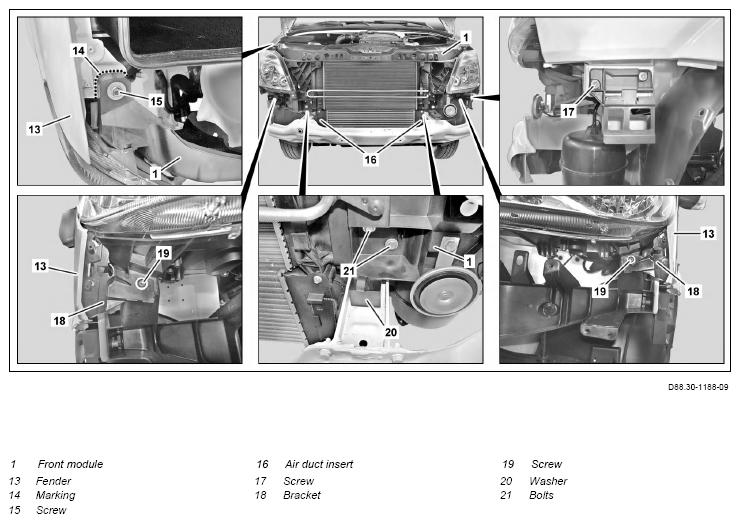

| 21 | Remove screws (17) on both sides. | *BA88.00-N-1002-01B | |
| 22.1 | Unscrew bolts (19) and unclip bracket (18) from fender (13). | Model 906 except code XM0 (Facelift) | |
| 22.2 | Unscrew bolts on fender (13) from front module (1). | Model 906 with engine 651 with code XM0 (Facelift) | |
| 23 | Insert washers (20) between front module (1) and longitudinal member. | Fig 8 | |
| 24 | Install marking (14) on fenders (13) to indicate installation position of front module (1). | Model 906 except code XM0 (Facelift) | |
| 25 | Remove headlamps. | AR82.10-D-4730H | |
| 26 | Remove screws (15) on both sides. | *BA00.10-N-1002-04A | |
| 27 | Remove screw/bolts (21). | *BA88.00-N-1003-01B | |
| 28 | Fold air duct insert (16) toward inside. | ||
| 29 | Lift out front module (1) with aid of helper. | ||
| 30 | Install assembly device on front module (1). | AR88.30-D-1064-01SD | |
| Fig 3 | |||
| Fig 6 | |||
| 31 | Install in the reverse order | ||
| 32 | Charge power-steering pump and bleed. | AR46.30-S-0010S | |
| 33 | Check oil level in automatic transmission and correct if necessary. | Model 906 with engine 651 with transmission 722.9 Model 906 with engine 651 with transmission 722.6 Model 906 with engine 651 with transmission 722.9Transmission without guide tube for oil dipstick |
AR27.00-D-0270WE |
| Model 906 with engine 651 with transmission 722.68 Model 906.1/2/6/7 with engine 271.951 with transmission 722.68 |
AR27.00-D-0270-01A | ||
| Model 906 with engine 651 with transmission 722.9 Transmission with guide tube for oil dipstick | AR27.00-D-0101WE | ||
Model 906 with engine 651 with transmission 722.686Automatic transmission fluid ATF |
*BF27.00-N-1001-01A | ||
| Fig 7 | |||
Model 906 with engine 651 with transmission 722.6 Dipstick |
Fig 1 | ||
| Fig 2 | |||
| 34 | Check feed lines (27, 28) or return lines (24, 25, 29) for leakage when engine is running. | Model 906 with engine 651 with transmission 722.6 Model 906 with engine 651 with transmission 722.9 |
|
| 35 | Check headlamp adjustment and correct if necessary. | ||
| Model 906 with engine 651except code LG0 (Bi-xenon headlamps) except code LG1 (Bi-xenon headlamps with cornering function) | AP82.10-D-8260A | ||
| Model 906 with engine 651 with code LG0 (Bi-xenon headlamps) with code LG1 (Bi-xenon headlamps with cornering function) | AP82.10-D-8260B |
METRIC BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-N-1002-04A | M6X1 | Nm | 9 | 13 |
AIR CONDITIONING
| Number | Designation | Model 906 with code HH9 | |
|---|---|---|---|
| BA83.30-N-1005-01F | Nut, refrigerant lines to condenser | Nm | 6 |
LOCK CROSSMEMBER
| Number | Designation | Model 906 | ||
|---|---|---|---|---|
| BA88.00-N-1002-01B | Bolt, module carrier to upper and lower A-pillar inner section | M8 | Nm | 10 |
LOCK CROSSMEMBER
| Number | Designation | Model 906 | ||
|---|---|---|---|---|
| BA88.00-N-1003-01B | Bolt, module carrier to longitudinal member bracket | M8 | Nm | 20 |
AUTOMATIC TRANSMISSION
| Number | Designation | Transmission 722.683/684/685/68 6 | |||
|---|---|---|---|---|---|
| BF27.00-N-1001-01A | Automatic transmission fluid ATF | Filling capacity - complete refill | Liter | 7, 1 | |
| Filling capacity - oil change | Liter | 7, 1 | |||
| Filling capacity, transmission oil change | with torque converter | Liter | 7, 1 | ||
| without torque converter | Liter | 5, 5 | |||
| Filling capacity, transmission oil change | Sheet | BB00.40-P-0236-14A | |||
