Install Assembly Device For Front Module. - Ar88.30-D-1064-01SD

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Assembly Device (639 589 02 62 00)
G10890526Courtesy of MERCEDES-BENZ USA
Fig 2: Support Plates (906 589 02 62 00)
G10890527Courtesy of MERCEDES-BENZ USA

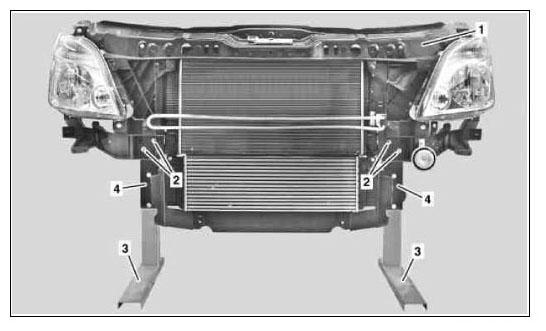

  1. SPECIAL TOOL Install mounting plates (4) on SPECIAL TOOL assembly devices (3).
  2. Fasten front module (1) on SPECIAL TOOL mounting plates (4) with bolts (2).
    G10890528Courtesy of MERCEDES-BENZ USA
