Electric mirror, function - GF88.79-P-0006CE
MODEL 204.0/2 as of model year 2009
MODEL 204.3
MODEL 204.9

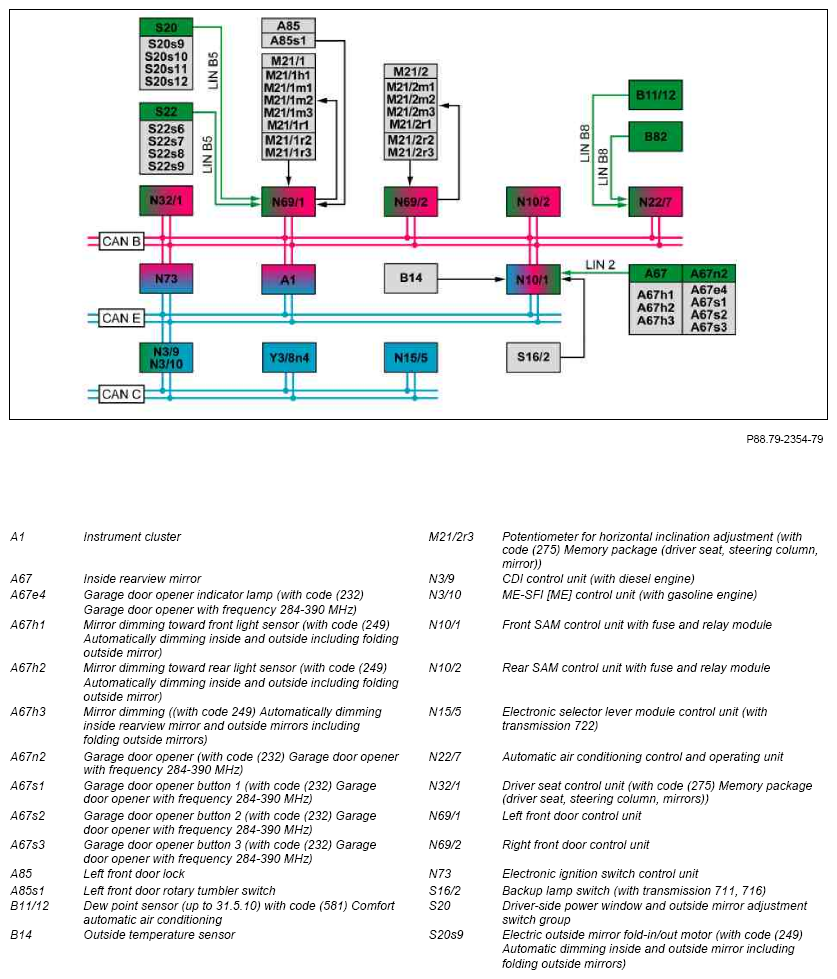

Electric mirror, general
The electric mirror function contains the following partial functions, which are described in separate documents:
- Garage door opener function (with code (232) Garage door opener with frequency 284-390 MHz)
- Mirror lens adjustment left/right outside mirror, function
- Heat left/right outside rearview mirrors function
- Passenger-side outside mirror park position (with code (275) Memory package (driver seat, steering column, mirror), without code (494) USA version and without code (460) Canada version)
- Folding left/right outside mirror function (with code (249) Automatically dimming inside and outside mirrors including folding outside mirrors without code (494) USA version and without code (460) Canada version)
- Automatically dimming outside and inside rearview mirror, function (with code (249) Automatically dimming inside and outside rearview mirror including folding outside mirror)
| Garage door opener, function | MODEL 204.0/2 as of model year 2009 with CODE 232 (Garage door opener with frequency 284-390 MHz) MODEL 204.3/9 with CODE 232 (Garage door opener with frequency 284-390 MHz) | GF68.05-P-0001CE |
| Mirror lens adjustment left/right outside mirror, function | GF88.79-P-2008CE | |
| Heat left/right outside rearview mirrors function | GF88.79-P-2000CE | |
| Passenger-side outside mirror park position, function | MODEL 204.0/2 as of model year 2009 with CODE 275 (Memory package (driver seat, steering column, mirrors)) without CODE 460 (Canada version) without CODE 494 (US version) MODEL 204.3/9 with CODE 275 (Memory package (driver seat, steering column, mirrors)) without CODE 460 (Canada version) without CODE 494 (US version) | GF88.79-P-2006CE |
| Fold left/right outside mirror, function | MODEL 204.0/2 as of model year 2009 with CODE 249 (Automatically dimming inside rearview mirror and outside mirror including fold-in outside mirrors) without CODE 460 (Canada version) without CODE 494 (US version) MODEL 204.3/9 with CODE 249 (Automatically dimming inside rearview mirror and outside mirror including fold-in outside mirrors) without CODE 460 (Canada version) without CODE 494 (US version) | GF88.79-P-2002CE |
| Automatic dimming outside mirror and inside rearview mirror, function | MODEL 204.0/2 as of model year 2009 with CODE 249 (Automatically dimming inside rearview mirror and outside mirror including fold-in outside mirrors) MODEL 204.3/9 with CODE 249 (Automatically dimming inside rearview mirror and outside mirror including fold-in outside mirrors) | GF88.79-P-2010CE |
