Trunk lid power locking unit, location/purpose/design/function - GF80.20-P-4122T

MODEL 211.0 with CODE (881b) Remote trunk locking (RTL)

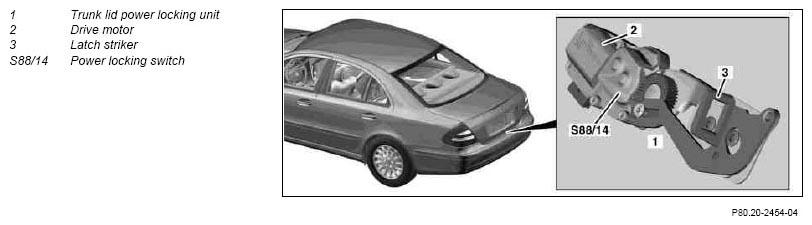

Fig 1: Identifying Trunk Lid Power Locking Unit Components
G07265459Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Trunk lid power locking unit, location The trunk lid power locking unit (1) is located in the rear center section.
Trunk lid power locking unit, purpose Completely and reliably closing the trunk lid
Trunk lid power locking unit, design The trunk lid power locking (1) consists of a pivotable striker eye (3), the drive motor (2) and the power locking switch (S88/14) for sensing the striker eye position.
Trunk lid power locking unit, function   GF80.20-P-4122-01T
