Trunk lid drive unit, location/purpose/design/function - GF80.20-P-4121T
MODEL 211.0 with CODE (881b) Remote trunk locking (RTL)

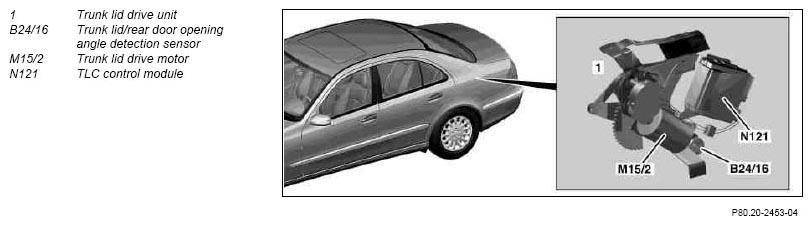

| Trunk lid drive unit, location | The trunk lid drive unit (1) is located in the trunk above the left wheelhouse | |
| Trunk lid drive unit, purpose | Automatically opening and closing the trunk lid. | |
| Trunk lid drive unit, design | The trunk lid drive unit (1) consists of a trunk lid drive motor (M15/2) with integrated sliding clutch, the trunk lid/rear door opening angle detection sensor (B24/16) and the drive mechanism. | |
| Trunk lid drive unit, function | GF80.20-P-4121-01T |
