IFI [ERE] A/C compressor shutoff function - GF07.12-P-3011H
ENGINE 605.910 in MODEL 202.125
ENGINE 605.960 in MODEL 202.128 /188
ENGINE 605.912 in MODEL 210.010 /210 /610
ENGINE 606.912 in MODEL 210.020
ENGINE 606.962 in MODEL 210.025 /225
ENGINE 606.961 in MODEL 140.135
ENGINE 605.962 in MODEL 210.015 /215
Task
To shut off A/C compressor so as to improve acceleration from rest.
Function

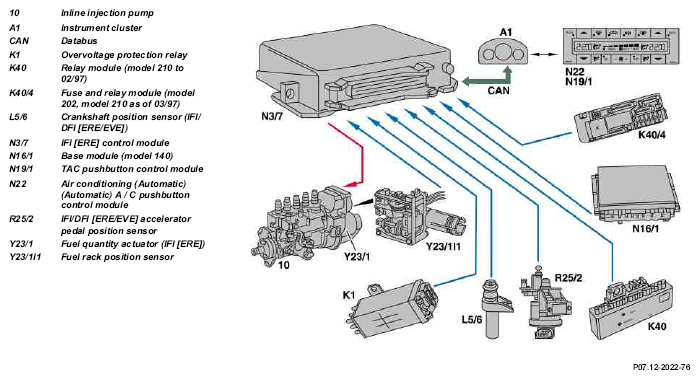

The TAC pushbutton control module (N19/1) or the AAC [KLA] pushbutton control module (N22) receives a signal from the IFI [ERE] control module (N3/7) telling the A/C compressor to switch on or off depending on load and engine speed.
A/C compressor off:
At engine load >90% AND engine speed <1050 rpm
A/C compressor on:
At engine load <90% OR engine speed >2500 rpm
| Overvoltage protection relay location/design/task/function | MODEL 202 to 07/96 | GF07.13-P-3100H | |
| Fuse and relay module location/task/function | Model 202 as of 08/96 Model 210 as of 03/97 |
GF07.13-P-3141H | |
| Relay module location/task/design/function | Model 210 to 02/97 | GF07.13-P-3101H | |
| IFI [ERE] control module location/task/function | Model 202.125 Model 202.128 to 07/96 Model 210.010 to 05/96 Model 210.020 Model 210.020 |
GF07.12-P-3102H | |
| Model 202.128 as of 04/96 Model 202.188 Model 210.010 as of 06/96 Model 210.210/610 Model 210.020 Model 210.015/215 Model 210.025/225 Model 140.135 |
GF07.12-P-3102HA | ||
| Crankshaft position sensor location/task/design/function | GF07.04-P-4116H | ||
| Accelerator pedal position sensor location/task/design/function | GF07.04-P-5029H | ||
| IFI fuel quantity actuator location/task/function | GF07.12-P-3131H | ||
| Fuel rack position sensor location/task/design/function | GF07.04-P-5022H | ||
| TAC pushbutton control module function | GF83.30-P-2000A | ||
| AAC [KLA] pushbutton control module function | GF83.40-P-2000A | ||
| Instrument cluster (A1): K1 and K2 lead location/task |
GF54.30-P-2015A | ||
| CAN databus function | GF54.00-P-0005HA |
