Disc Pad (Front) Replacement (With Single Piston Caliper): Notes
WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, depress the brake pedal a few times, rotate the wheel by hand, and verify that the brake does not drag.

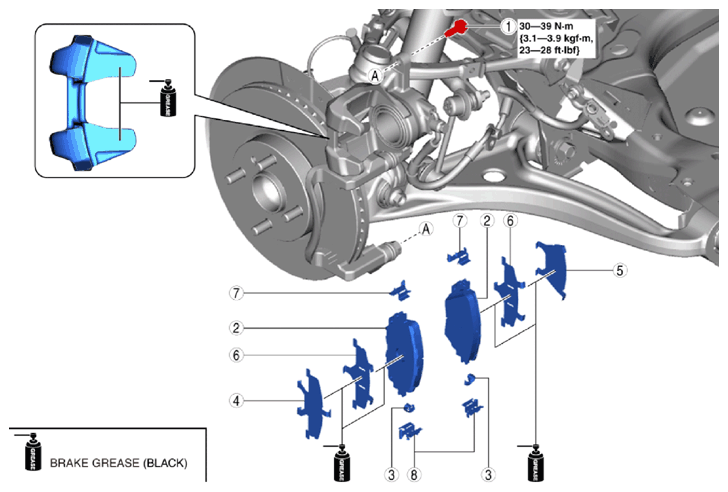

COMPONENT DESCRIPTION
| 1 | Caliper installation bolt (See Caliper Installation Bolt Removal Note .) (See Caliper Installation Bolt Installation Note .) |
| 2 | Disc pad (See Disc Pad Installation Note .) |
| 3 | Wear indicator |
| 4 | Outer Shim |
| 5 | Inner Shim |
| 6 | Base Shim |
| 7 | Guide plate (upper) (See Guide Plate Installation Note .) |
| 8 | Guide plate (lower) (See Guide Plate Installation Note .) |
