Guide Plate Installation Note

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply shock absorbing material to the position (between the guide plate and the mounting support) shown in the figure.

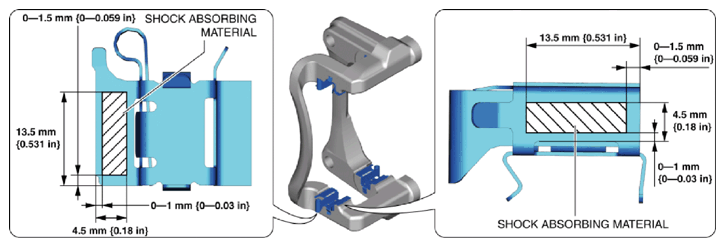

    Fig 1: Checking Guide Plate Installation Dimension
    G10952431Courtesy of MAZDA MOTORS CORP.
  2. Peel off the backing of the double-sided adhesive tape from the shock absorbing material.
  3. Install the guide plate to the mounting support.
  4. Apply shock absorbing material to all guide plates using the above procedure.
