Without Lane-Keep Assist System

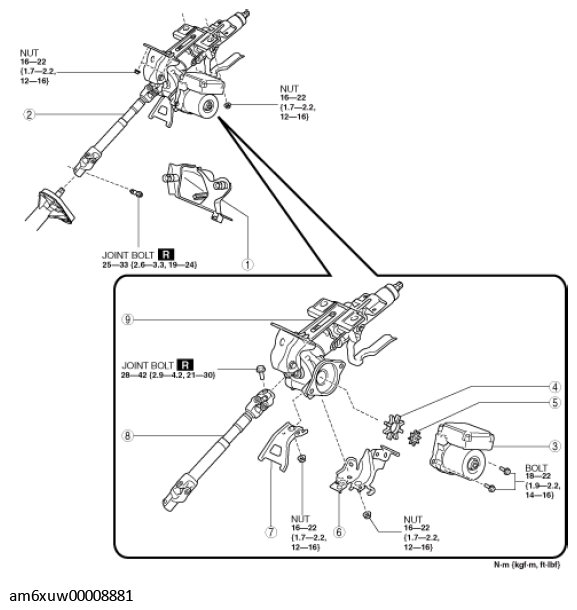

Fig 1: Steering Components Location With Torque Specifications (Without Lane-Keep Assist System)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Joint cover
2	Steering Column component (See Steering Column Component Removal Note .) (See Steering Column Component Installation Note .)
3	EPS CM (See EPS CM Removal Note .) (See Spacer, Rubber and EPS CM Installation Note .)
4	Rubber (See Spacer, Rubber and EPS CM Installation Note .)
5	Spacer (See Spacer, Rubber and EPS CM Installation Note .)
6	Harness bracket
7	Bracket (MTX vehicles) (See Bracket Installation Note .)
8	Intermediate shaft (See INTERMEDIATE SHAFT REMOVAL/INSTALLATION .)
9	Steering column
