EPS CM Removal Note

  1. Disconnect the torque sensor connector (EPS CM side).

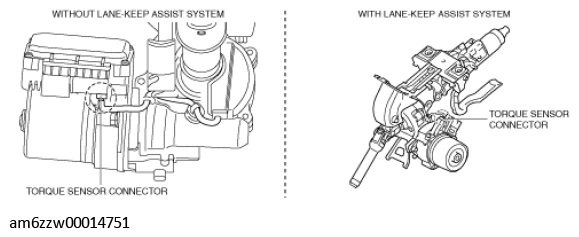

    Fig 1: Locating Torque Sensor Connector
    G11547481Courtesy of MAZDA MOTORS CORP.
  2. Remove the EPS CM.
WARNING:
  • Be careful not to let liquid or foreign material penetrate the EPS CM or the steering column because the motor area of the EPS CM may be damaged by liquid or foreign material.
