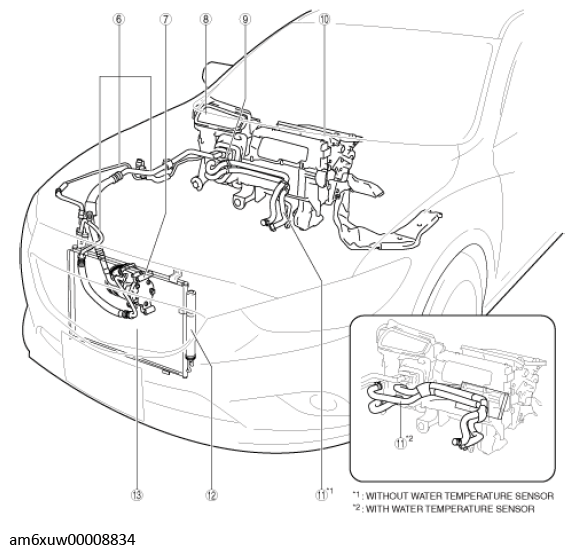

| 1 |
Front heat duct
(See FRONT HEAT DUCT REMOVAL/INSTALLATION .) |
| 2 |
Airflow mode main link
(See AIRFLOW MODE MAIN LINK REMOVAL/INSTALLATION .) |
| 3 |
Air filter
(See AIR FILTER REMOVAL/INSTALLATION .)
(See AIR FILTER INSPECTION .) |
| 4 |
Rear heat duct
(See REAR HEAT DUCT REMOVAL/INSTALLATION .) |
| 5 |
Rear vent duct (with rear vent)
(See REAR VENT DUCT REMOVAL/INSTALLATION .) |
| 6 |
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION .) |
| 7 |
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION .) |
| 8 |
Blower unit
(See BLOWER UNIT REMOVAL/INSTALLATION .)
(See BLOWER UNIT DISASSEMBLY/ASSEMBLY .) |
| 9 |
Expansion valve
(See EXPANSION VALVE REMOVAL/INSTALLATION .) |
| 10 |
A/C unit
(See A/C UNIT REMOVAL/INSTALLATION .)
(See A/C UNIT DISASSEMBLY/ASSEMBLY .)
(See EXPANSION VALVE REMOVAL/INSTALLATION .)
(See EVAPORATOR INSPECTION .)
(See HEATER CORE INSPECTION .) |
| 11 |
Heater hose
(See HEATER HOSE REMOVAL/INSTALLATION .) |
| 12 |
Receiver/drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION .) |
| 13 |
Condenser
(See CONDENSER REMOVAL/INSTALLATION .)
(See CONDENSER INSPECTION .) |
