Airflow Mode Sub Link

Disconnect the negative battery cable.
Remove the following parts:
1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
2. Front fender molding (See COWL GRILLE REMOVAL/INSTALLATION .)
3. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
4. Center cowl grille (See CENTER COWL GRILLE REMOVAL/INSTALLATION .)
5. Cowl panel (See COWL PANEL REMOVAL/INSTALLATION .)
6. Front doors (See FRONT DOOR REMOVAL/INSTALLATION .)
7. Sail garnish (See SAIL GARNISH REMOVAL/INSTALLATION .)
8. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
9. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
10. Center console box (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
11. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION .)
12. Center console (See CENTER CONSOLE REMOVAL/INSTALLATION .)
13. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
14. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
15. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
16. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
17. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
18. Shift lever component (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
19. Selector lever component (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
20. Side panel (See SIDE PANEL REMOVAL/INSTALLATION .)
21. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
22. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
23. Lower panel (passenger-side) (See LOWER PANEL REMOVAL/INSTALLATION .)
24. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
25. Lower panel (driver-side) (See LOWER PANEL REMOVAL/INSTALLATION .)
26. Knee bolster (See KNEE BOLSTER REMOVAL/INSTALLATION .)
27. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
28. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
29. Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
30. Combination switch (See COMBINATION SWITCH REMOVAL/INSTALLATION .)
31. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
32. Switch panel (See SWITCH PANEL REMOVAL/INSTALLATION .)
33. Information display (See INFORMATION DISPLAY REMOVAL/INSTALLATION .)
34. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .)
35. Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION .)
36. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
37. Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
38. Front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
39. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
40. Rear heat duct (1), (2) (See REAR HEAT DUCT REMOVAL/INSTALLATION .)

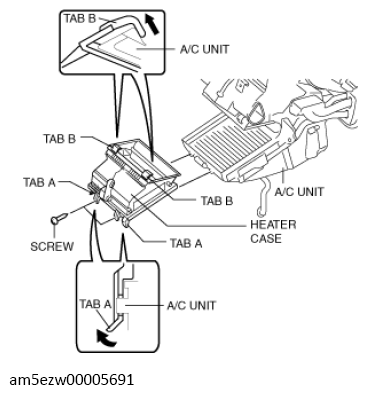

Remove the heater case.

Courtesy of MAZDA MOTORS CORP.
1. Remove the screws.
2. Pull up tab A in the direction shown by the arrow in the figure and remove it from the A/C unit.
3. Pull up tabs B in the direction shown by the arrow in the figure and remove it from the A/C unit.
Disconnect the following connectors: (See A/C UNIT REMOVAL/INSTALLATION .)
- Blower motor connector
- Power MOS FET connector
- Evaporator temperature sensor connector
- Air intake actuator connector
- Air mix actuator connector
- Airflow mode actuator connector
Disconnect the dashboard harness connectors.
Remove the dashboard. (See DASHBOARD REMOVAL/INSTALLATION .)
Remove the screw.

Courtesy of MAZDA MOTORS CORP.
Remove the airflow mode main link.

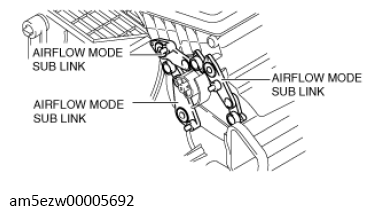

Remove the airflow mode sub link.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal. (See AIRFLOW MODE SUB LINK .)
