Liftgate Opener Switch Inspection

  1. Disconnect the negative battery cable.
  2. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Remove the liftgate opener switch. (See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION .)
  4. Verify the continuity of liftgate opener switch terminals A and B.

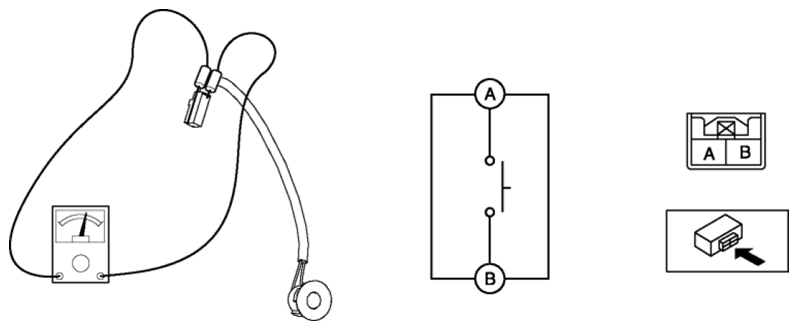

    Fig 1: Liftgate Opener Switch Circuit With Connector Terminal Identification
    G08108120
  5. Verify that the continuity is as indicated in the table.

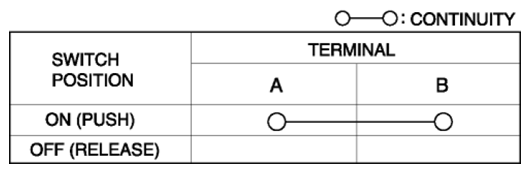

    Fig 2: Liftgate Opener Switch Continuity Chart
    G08108121
    • If not as indicated in the table, replace the liftgate opener switch.
