Liftgate Opener Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

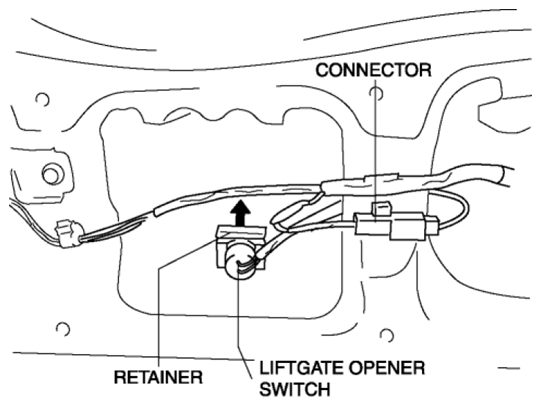

    Fig 1: Pulling Out Retainer From Liftgate Opener Switch
    G08108118
  4. Pull out the retainer in the direction of the arrow.
  5. Remove the liftgate opener switch.

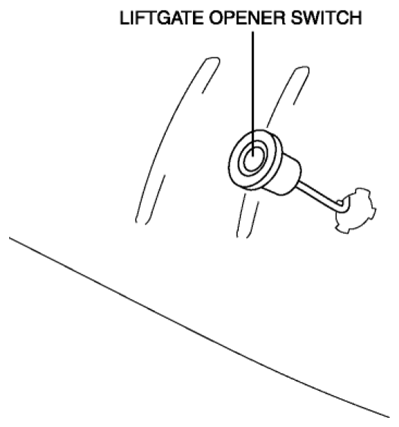

    Fig 2: Identifying Liftgate Opener Switch
    G08108119
  6. Install in the reverse order of removal.
