Headlight Leveling Actuator Removal/Installation: Notes

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the fasteners, then slightly bend back the front mudguard
  3. Remove in the order indicated in the table.

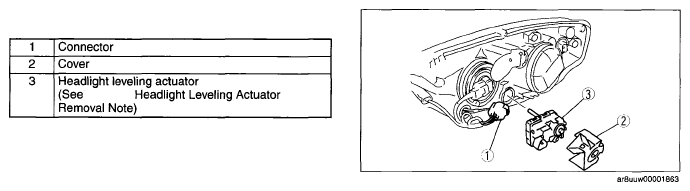

    Fig 1: Identifying Headlight Leveling Actuator, Cover And Connector
    G05986177Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
  5. Adjust the headlight aiming. (See HEADLIGHT AIMING .)
