Headlight Aiming
WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Point the headlight beams to a wall and verify that the headlight beams are as shown in the figure.
- Make a headlight adjustment screen as shown in the figure using double-weight, white paper.
- Adjust the tire pressure to the specification.
- Position the unloaded vehicle on a flat, level surface.
- Seat one person in the driver's seat.

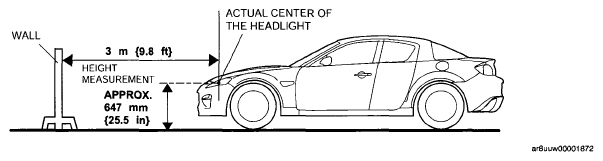

- Line up the front fog lights with the white screen at a distance of 3 m {9.8 ft} apart.
- Measure the height of the center of the headlight.
NOTE:
- Since the height of the vehicle varies depending on the vehicle situation, measure the height of the center of the headlight using the actual vehicle.

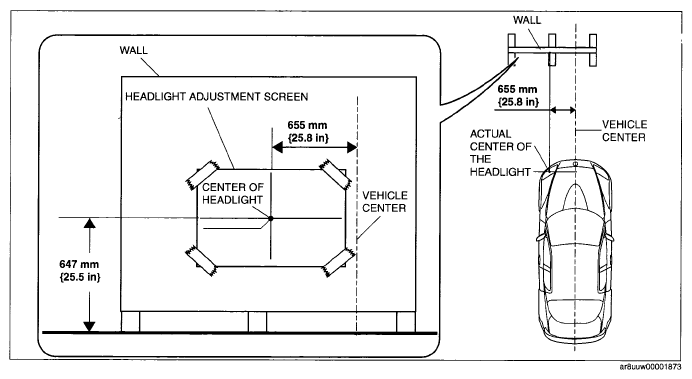

- Adjust the center of the adjustment screen to the point 655 mm {25.8 in}from the center of the vehicle and the measured height in the direction the headlight points, then affix the screen to the wall.
- Start the engine and charge the battery.
- Turn on the headlight low beams.
- Block the light of the headlight which is not adjusted.

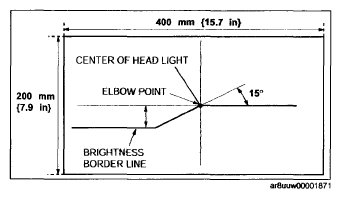

- Verify that the elbow point of the headlight is at the position indicated by the adjustment screen.
- If the elbow point of the head light is not positioned as indicated in the adjustment screen, align the elbow point so that it is positioned as shown in the adjustment screen by turning the adjustment screw.
