Front Fog Light Switch Inspection

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  2. Remove the ignition key illumination. (Vehicles with keyless entry system) (See IGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION .)
  3. Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION .)
  4. Verify that the continuity between the light switch terminals is as indicated in the table.
    • If not as indicated in the table, replace the light switch.

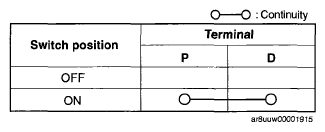

    Fig 1: Front Fog Light Switch Continuity Chart
    G05986218Courtesy of MAZDA MOTORS CORP.

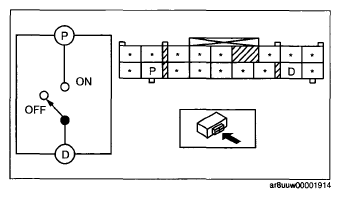

    Fig 2: Identifying Front Fog Light Switch Connector
    G05986219Courtesy of MAZDA MOTORS CORP.
