Light Switch Removal/Installation

WARNING: This page is about a different car, the 2010 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Remove the ignition key illumination. (Vehicles with keyless entry system) (See IGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION .)
  4. Disconnect the connector.
  5. Remove the screws and then remove the light switch.
  6. Install in the reverse order of removal.

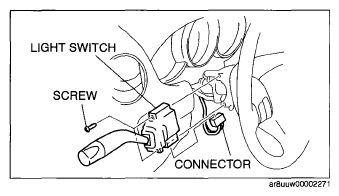

Fig 1: Identifying Light Switch And Connector
G05986209Courtesy of MAZDA MOTORS CORP.
