Front Door Latch And Lock Actuator Removal/Installation: Notes

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] .)
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    4. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    5. Front inner handle (See FRONT INNER HANDLE REMOVAL/INSTALLATION .)
    6. Front door module (See FRONT DOOR MODULE REMOVAL/INSTALLATION .)
  4. Remove in the order indicated in the table.

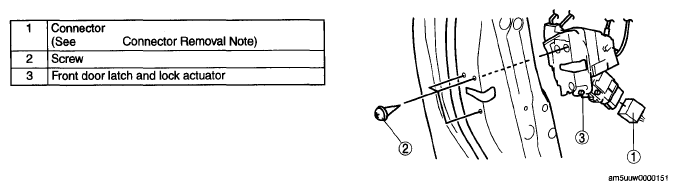

    Fig 1: Identifying Front Door Latch And Lock Actuator Remove / Install Components
    G05543478Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
