Front Door Module Removal/Installation

WARNING: This page is about a different car, the 2008 Mazda 5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3] .)
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door speaker (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    5. Inner handle (See FRONT INNER HANDLE REMOVAL/INSTALLATION .)
  4. Disconnect the power outer mirror connector.
  5. Disconnect the front door wiring harness connector. (See FRONT DOOR REMOVAL/INSTALLATION .)
  6. Remove the tab, then remove the front door wiring harness bracket.

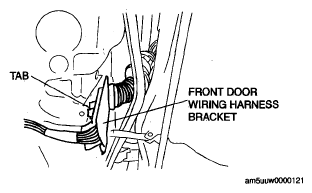

    Fig 1: Identifying Front Door Wiring Harness Bracket And TAB
    G05545646Courtesy of MAZDA MOTORS CORP.
  7. Remove screws A and the fastener.
  8. Remove the front door module.
  9. Install in the reverse order of removal.
    Fig 2: Identifying Front Door Module And Screw
    G05545647Courtesy of MAZDA MOTORS CORP.
