Heater Glow Plug: Installation

  1. INSTALL WATER BY-PASS GLOW PLUG
    1. Install the water by-pass glow plug.

      Torque: 15 N*m (157 kgf*cm, 11 ft.*lbf)

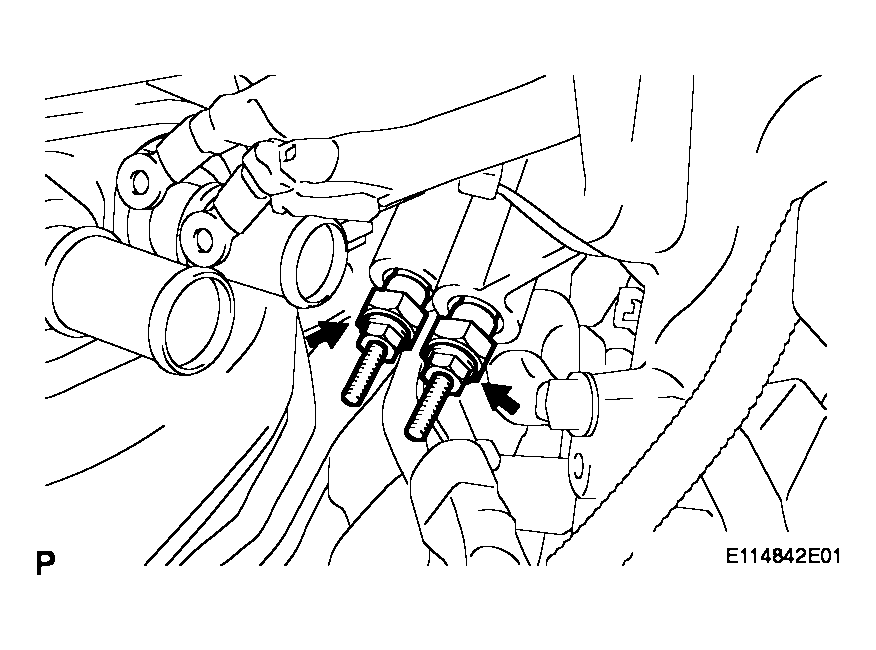

      Fig 1: Identifying Water By-Pass Glow Plug
      G04048529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the heater blower wire with the 2 nuts and 2 grommets.

      Torque: 2.7 N*m (28 kgf*cm, 24 in.*lbf)

  2. INSTALL HEATER WATER INLET HOSE (See  INSTALLATION   )
  3. INSTALL HEATER WATER OUTLET HOSE (See  INSTALLATION   )
  4. ADD ENGINE COOLANT (See  COOLANT  )
  5. CHECK FOR ENGINE COOLANT LEAKS (See  ON-VEHICLE INSPECTION  )

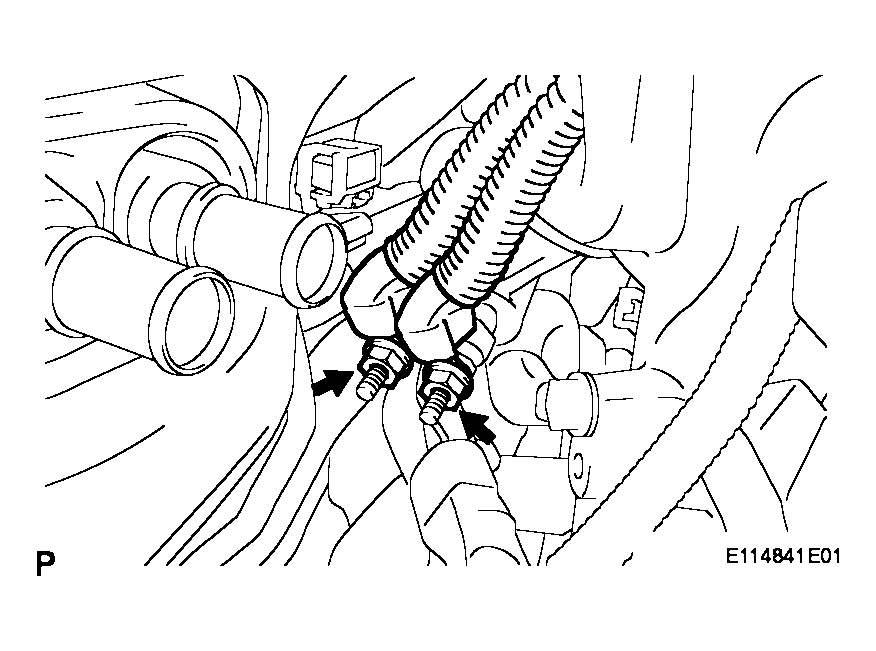

Fig 2: Identifying Heater Blower Wire And Nuts
G04048530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
