Monitor DTC status
- Connect KDS to Data Link Connector (DLC).
- Ignition "ON".

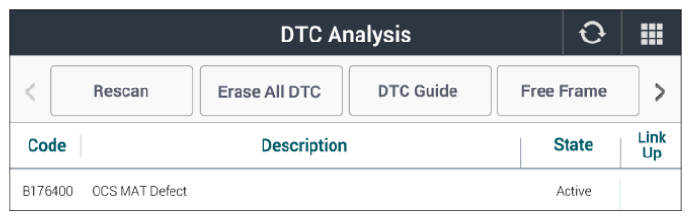

- Monitor "Diagnostic Trouble Codes(DTC)" with KDS.
- Is DTC status displayed as present?
YES
- Go to "MONITOR KDS DATA " procedure.
NO
- Go to "VERIFICATION OF REPAIR " procedure.
